Power Window SUBSWITCH Inspection

1. Inspect for continuity between the power window subswitch terminals.
   • If not as specified, replace the power window subswitch.

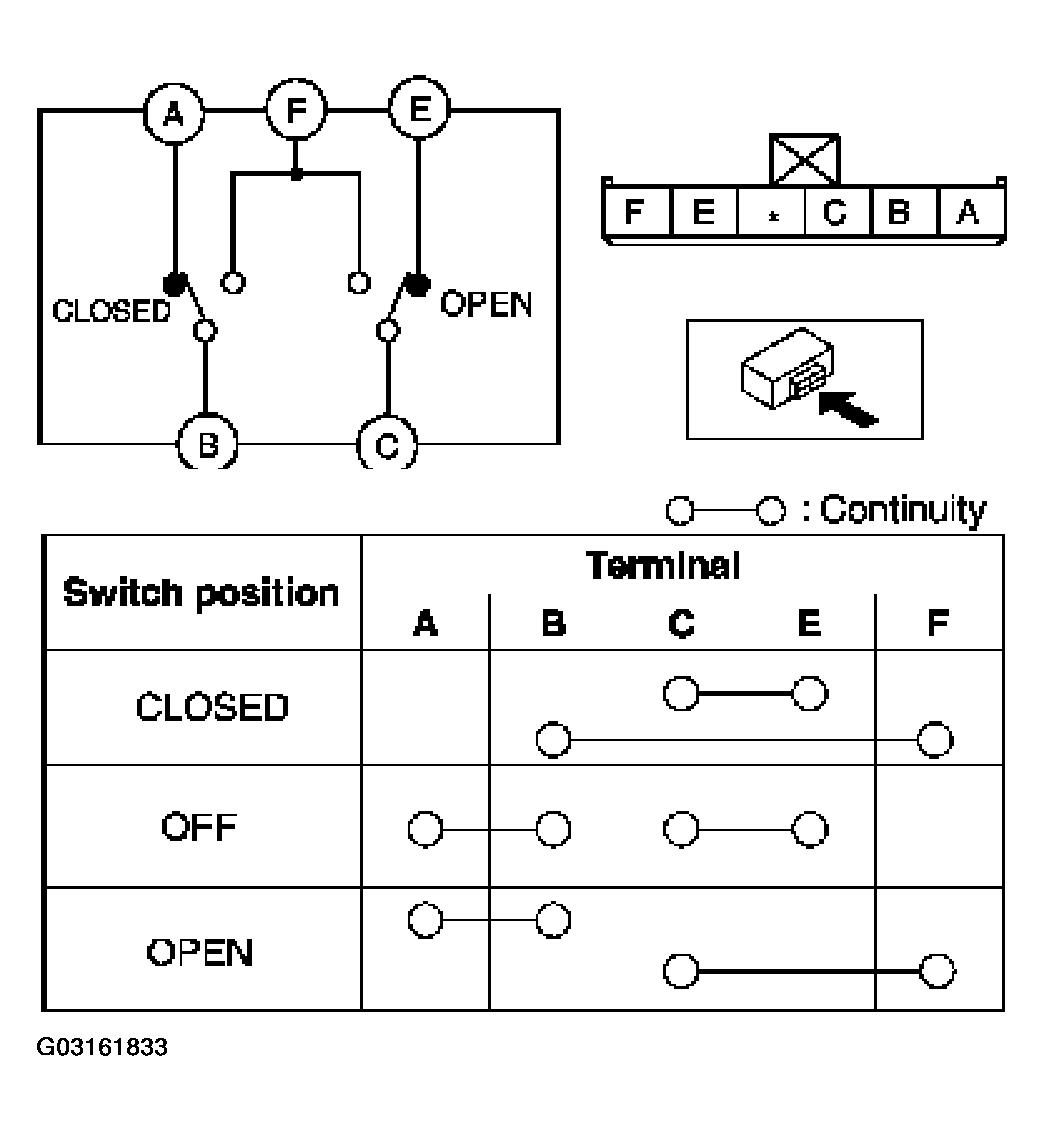

Fig 1: Identifying Power Window Subswitch Positions/Terminals Continuity Specifications

Courtesy of MAZDA MOTORS CORP.
