Accelerator Pedal Position (App) Sensor Inspection: Specification

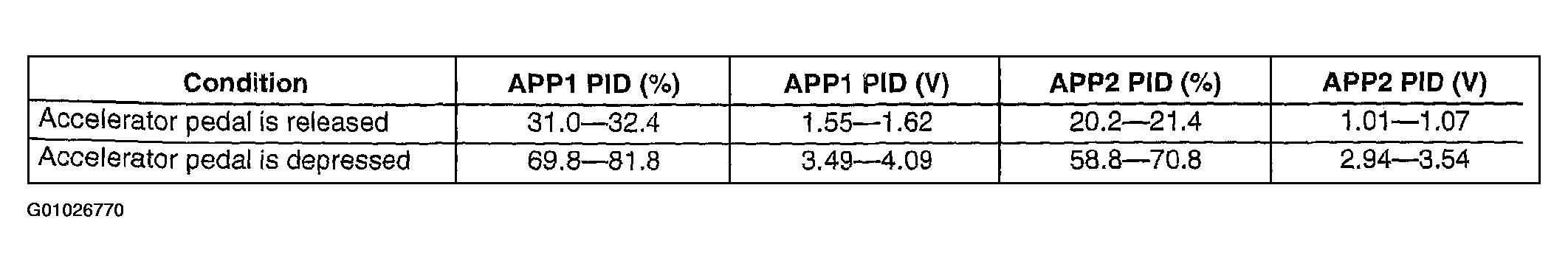

Fig 1: APP1 Or APP2 Sensor Specifications
G01026770Courtesy of MAZDA MOTORS CORP.
