Engine Control System (AJ)
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
CMP Sensor Signal
›
Vehicle Condition
Vehicle Condition
Idle after warm up (no load)

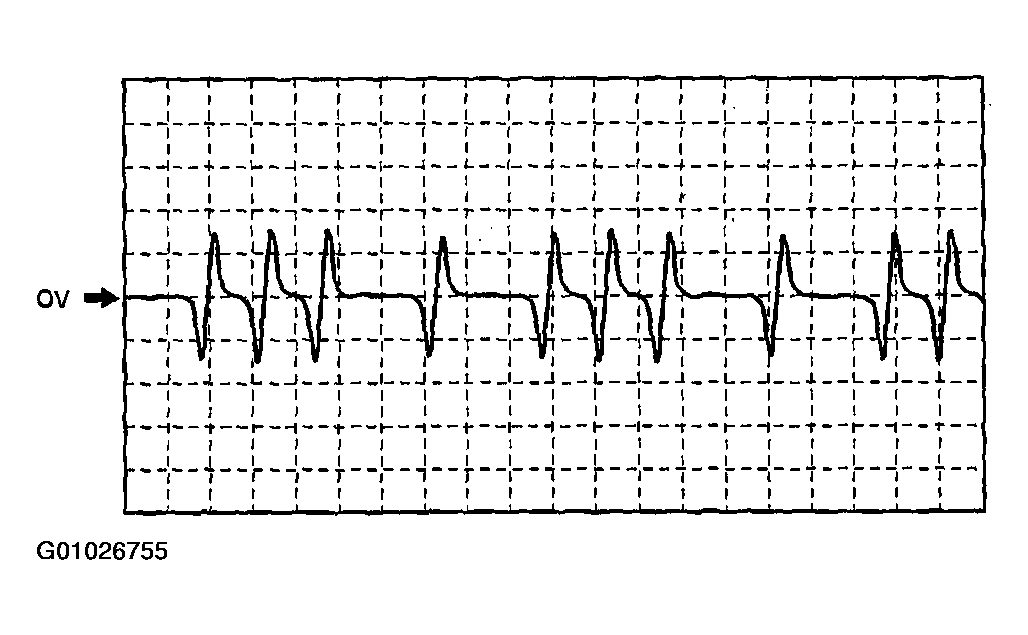

Fig 1: Inspecting CMP Sensor Signal Using Oscilloscope (+)
Courtesy of MAZDA MOTORS CORP.
Idle after warm up (no load)

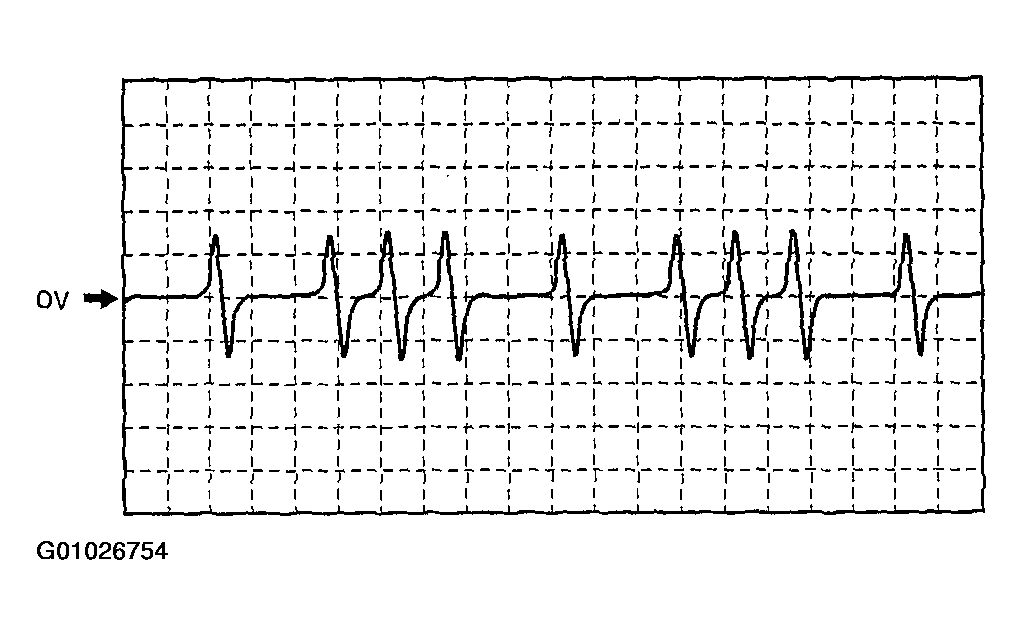

Fig 1: Inspecting CMP Sensor Signal Using Oscilloscope (-)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
