Mazda
›
2004
›
6 s, 4D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
On-Board Diagnostic [Engine Control System AJ)
›
DTC P0125: Excessive Time To Enter Closed Loop Fuel Control
›
Diagnostic Procedure
Diagnostic Procedure

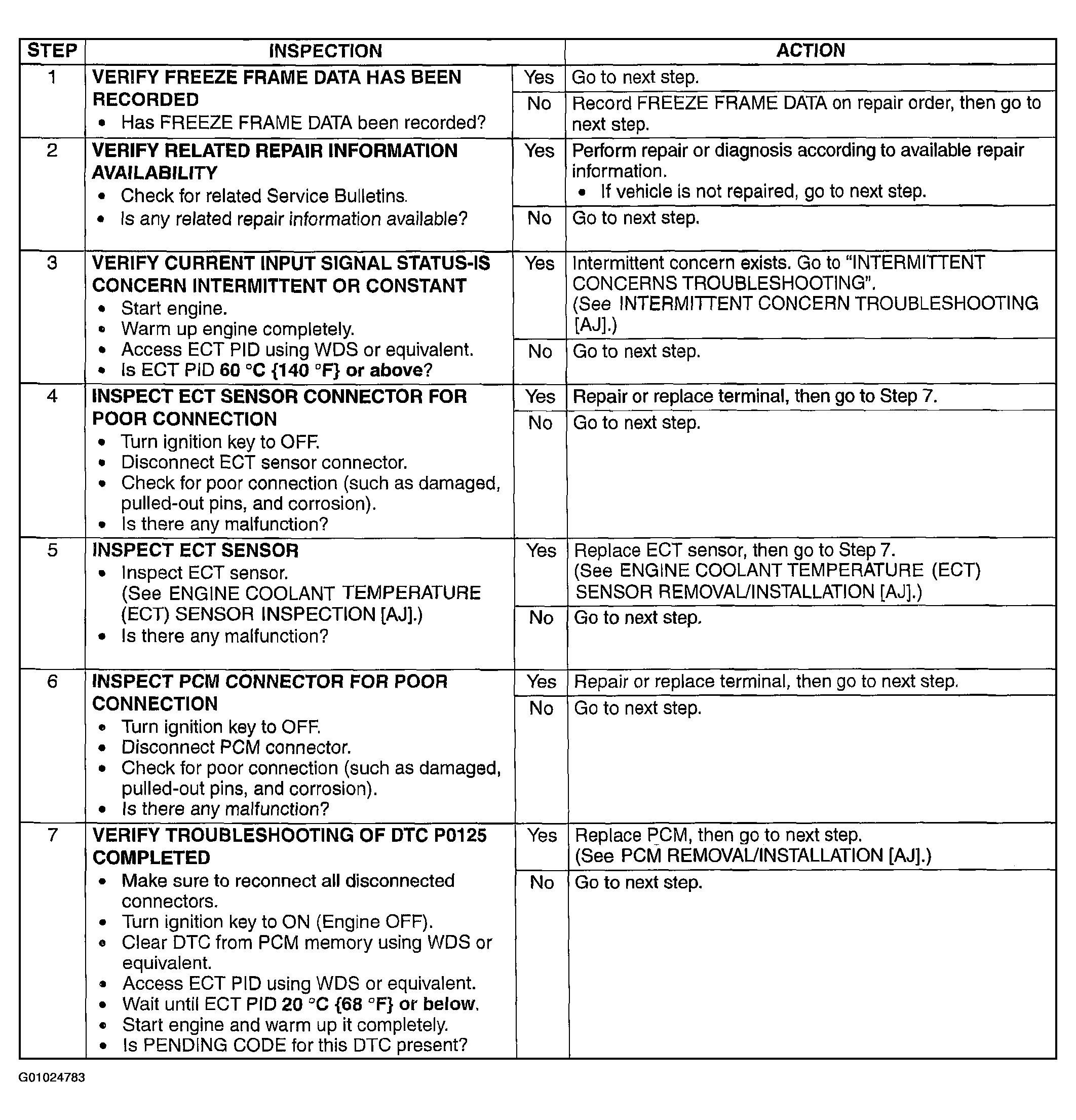

Fig 1: DTC P0125: Diagnostic Procedure Chart (Step 1-7)
Courtesy of MAZDA MOTORS CORP.

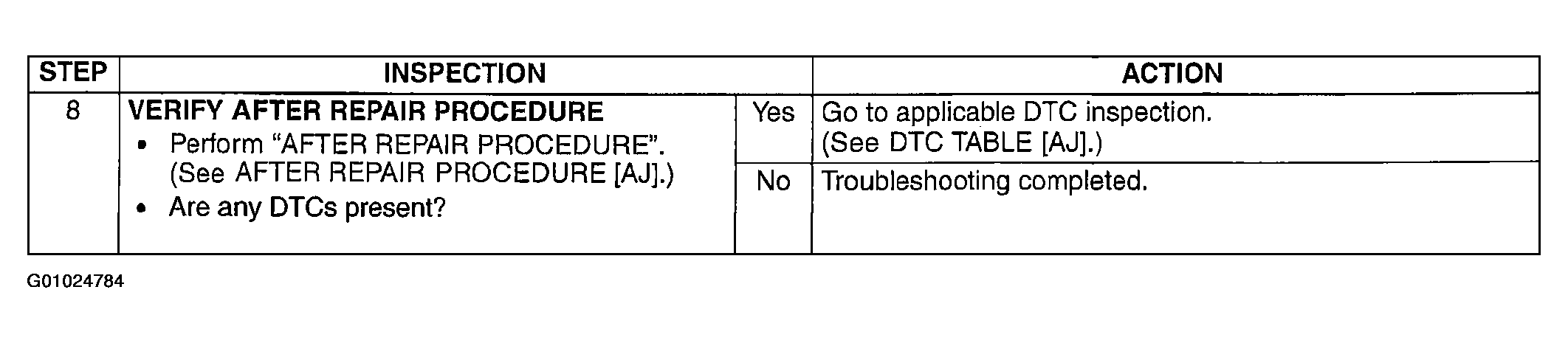

Fig 2: DTC P0125: Diagnostic Procedure Chart (Step 8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
