On-Board Diagnostic [Engine Control System AJ)
›
DTC P0300: Random Misfire Detected
›
Diagnostic Procedure
Diagnostic Procedure

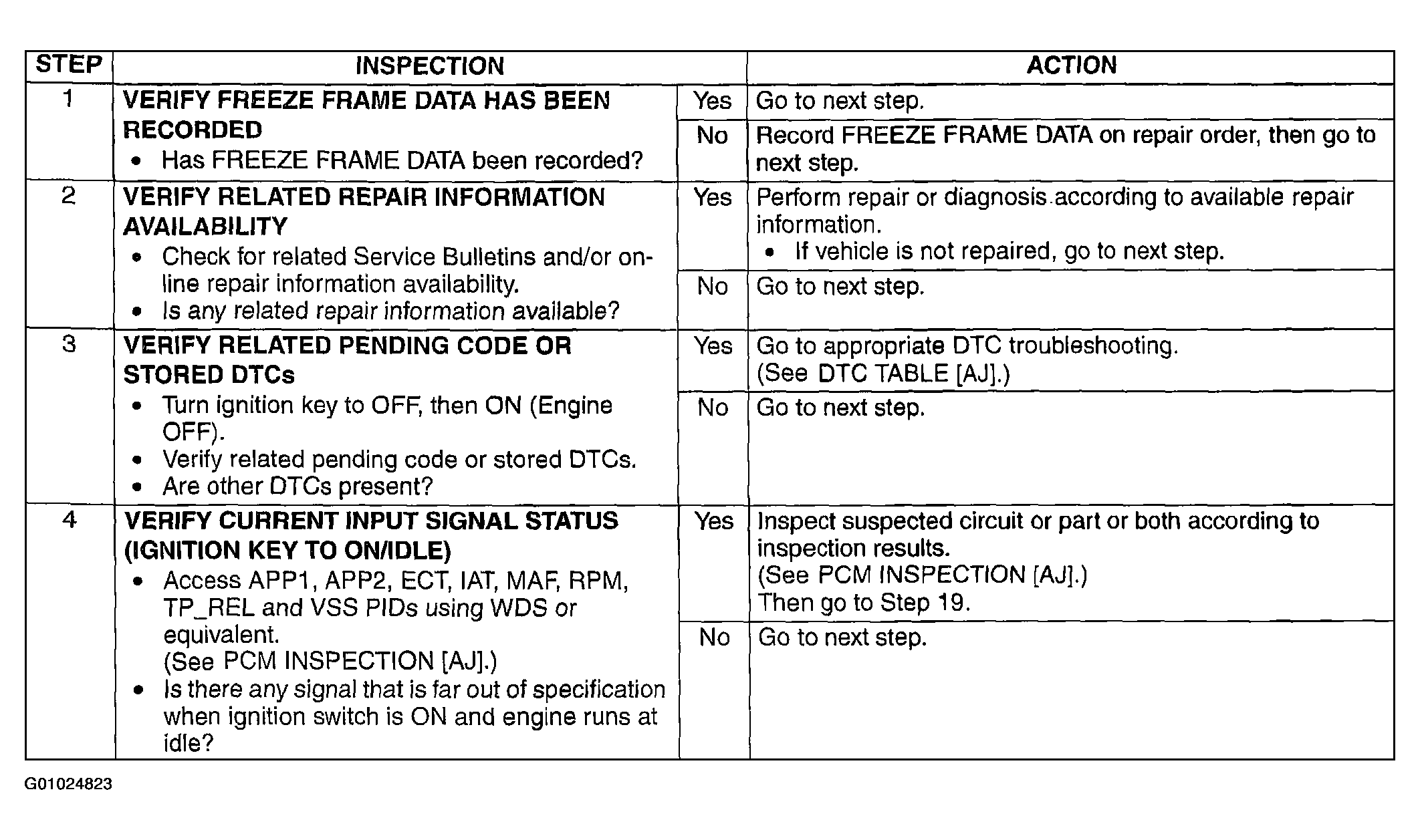

Fig 1: DTC P0300: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

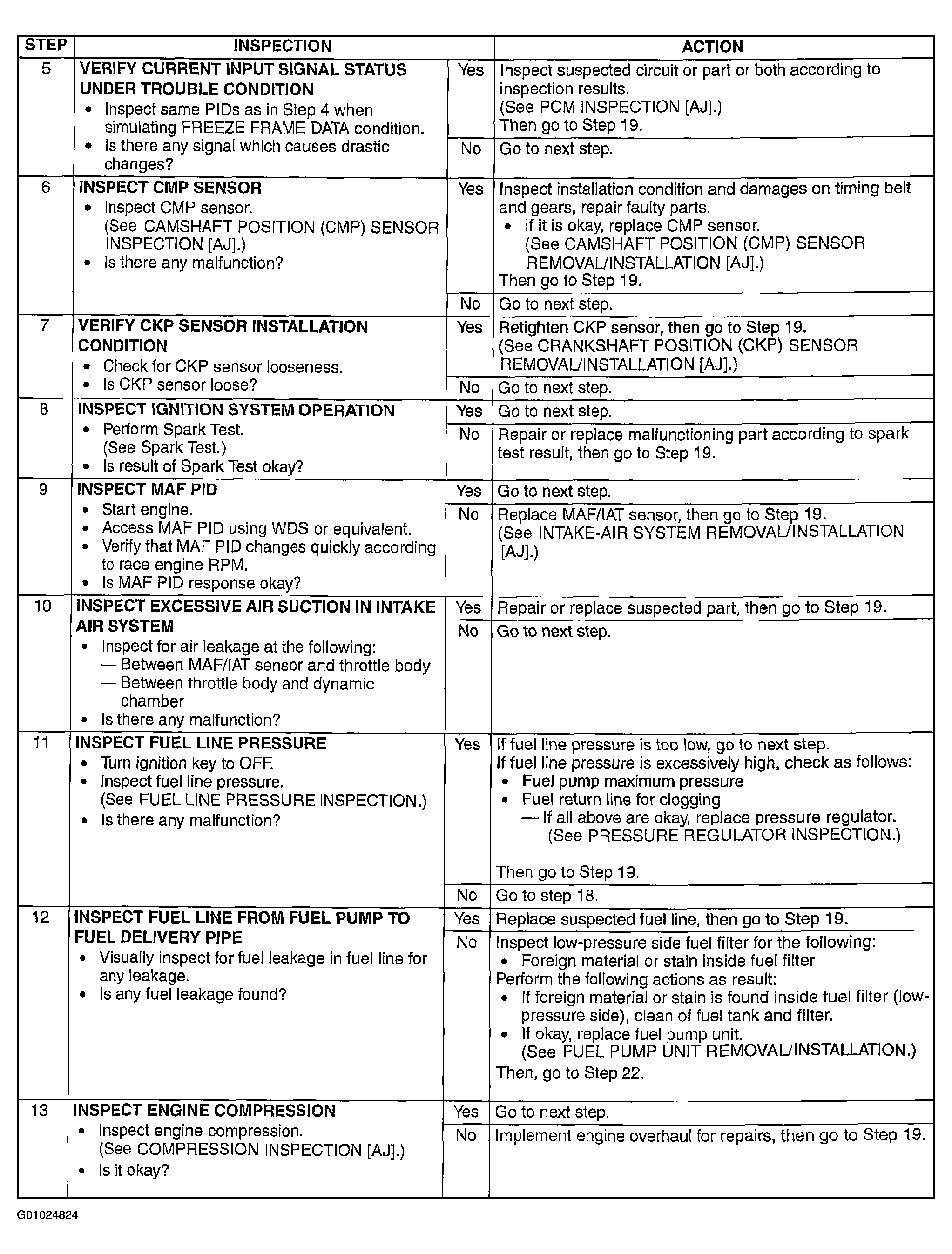

Fig 2: DTC P0300: Diagnostic Procedure Chart (Steps 5-13)
Courtesy of MAZDA MOTORS CORP.

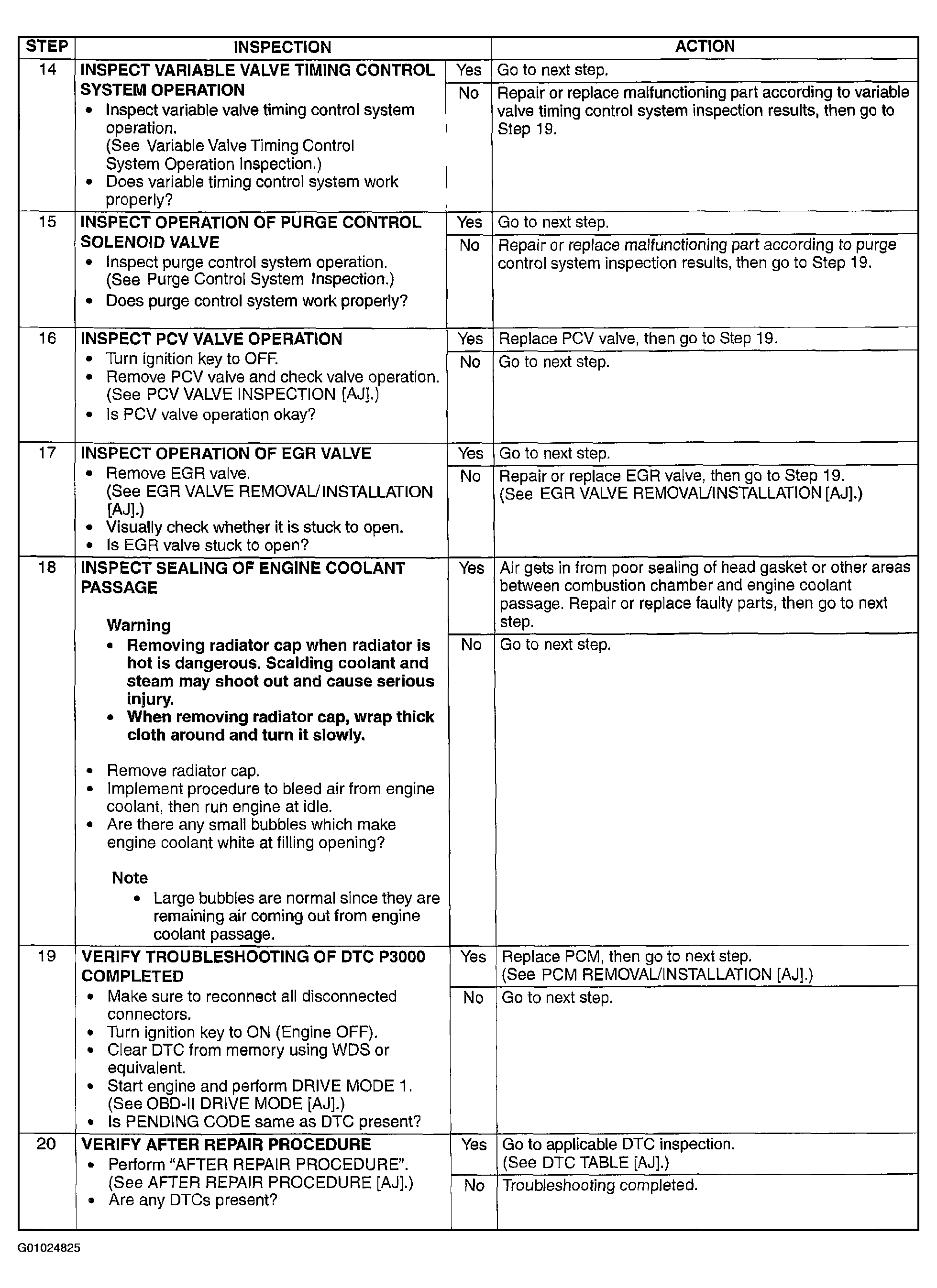

Fig 3: DTC P0300: Diagnostic Procedure Chart (Steps 14-20)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
