Diagnostic Procedure

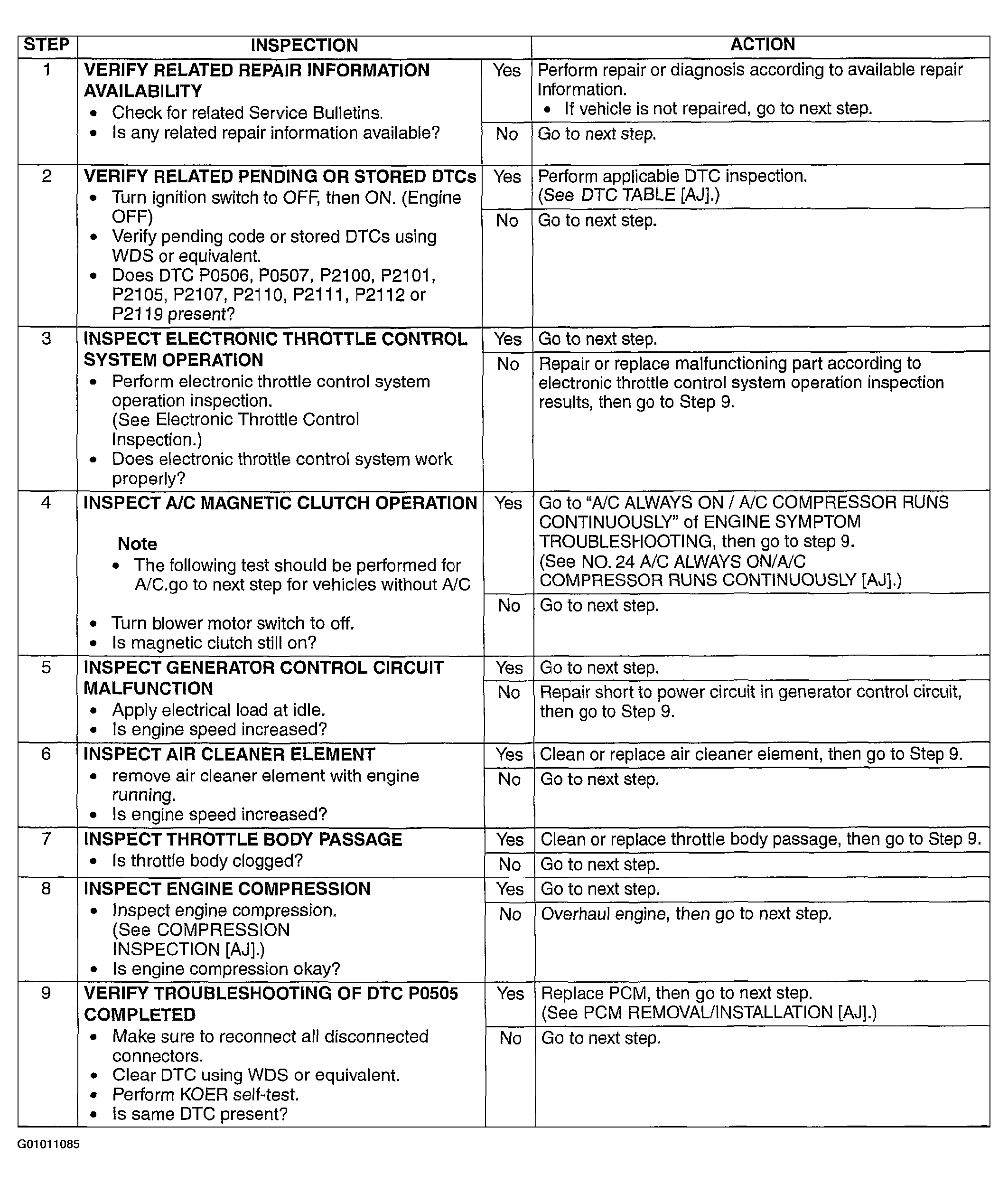

Fig 1: DTC P0505: Diagnostic Procedure Chart (Steps 1-9)
G01011085Courtesy of MAZDA MOTORS CORP.

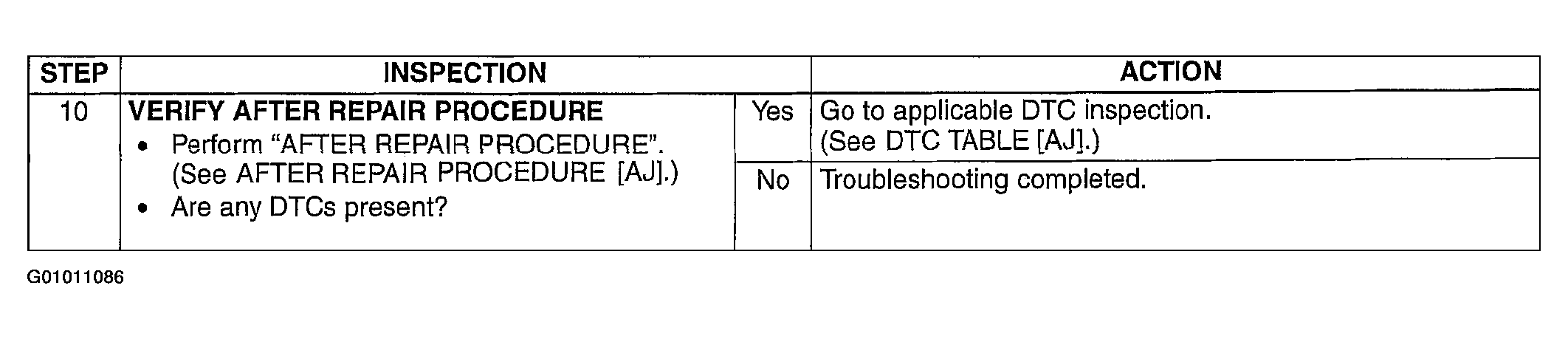

Fig 2: DTC P0505: Diagnostic Procedure Chart (Step 10)
G01011086Courtesy of MAZDA MOTORS CORP.
