DTC P1410: VAD Control System Circuit Malfunction
›
Diagnostic Procedure
Diagnostic Procedure
Fig 1: DTC P1410 Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

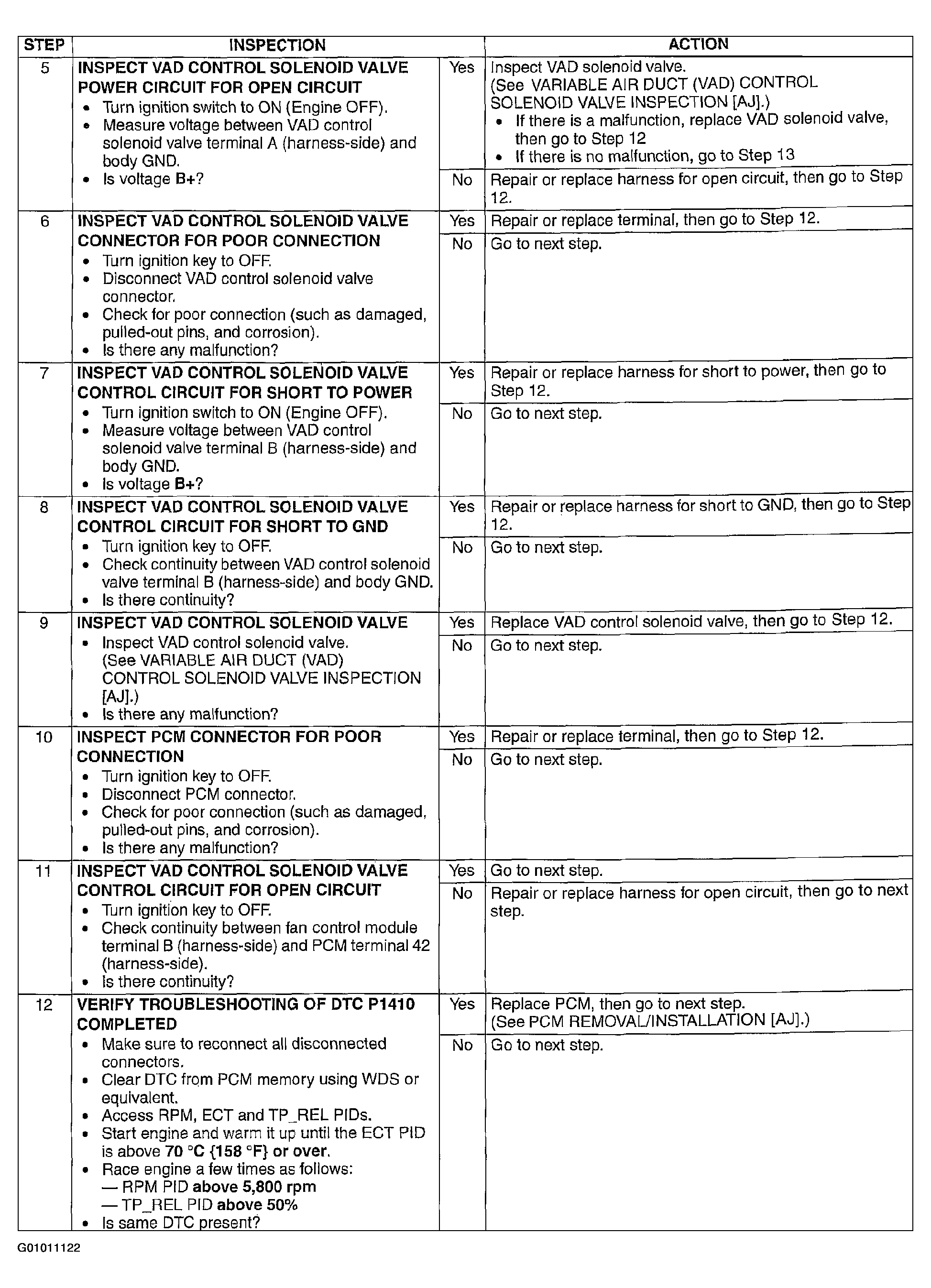

Fig 2: DTC P1410: Diagnostic Procedure Chart (Steps 5-12)
Courtesy of MAZDA MOTORS CORP.

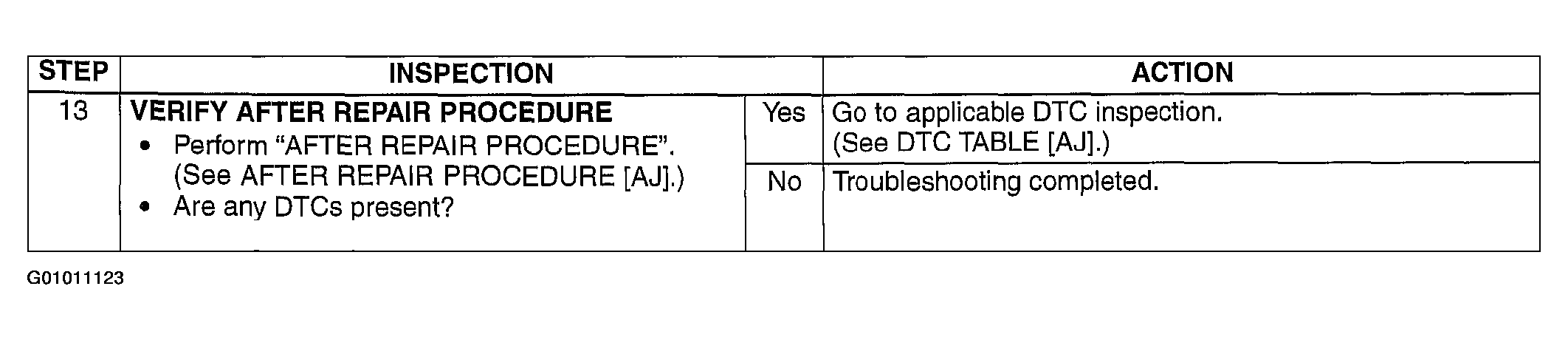

Fig 3: DTC P1410: Diagnostic Procedure Chart (Step 13)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
