DTC P2228: EGR Boost Sensor Circuit Low Input
›
Diagnostic Procedure
Diagnostic Procedure

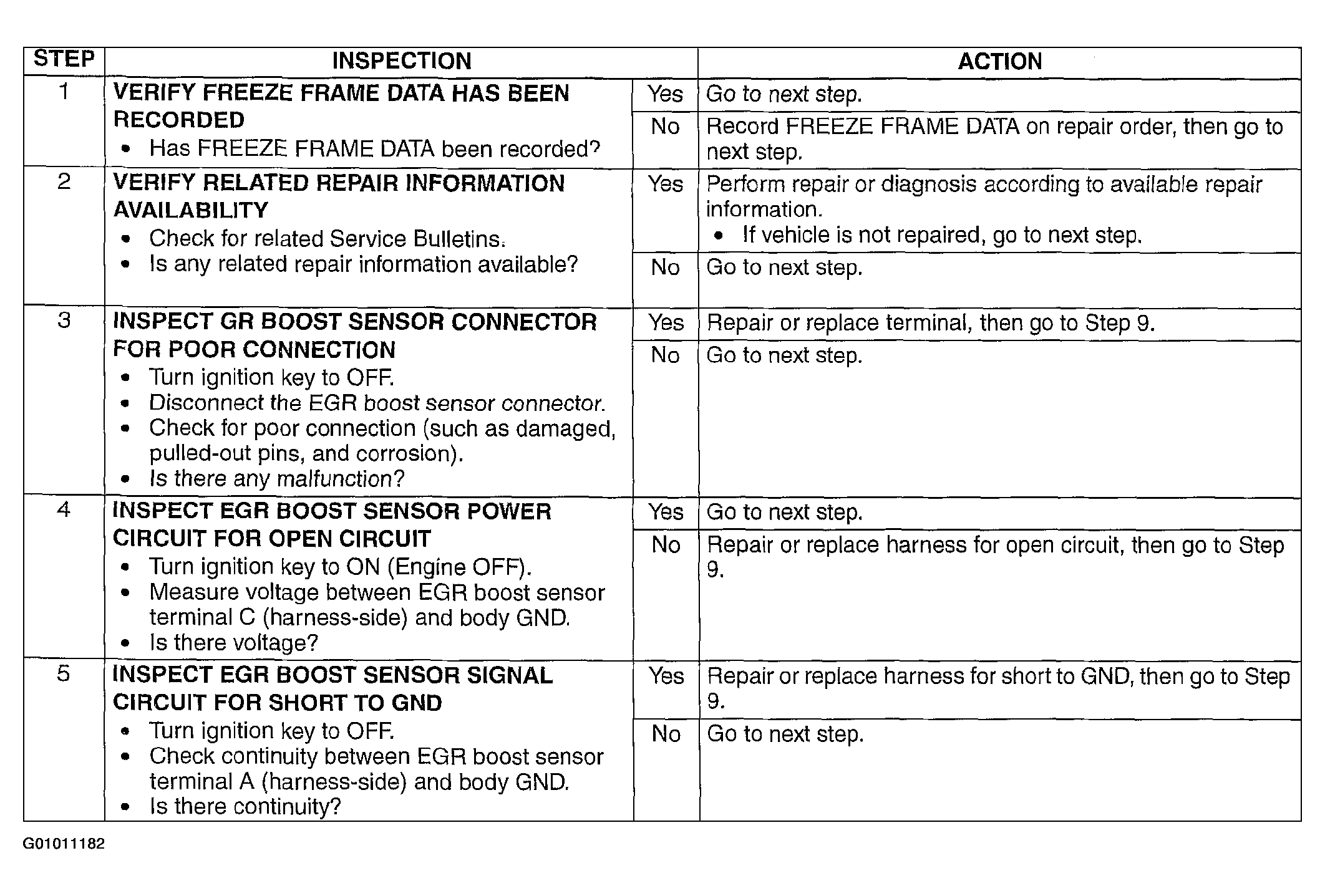

Fig 1: DTC P2228: Diagnostic Procedure Chart (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

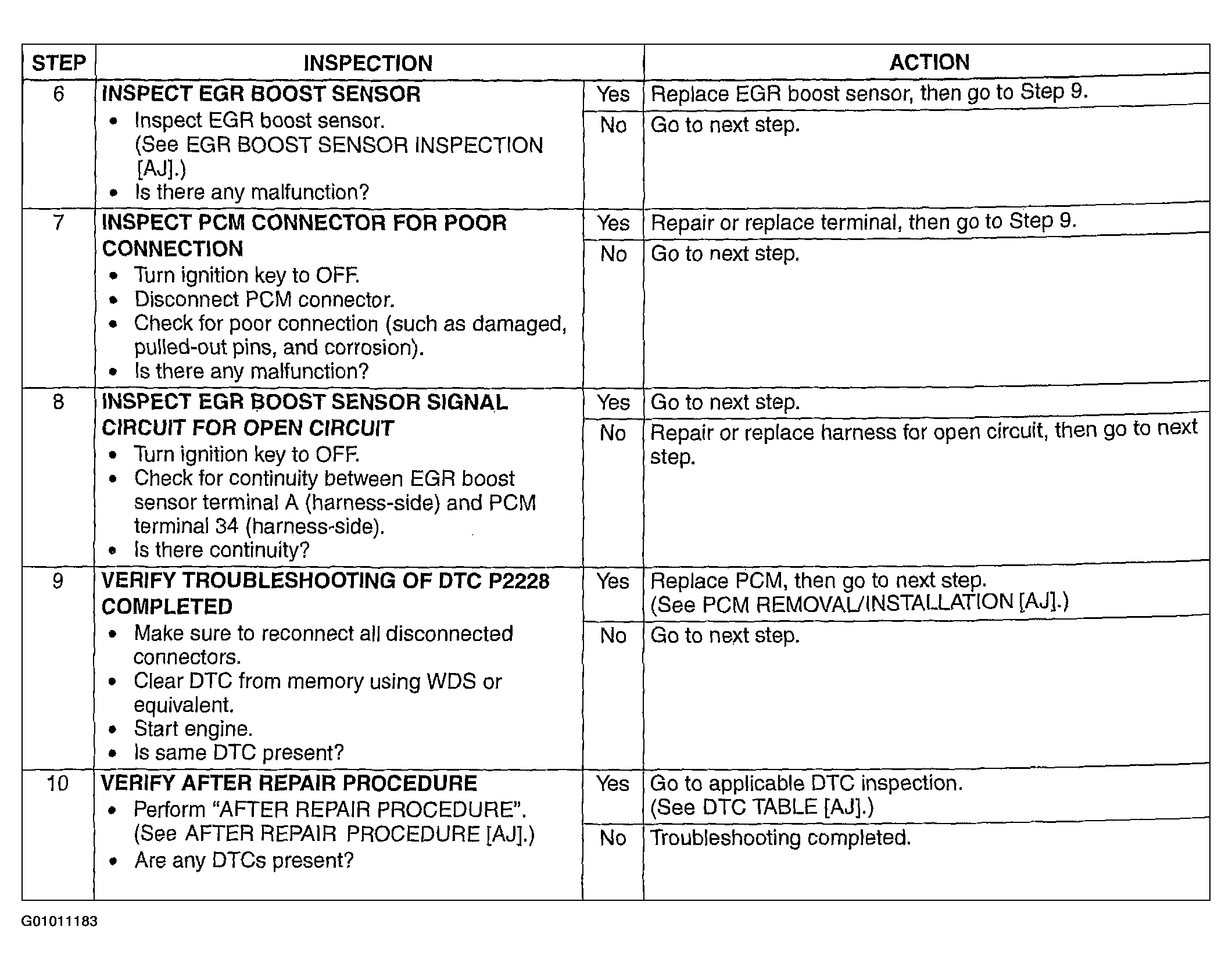

Fig 2: DTC P2228: Diagnostic Procedure Chart (Steps 6-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
