DTC P2229: EGR Boost Sensor Circuit High Input
›
Diagnostic Procedure
Diagnostic Procedure

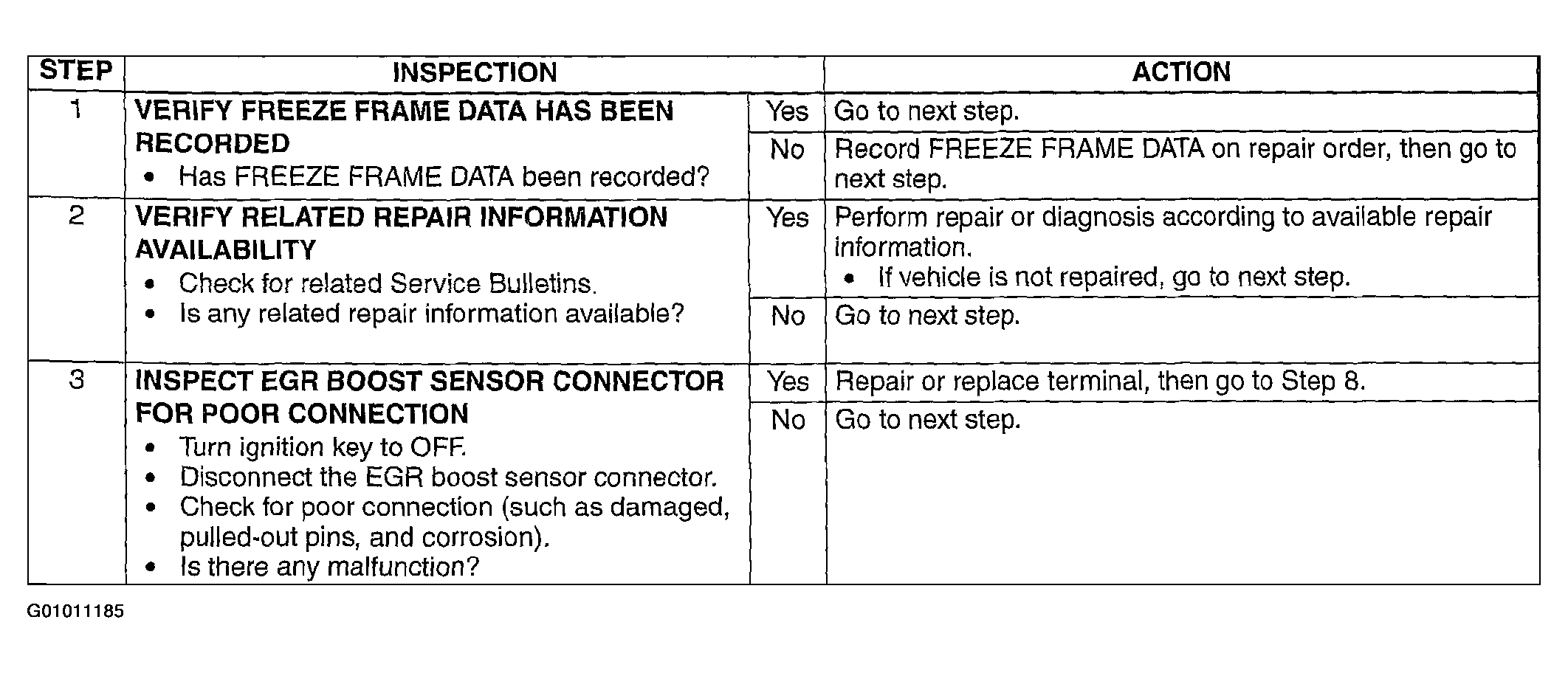

Fig 1: DTC P2229: Diagnostic Procedure Chart (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

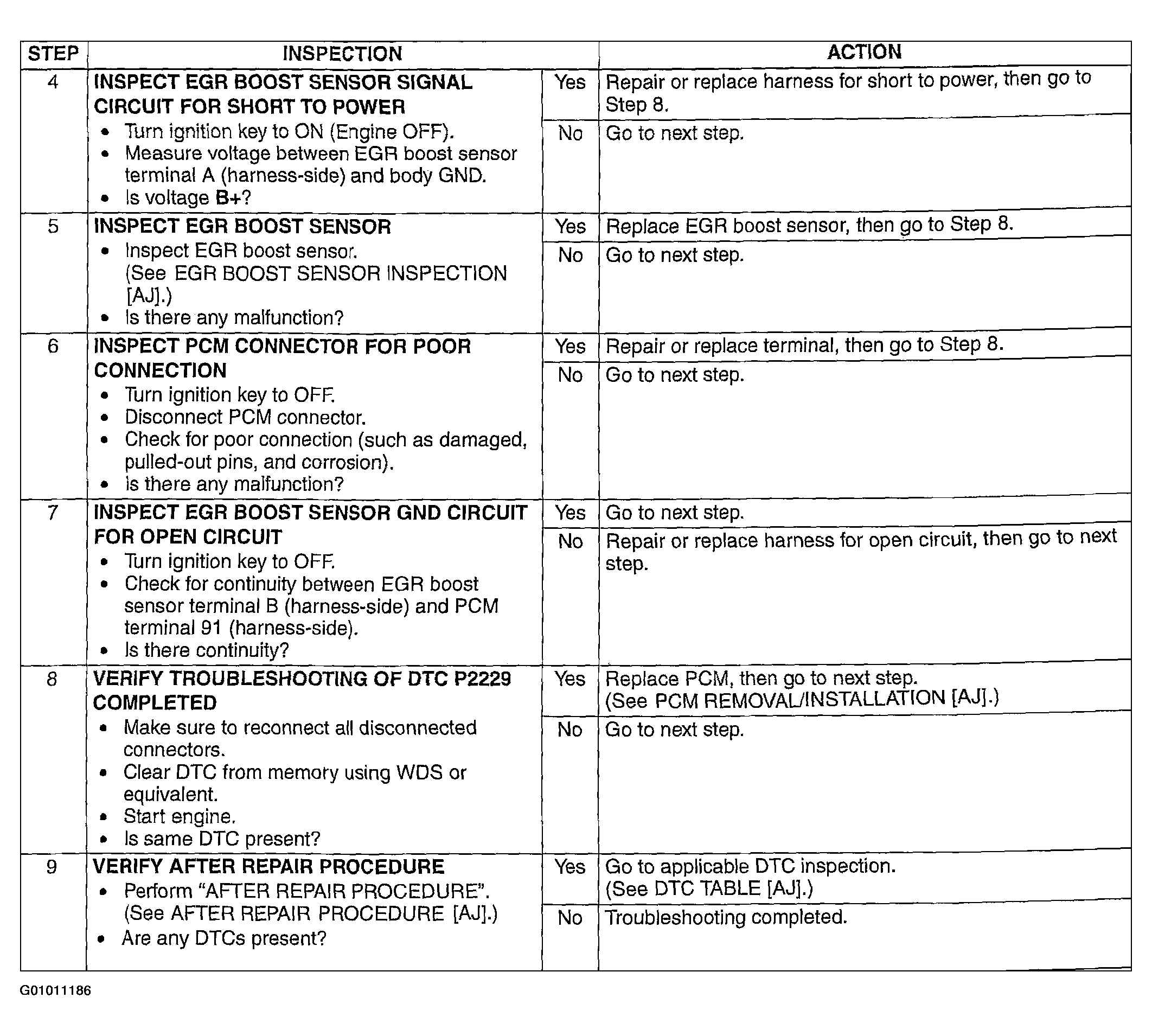

Fig 2: DTC P2229: Diagnostic Procedure Chart (Steps 4-9)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
