DTC P2401: EVAP System Leak Detection Pump Control Circuit Low
›
Diagnostic Procedure
Diagnostic Procedure

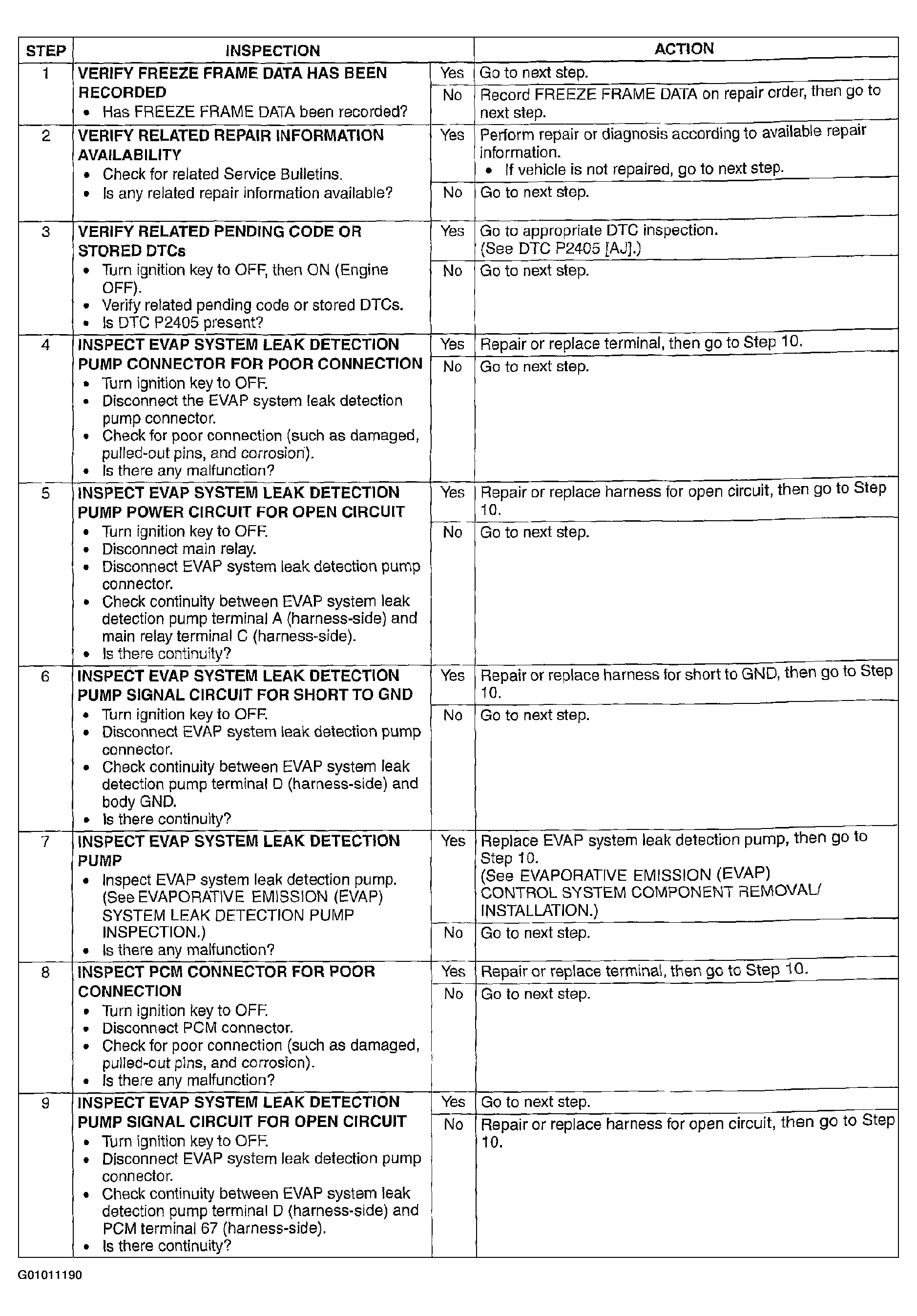

Fig 1: DTC P2401: Diagnostic Procedure Chart (Steps 1-9)
Courtesy of MAZDA MOTORS CORP.

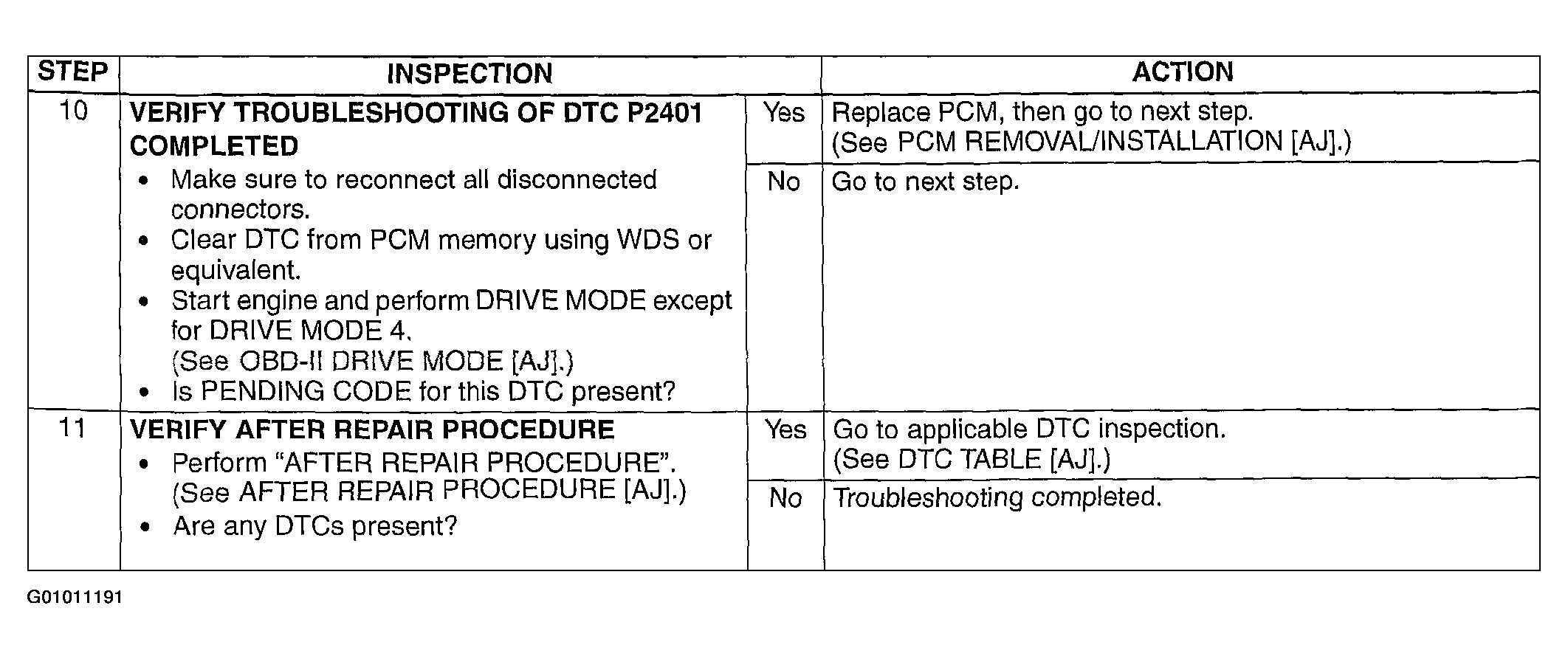

Fig 2: DTC P2401: Diagnostic Procedure Chart (Steps 10-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
