DTC P2402: EVAP System Leak Detection Pump Control Circuit High
›
Diagnostic Procedure
Diagnostic Procedure

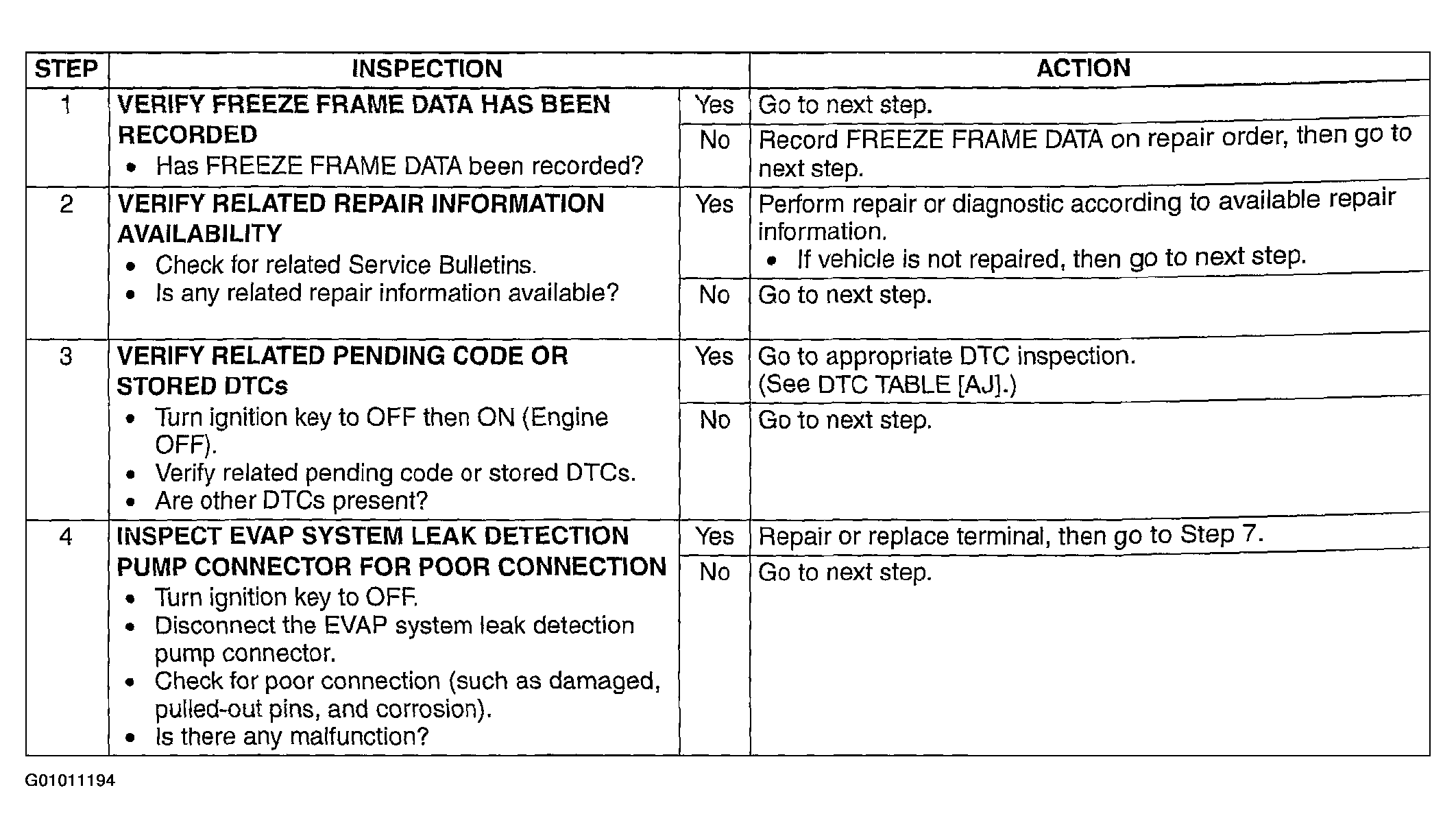

Fig 1: DTC P2402: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

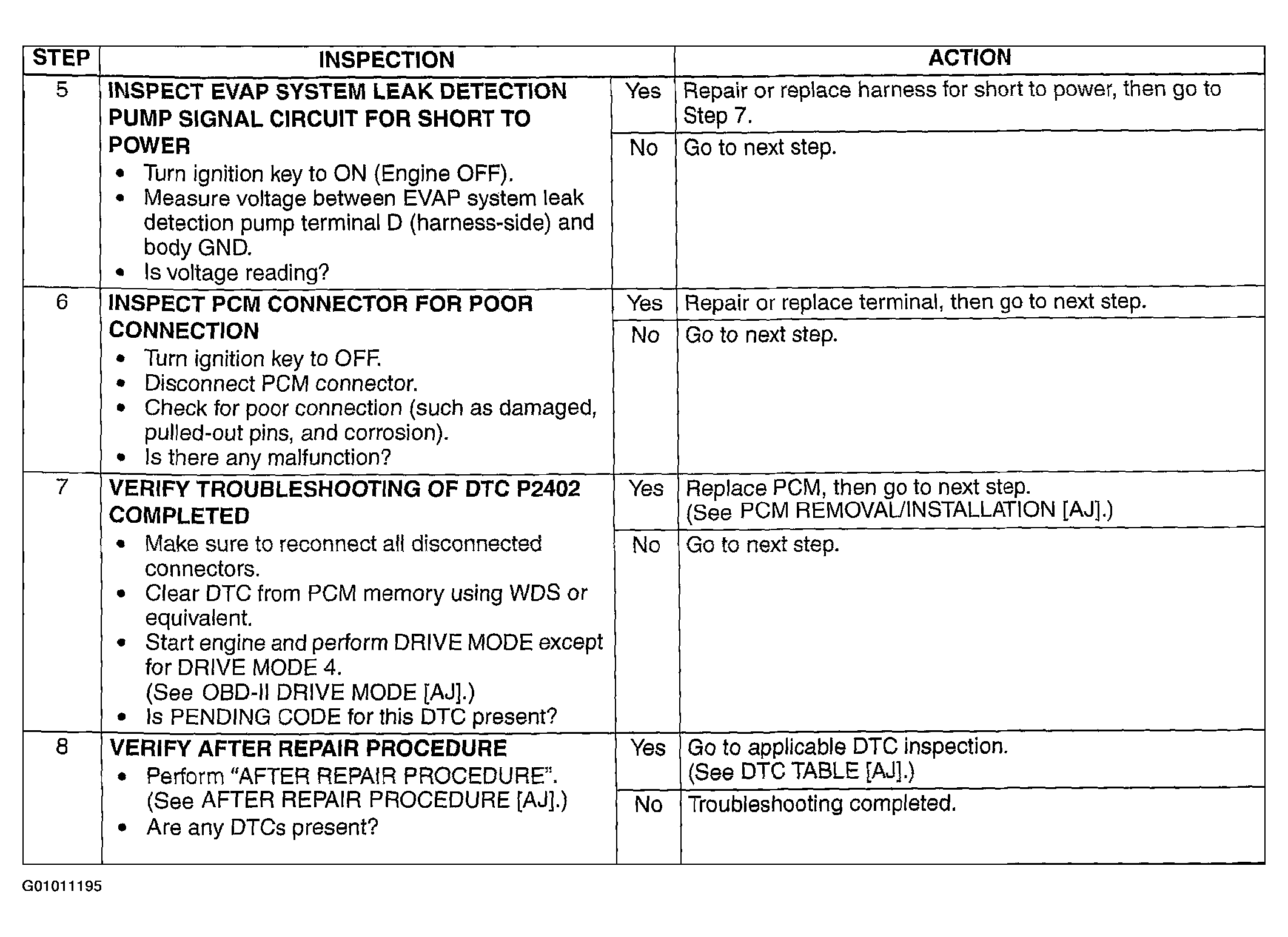

Fig 2: DTC P2402: Diagnostic Procedure Chart (Steps 5-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
