Symptom Troubleshooting [Engine Control System (AJ)
›
No.17 Cooling System Concerns-Overheating
›
Diagnostic procedure
Diagnostic procedure

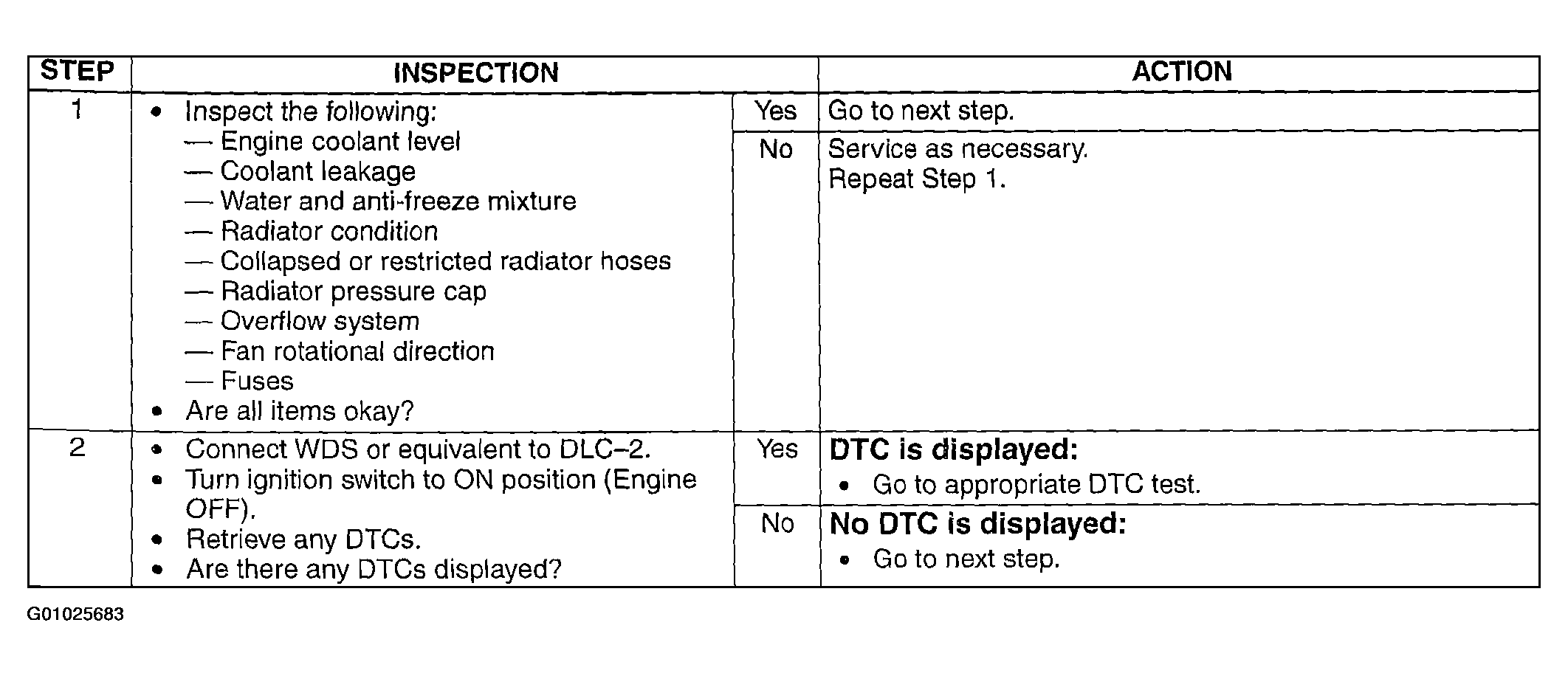

Fig 1: Symptom No.17 Cooling System Concerns-Overheating - Diagnostic Procedure (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

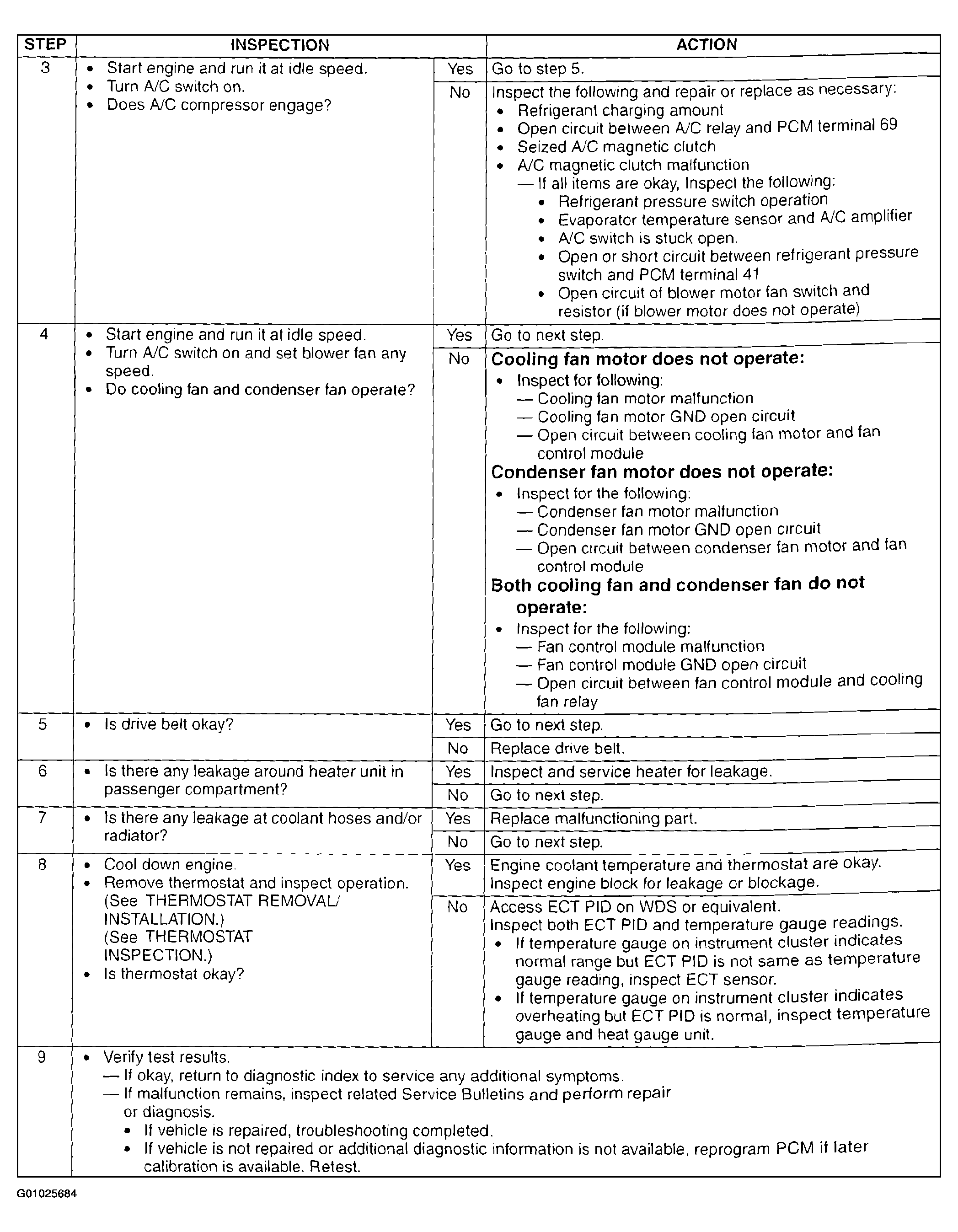

Fig 2: Symptom No.17 Cooling System Concerns-Overheating - Diagnostic Procedure (Steps 3-9)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
