FixVault
Home
›
Mazda
›
2004
›
6 s, 4D Hatchback, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Symptom Troubleshooting [Engine Control System (AJ)
›
No.27 Fuel Refill Concerns
›
Diagnostic procedure
Diagnostic procedure

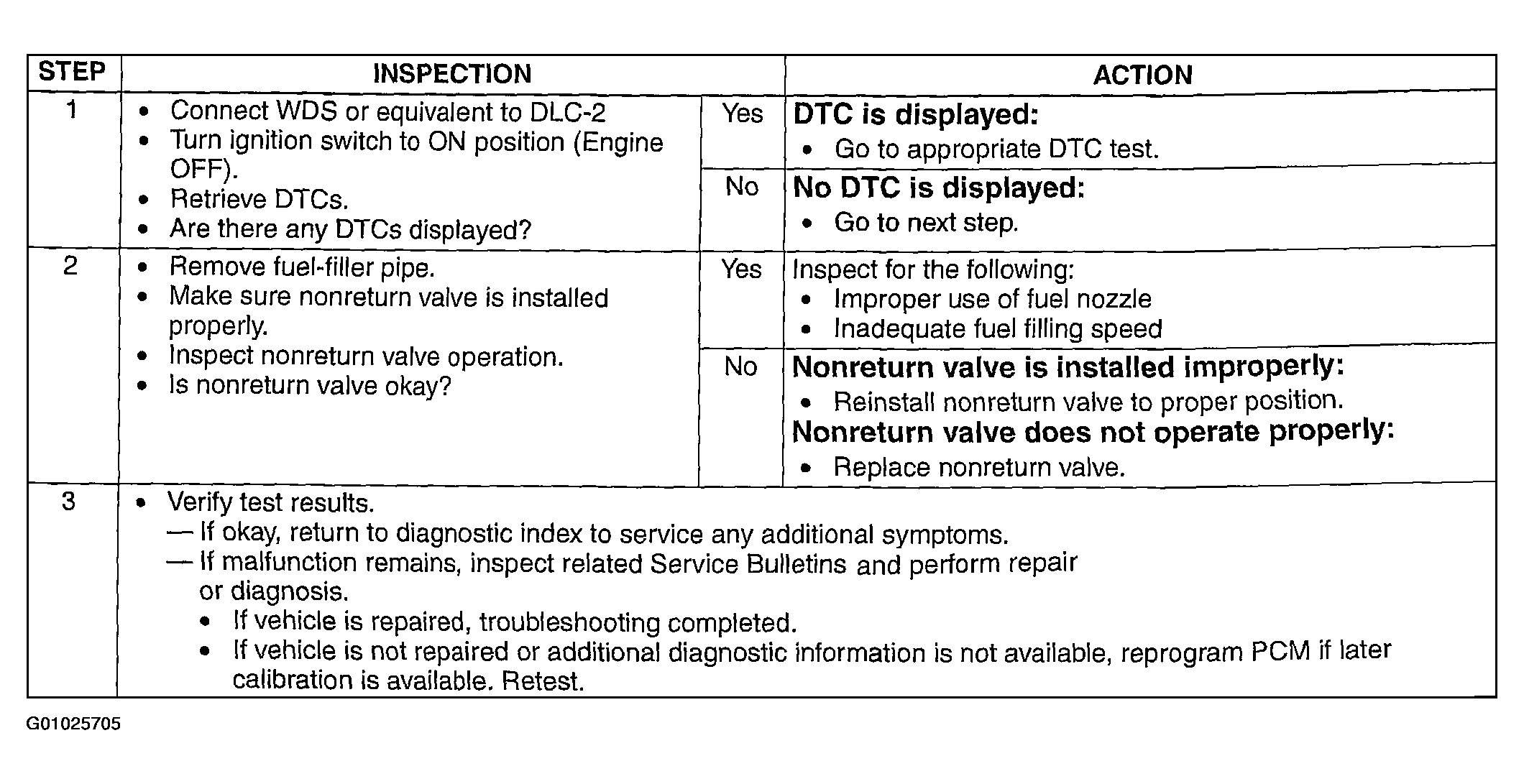

Fig 1: Symptom No.27 Fuel Refill Concerns - Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
