Selector Lever Disassembly/Assembly

  1. Disassemble in the order shown in the figure.
  2. Assemble in the reverse order of disassembly.

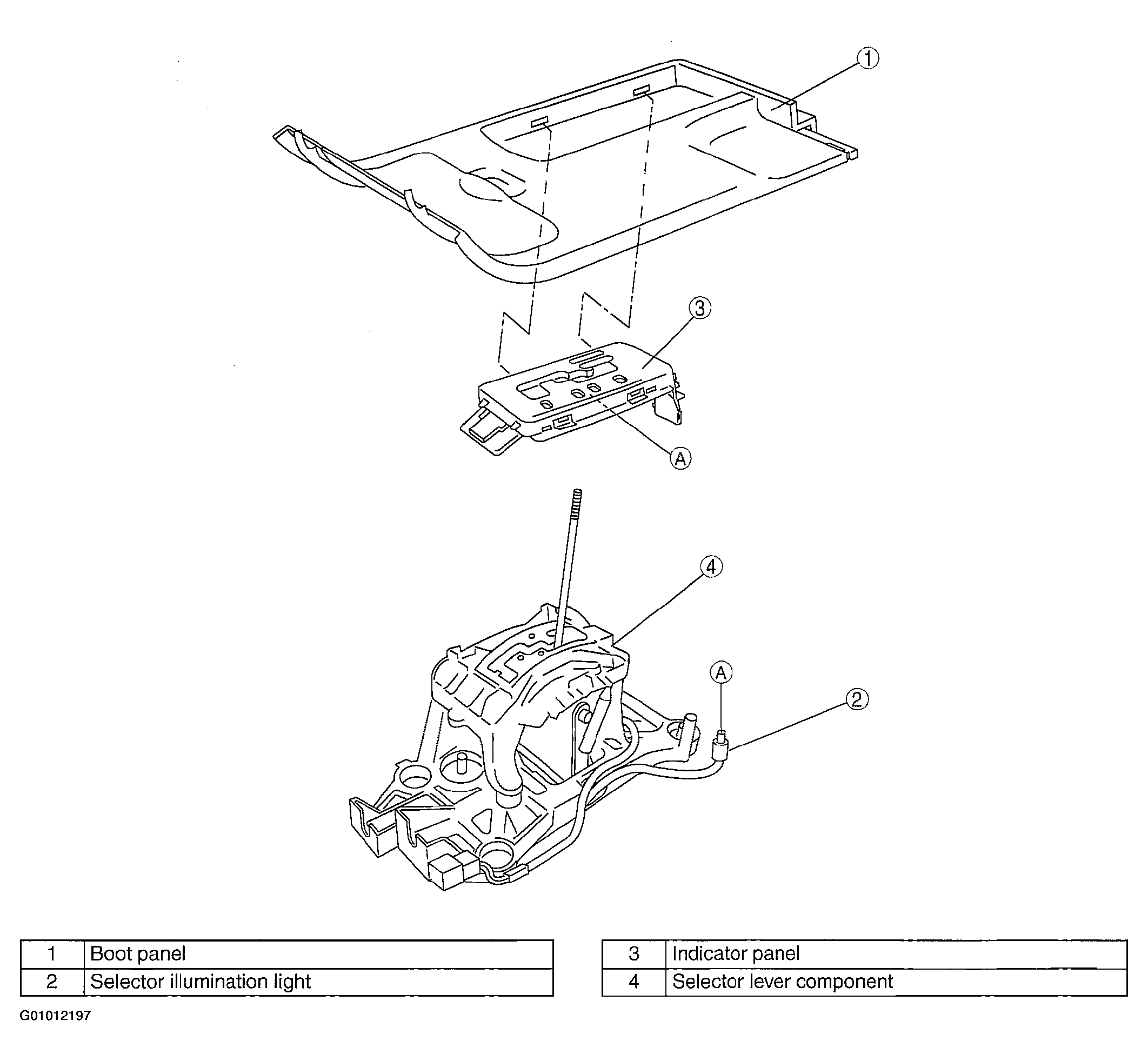

    Fig 1: Disassembling/Assembling Selector Lever
    G01012197Courtesy of MAZDA MOTORS CORP.
