Symptom Troubleshooting: Notes

Verify the symptoms, and perform troubleshooting according to the appropriate number.

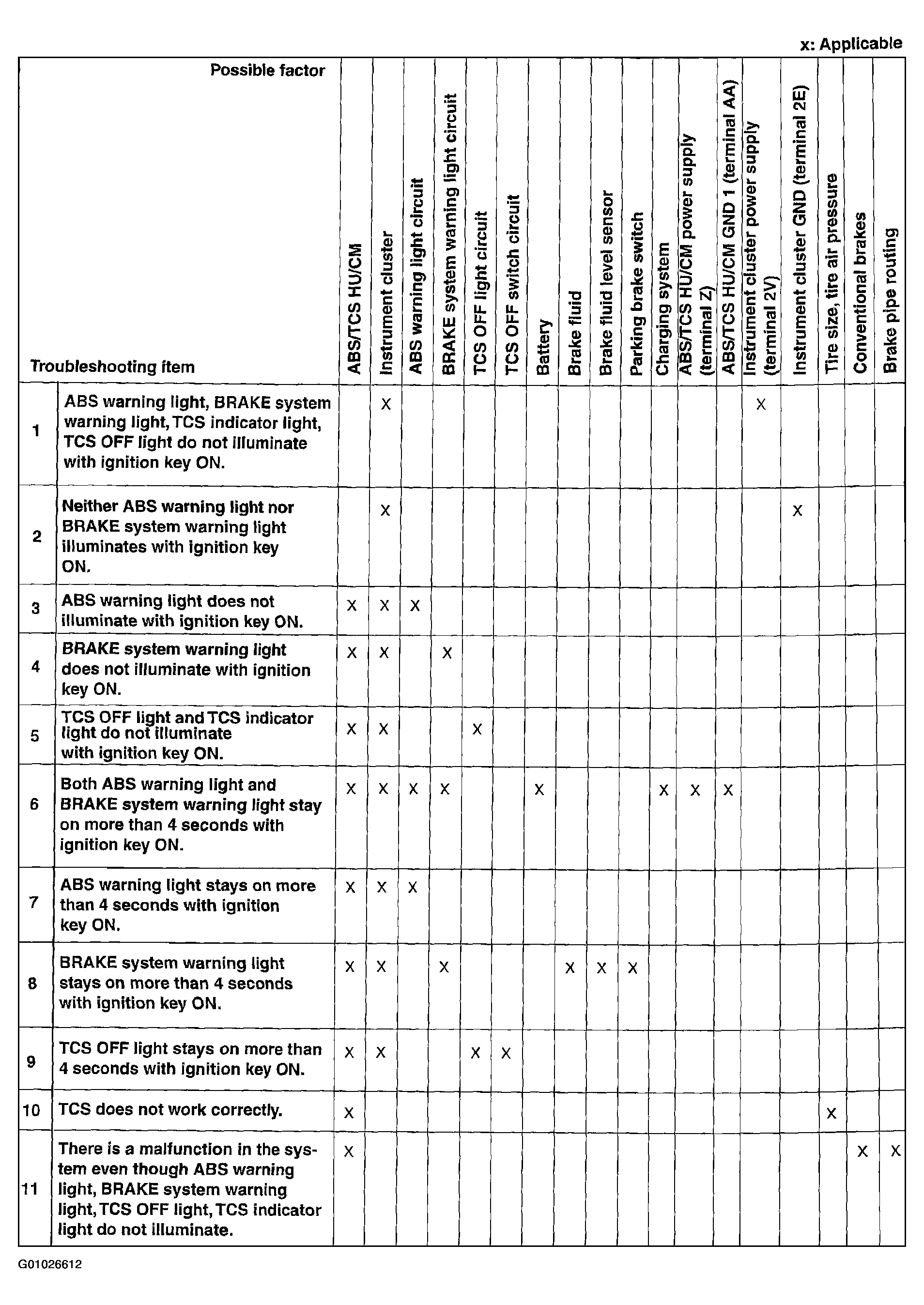

Fig 1: Symptom Troubleshooting Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

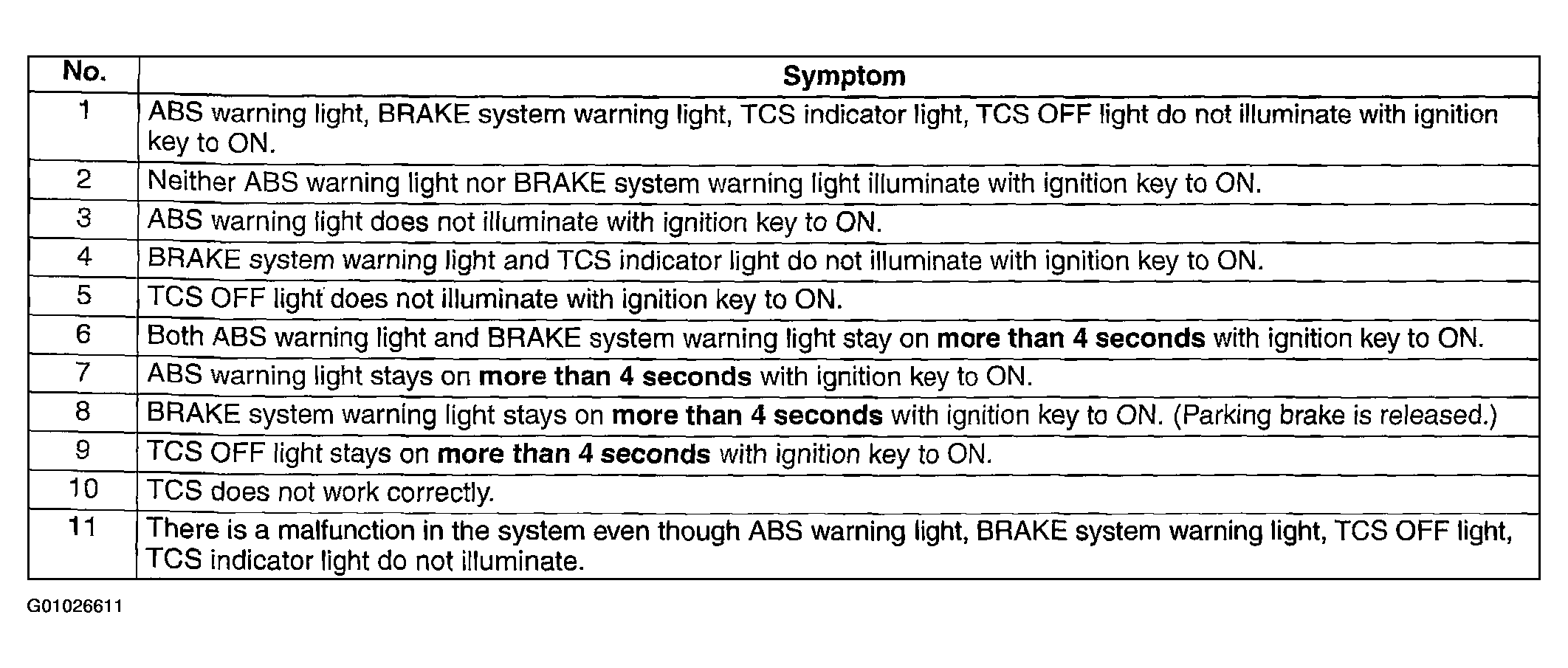

Fig 2: Symptom Troubleshooting Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
