Inspection Using An Oscilloscope (Reference)
›
HO2S Signal
›
Vehicle Condition
Vehicle Condition
Idle after warm up (no load)

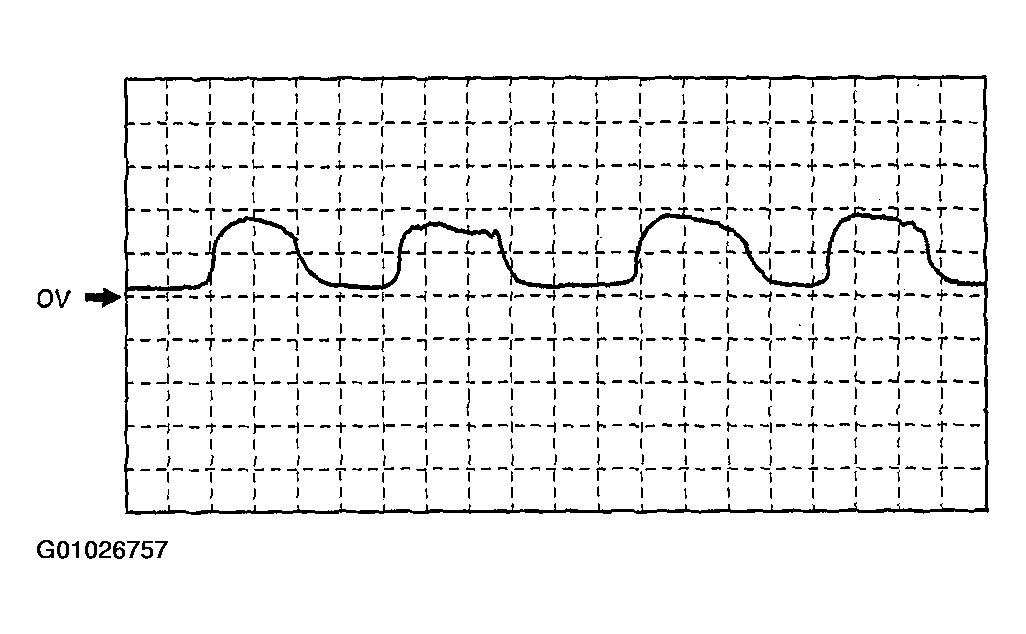

Fig 1: Inspecting HO2S Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
