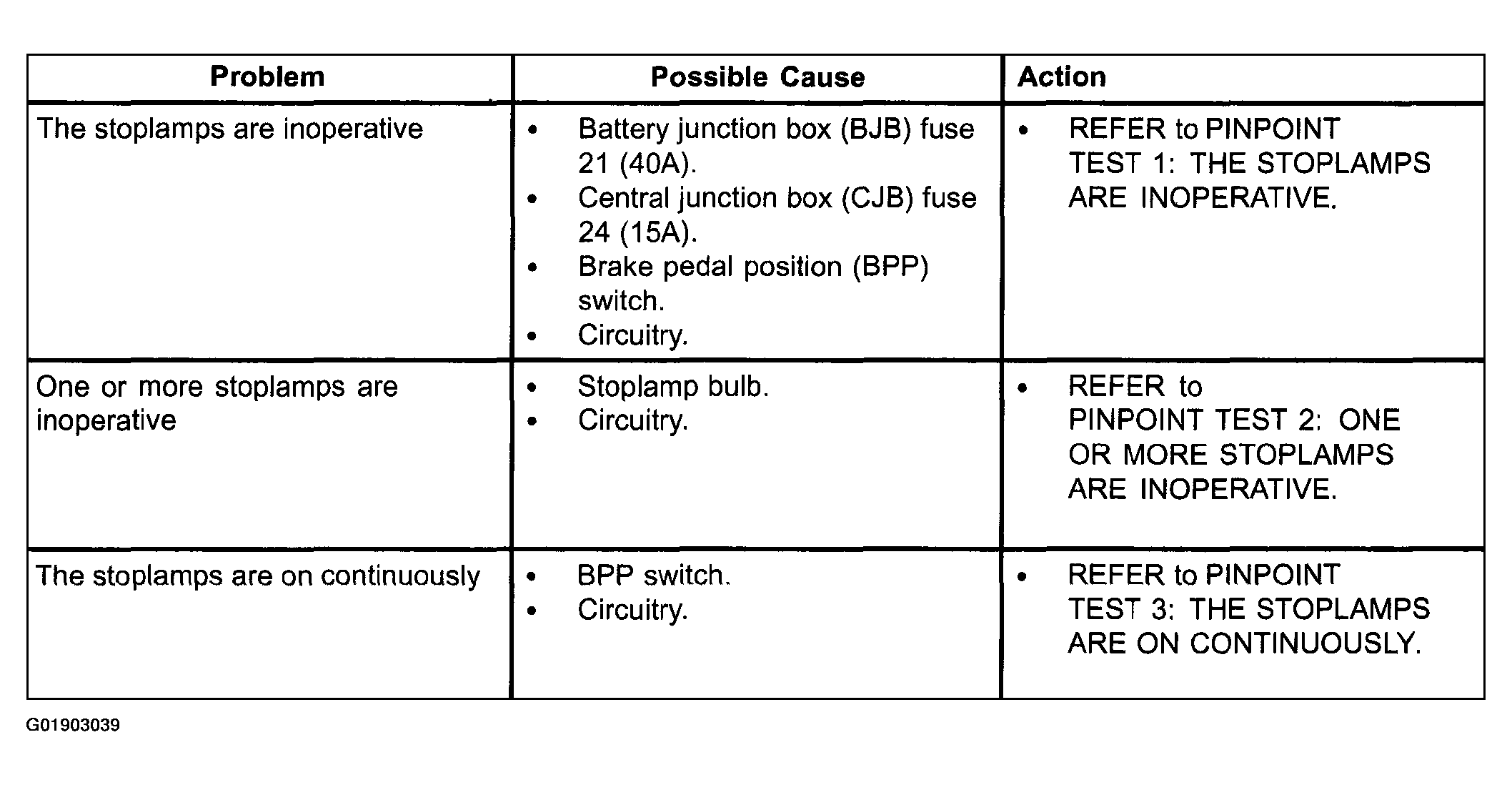

Symptom Troubleshooting Chart - Stop Lamps: Notes
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
PINPOINT TEST
| PINPOINT TEST | DESCRIPTION |
|---|---|
| PINPOINT TEST 1 | THE STOPLAMPS ARE INOPERATIVE |
| PINPOINT TEST 2 | ONE OR MORE STOPLAMPS ARE INOPERATIVE |
| PINPOINT TEST 3 | THE STOPLAMPS ARE ON CONTINUOUSLY |
