Neutral Switch Removal/Installation

  1. Remove the neutral switch.
  2. Apply a light coat of silicone sealant to the screw of the neutral switch.

    Sealant

    Three Bond product: TB1215

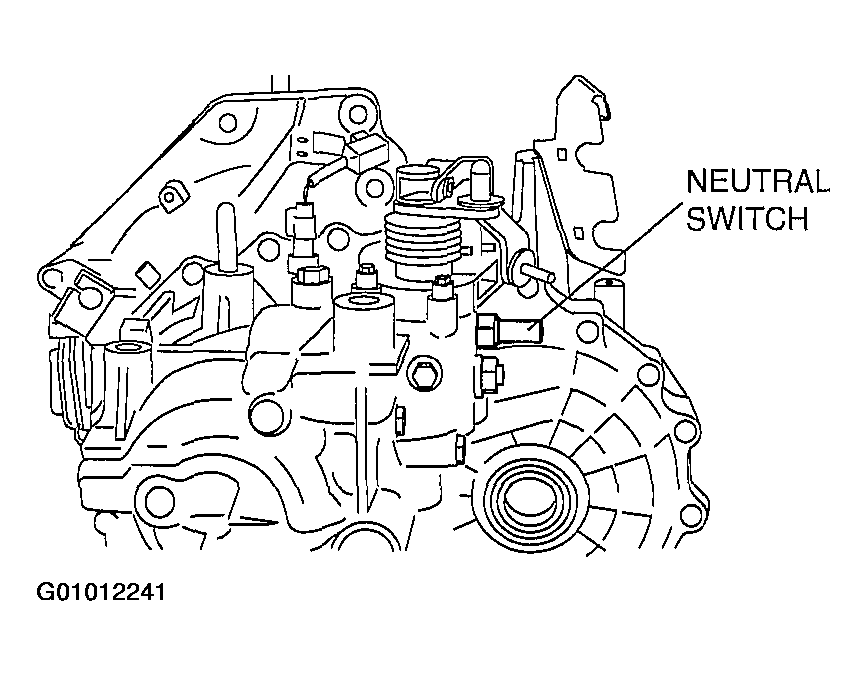

    Fig 1: Locating Neutral Switch
    G01012241Courtesy of MAZDA MOTORS CORP.
  3. Install the neutral switch to the transaxle case.

    Tightening torque

    22.5-33.3 N.m

    (2.3-3.4 kgf.m, 16.6-24.6 ft.lb)
