6 s, 4D Sedan, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System (AJ)
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
Field Coil Control Signal
›
Vehicle Condition
Vehicle Condition
Idle after warm up (no load)

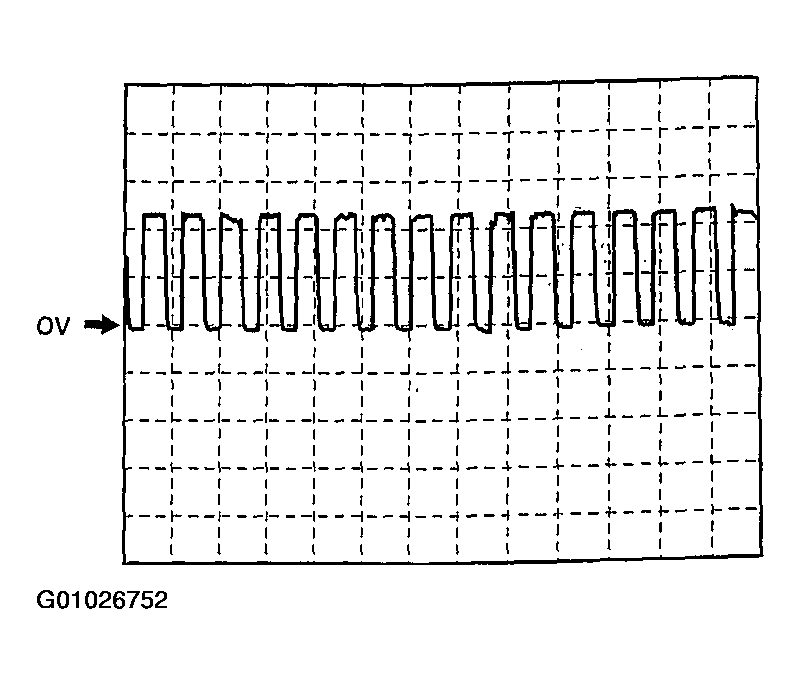

Fig 1: Inspecting Field Coil Control Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
