DTC P0506: Idle Control System Rpm Lower Than Expected: Notes

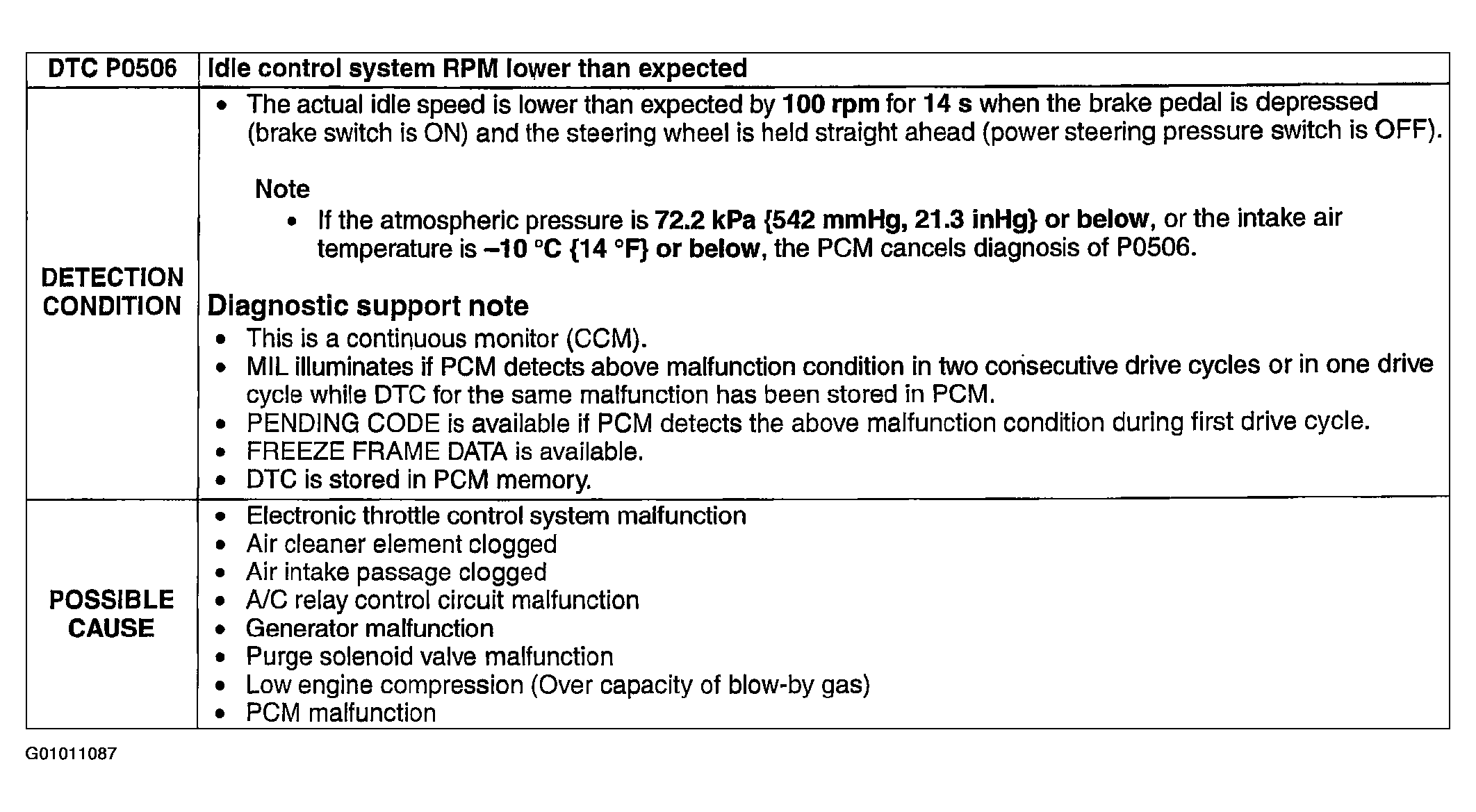

Fig 1: DTC P0506: Detection Condition & Possible Causes Chart
G01011087Courtesy of MAZDA MOTORS CORP.
