Repair and Diagnosis
›
Engine Performance
›
System
›
On-Board Diagnostic [Engine Control System AJ)
›
DTC P0325: KS Circuit
›
Notes
DTC P0325: KS Circuit: Notes

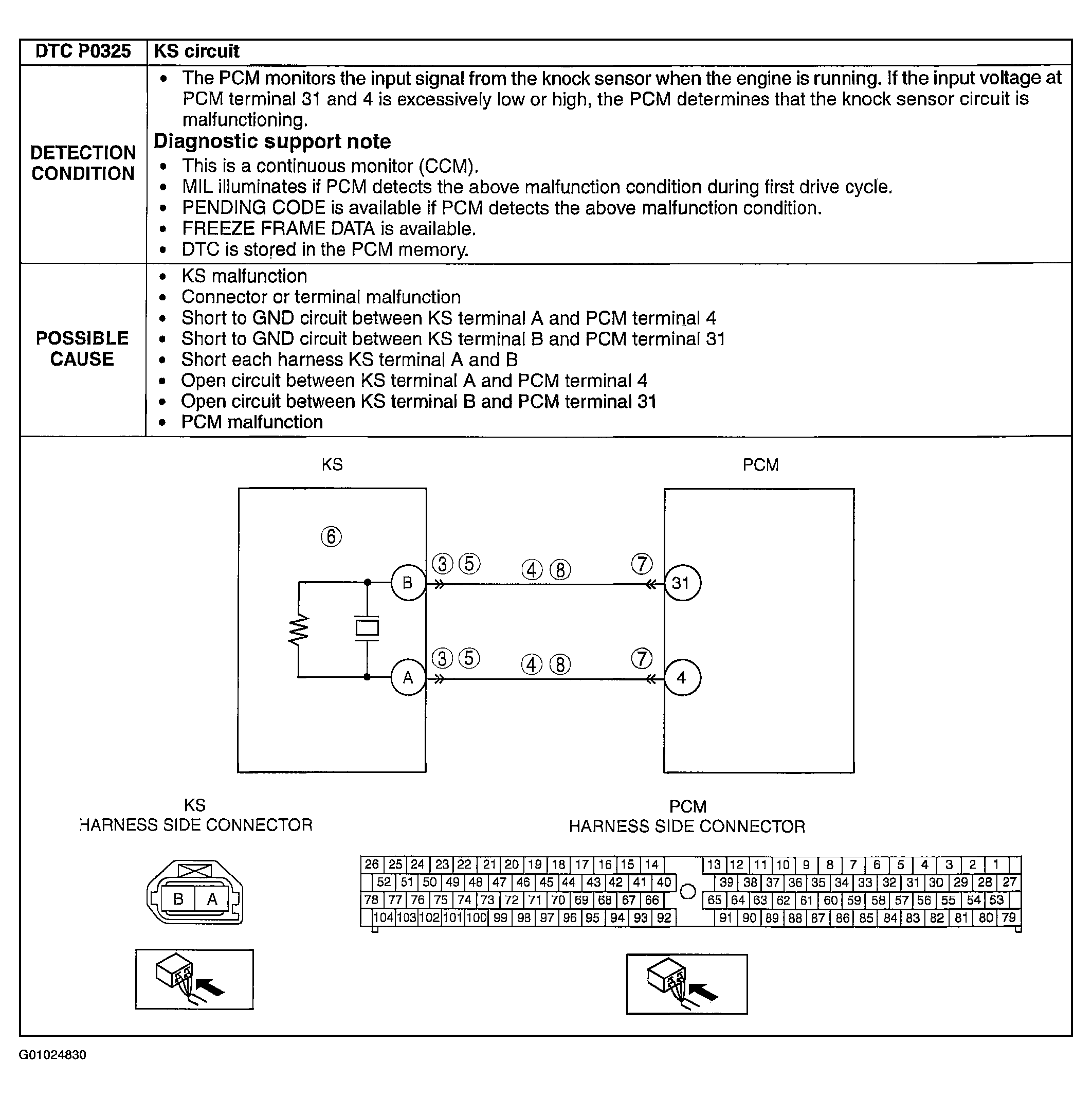

Fig 1: DTC P0325: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
