DTC P0345: CMP Sensor (LH) Circuit Malfunction: Notes

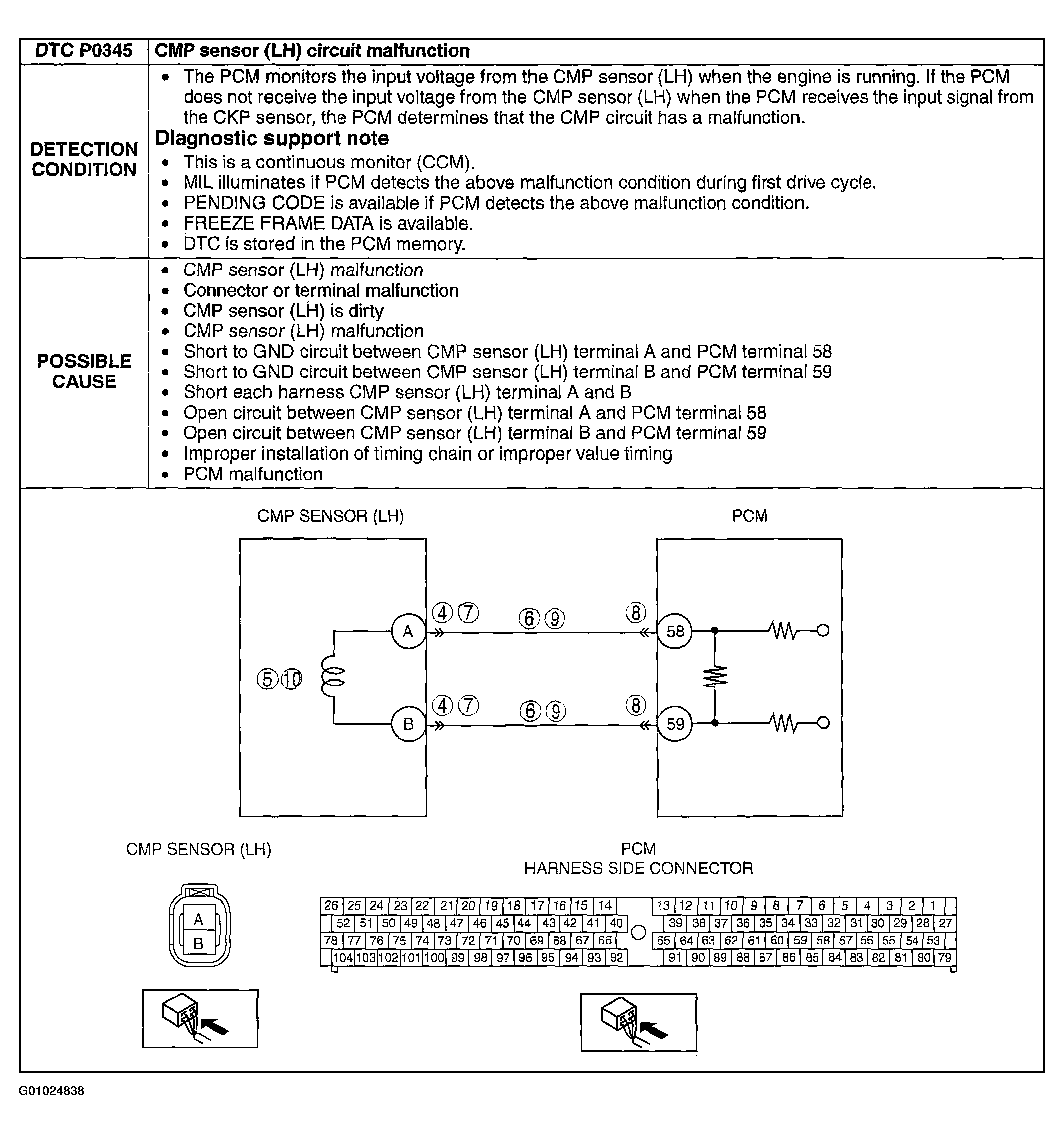

Fig 1: DTC P0345: Detection Condition & Possible Causes Chart
G01024838Courtesy of MAZDA MOTORS CORP.
