DTC P2504: Battery Overcharge
›
Notes
DTC P2504: Battery Overcharge: Notes

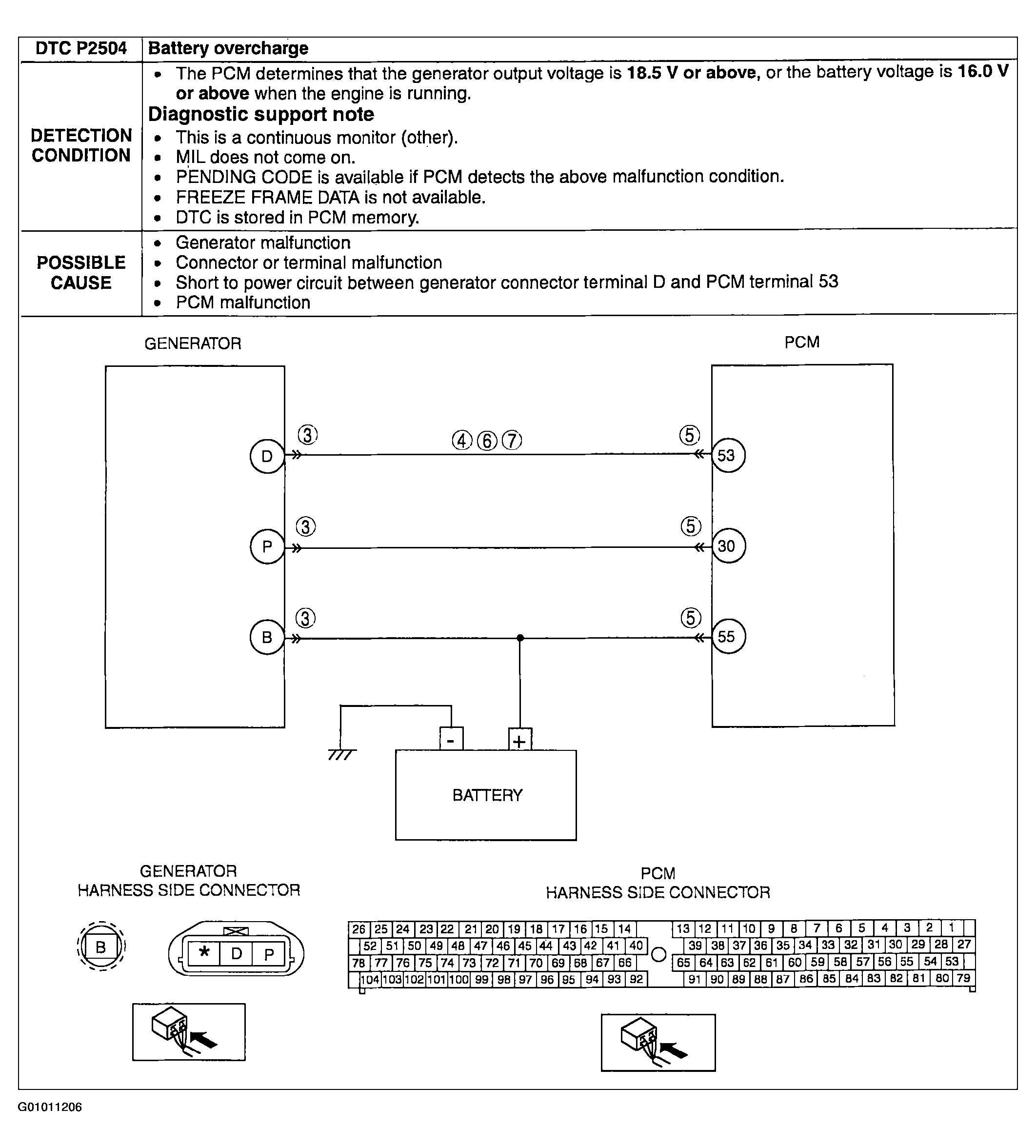

Fig 1: DTC P2504:: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
