DTC P0505: Idle Control System Malfunction
›
Notes
DTC P0505: Idle Control System Malfunction: Notes

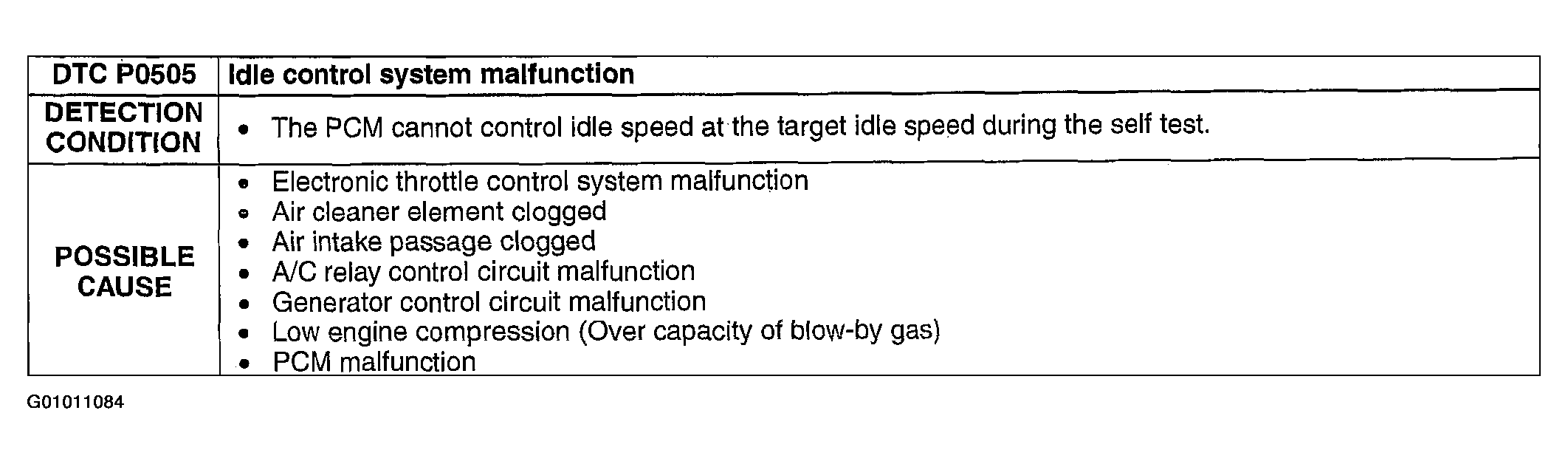

Fig 1: DTC P0505: Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
