Troubleshooting (Communication Control System)
›
No Module/Network Communication - SCP Link
No Module/Network Communication - SCP Link

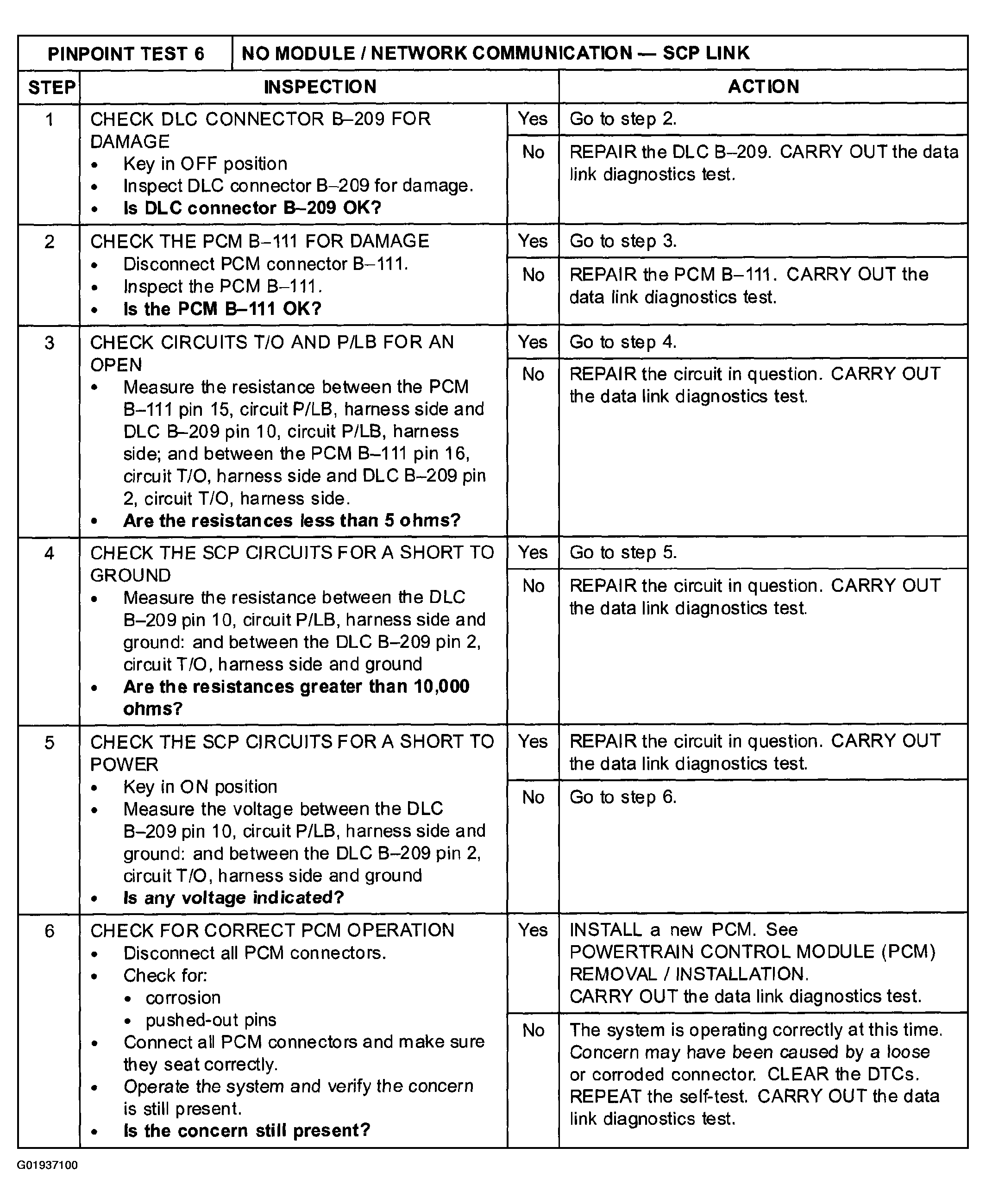

Fig 1: Pinpoint Test 6: No Module/Network Communication - SCP Link Inspection Table
Courtesy of MAZDA MOTORS CORP.

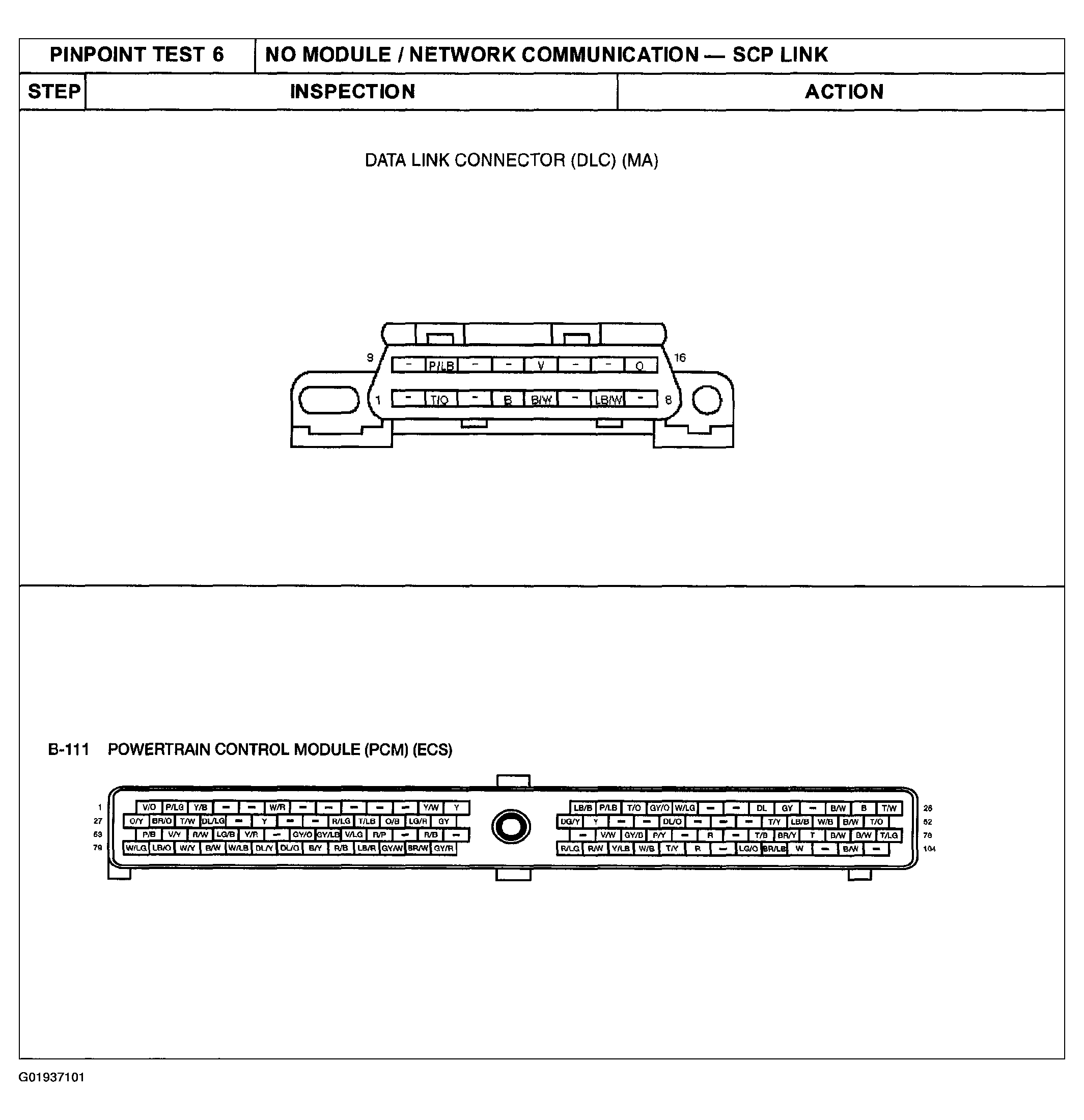

Fig 2: Identifying Data Link Connector (MA) And Powertrain Control Module Connector Terminal Wire Color
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
