Inside Door Handle Cable Removal Note

  1. Remove the inside door handle cable water shield.
  2. Remove the cable conduit from the door lock.
  3. Disconnect cable from the door lock.

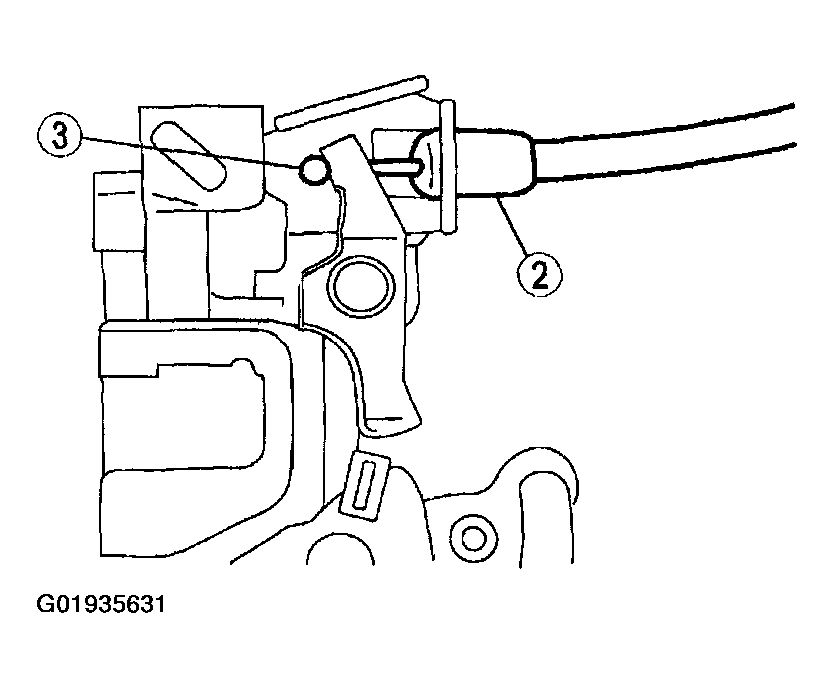

    Fig 1: Locating Inside Door Handle Cable
    G01935631Courtesy of MAZDA MOTORS CORP.
