Panic Feature Is Inoperative/Does Not Operate Correctly
Panic Feature Is Inoperative/Does Not Operate Correctly

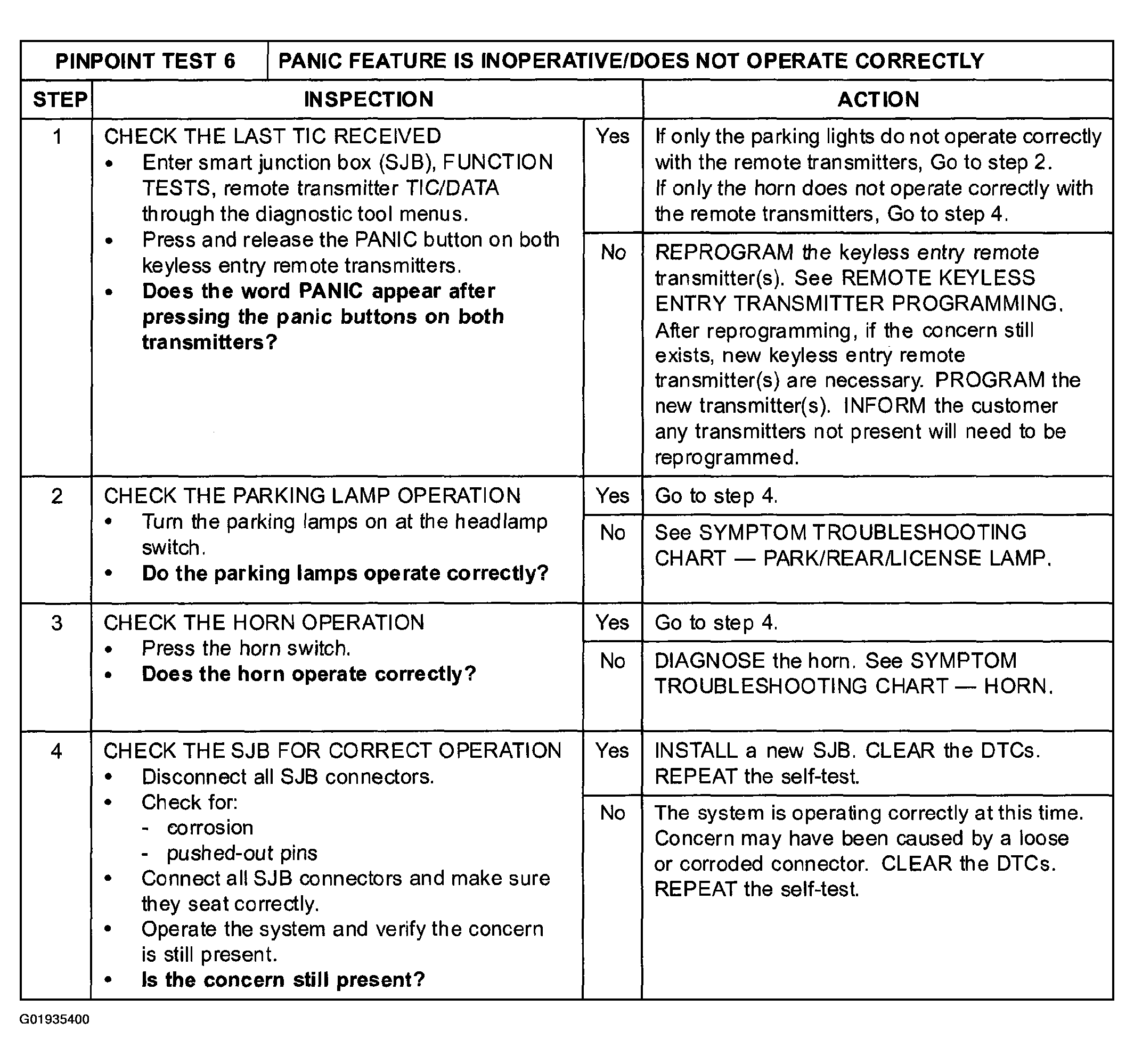

Fig 1: Pinpoint Test 6: Panic Feature Inoperative/Does Not Operate Correctly Inspection Table (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
