Removal Note

Remove the steering column. See STEERING COLUMN REMOVAL/INSTALLATION .
Remove the screws (1) and position the parking brake release handle (2) aside.

Fig 1: Removing Screws And Position The Parking Brake Release Handle Aside
Courtesy of MAZDA MOTORS CORP.

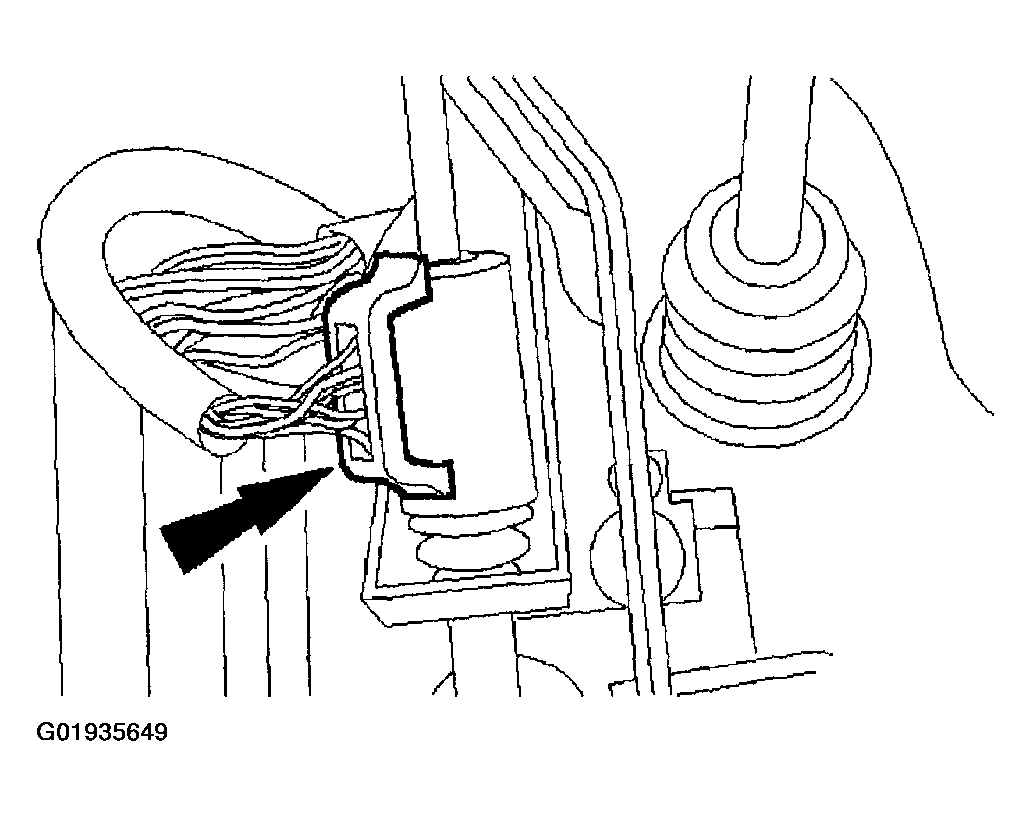

Disconnect the brake pedal position (BPP) switch connector.

Fig 2: Disconnecting Brake Pedal Position Switch Connector
Courtesy of MAZDA MOTORS CORP.

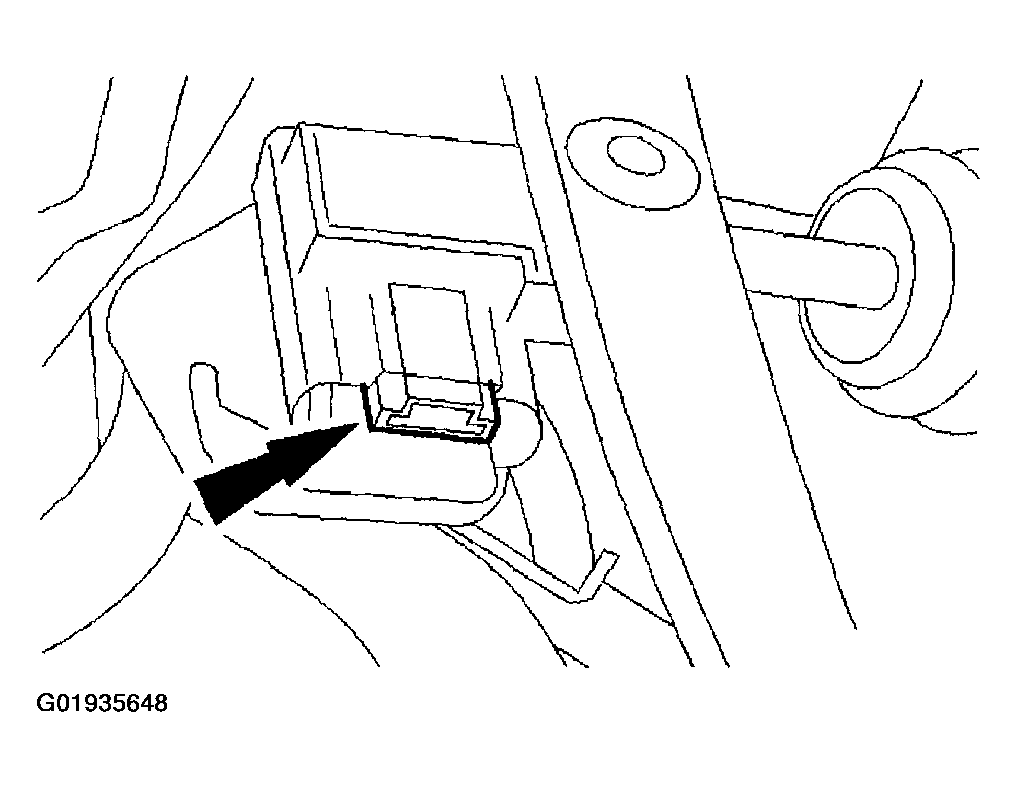

If equipped, disconnect the clutch pedal position (CPP) switch connector.

Fig 3: Disconnecting Clutch Pedal Position Switch Connector
Courtesy of MAZDA MOTORS CORP.
Remove the right hand and left hand scuff plates.
Remove both A-pillartrim panels.
Remove both front side trim panels.
Remove the instrument panel fuse panel opening door.
From inside the engine compartment, disconnect the engine compartment fuse box from the bracket and position aside.
Remove the bulkhead wiring harness from inside the engine compartment.

Fig 4: Disconnecting Engine Compartment Fuse Box From Bracket
Courtesy of MAZDA MOTORS CORP.

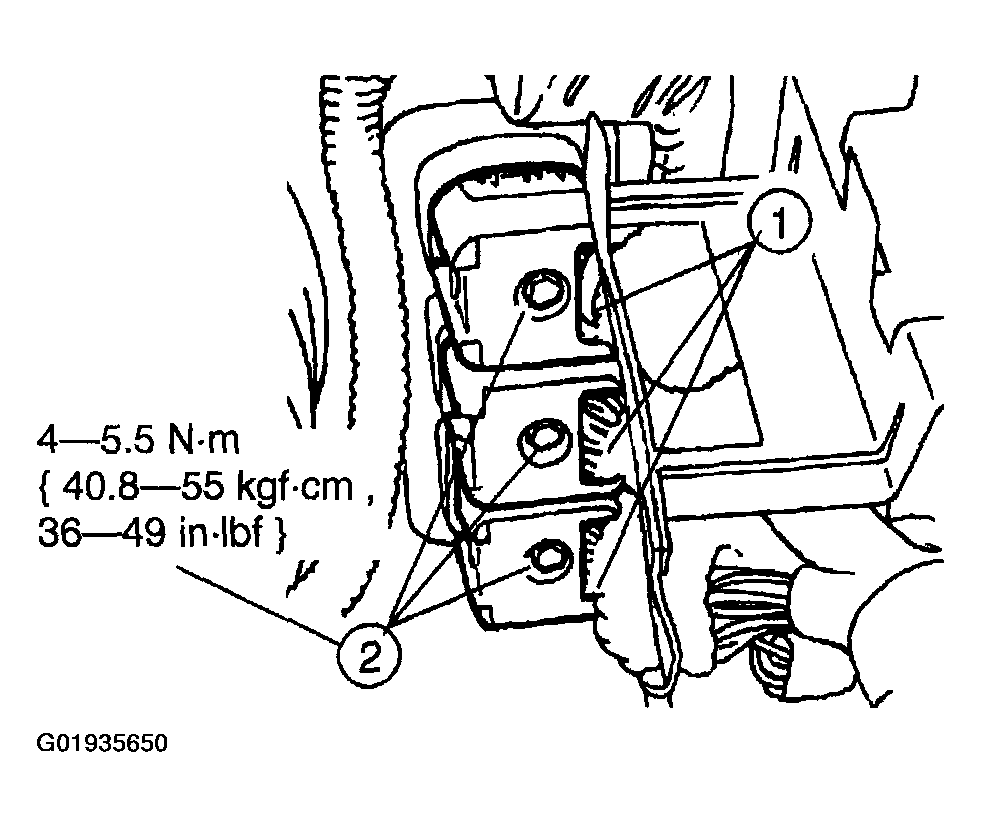

Remove the bulkhead connector insulator.

Fig 5: Removing Bulkhead Connector Insulator
Courtesy of MAZDA MOTORS CORP.

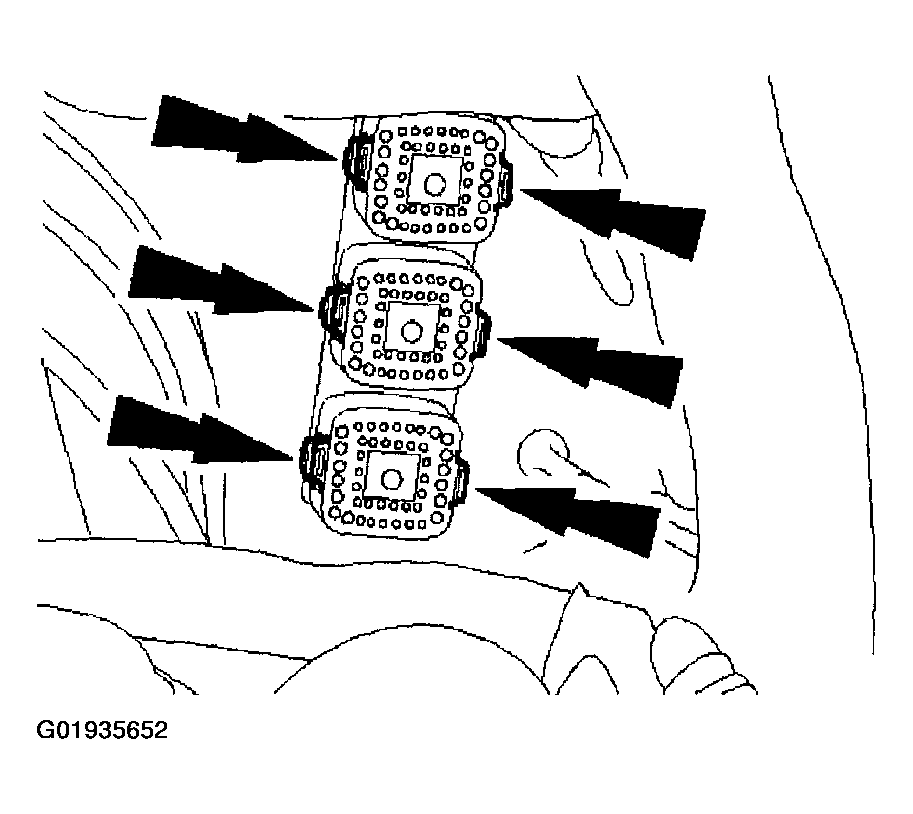

Unclip the bulkhead connectors from the dash panels.

Fig 6: Unclipping Bulkhead Connectors From Dash Panel
Courtesy of MAZDA MOTORS CORP.
Remove the instrument panel valance panel.

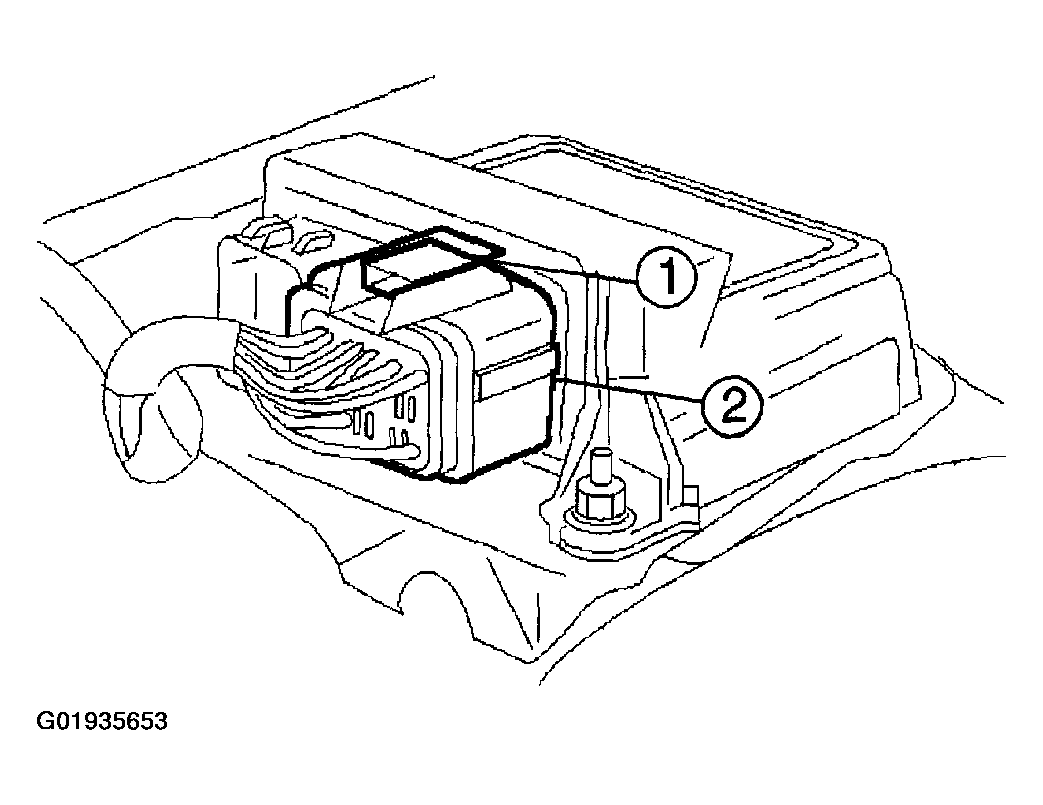

Release the air bag diagnostic monitor locking tab (1).
Disconnect the air bag diagnostic monitor connector (2).

Fig 7: Disconnecting Air bag Diagnostic Monitor Connector
Courtesy of MAZDA MOTORS CORP.
Remove the passenger-side air bag module. See PASSENGER AIR BAG MODULE REMOVAL/INSTALLATION .

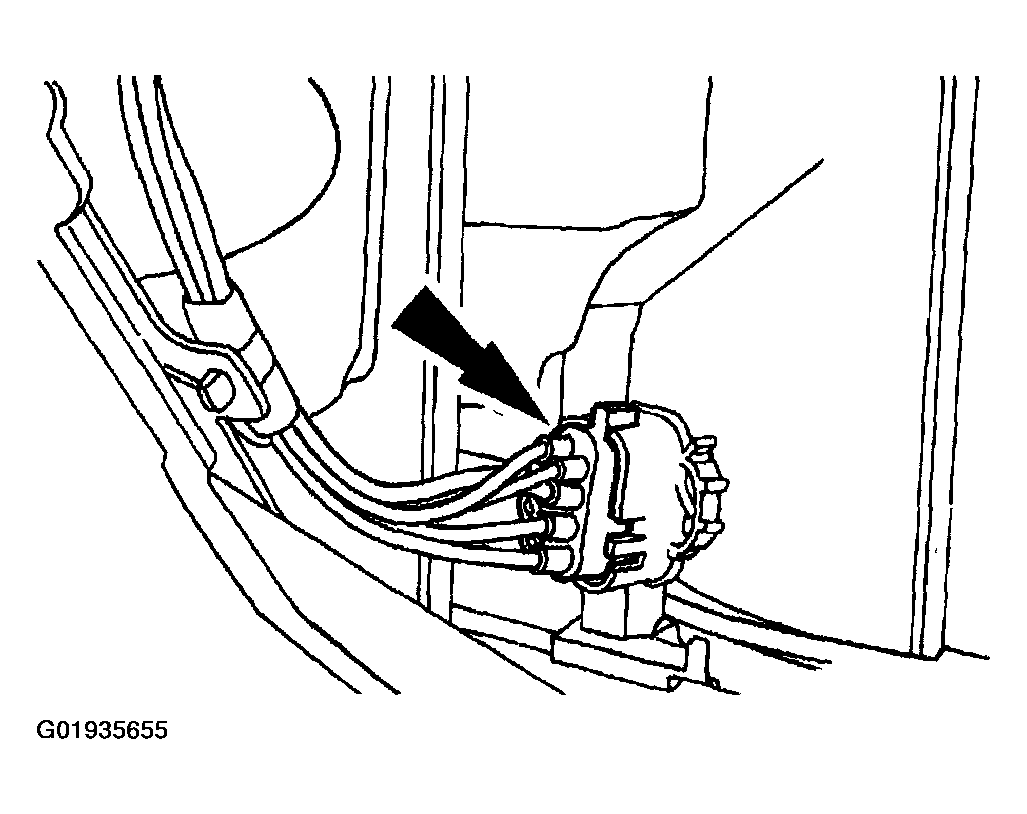

Disconnect the blend door actuator connector.

Fig 8: Disconnecting Blend Door Actuator Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the climate control vacuum harness connector.

Fig 9: Disconnecting Climate Control Vacuum Harness Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the radio antenna cable in-line connector.

Fig 10: Disconnecting Radio Antenna Cable In-Line Connector
Courtesy of MAZDA MOTORS CORP.
Raise and secure the glove compartment.
- Press the release tabs inward while raising the glove compartment.

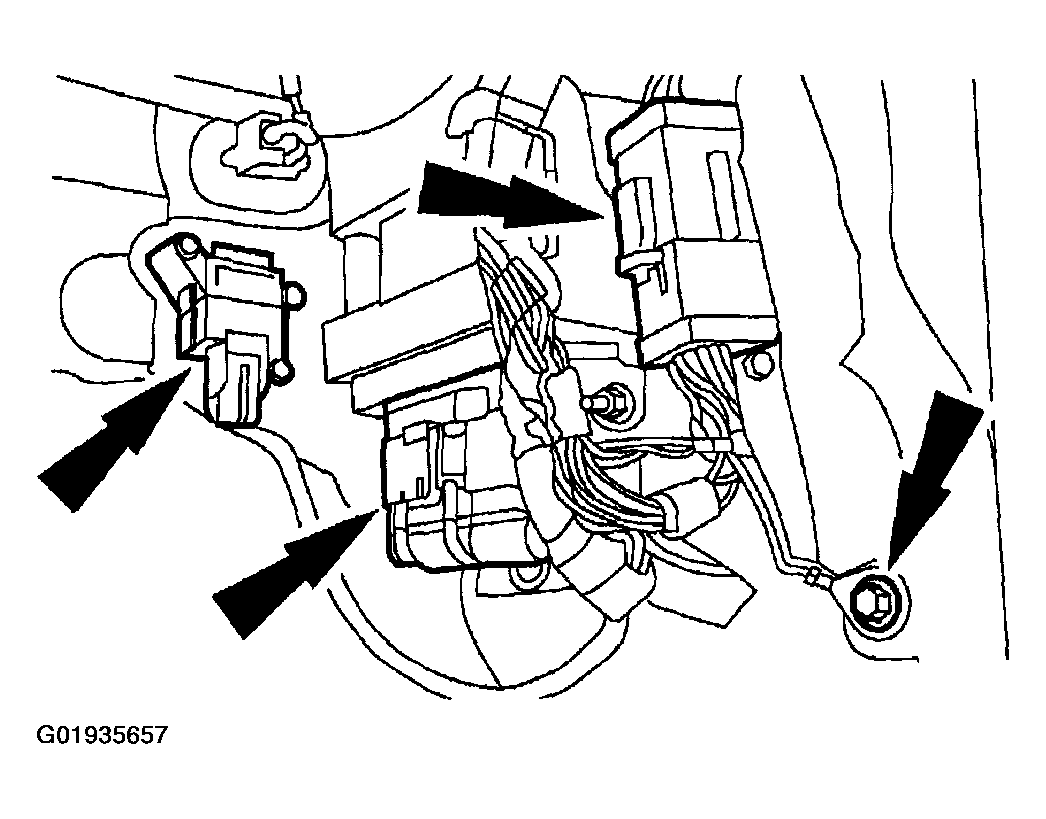

Disconnect the electrical connectors and the ground wires on the right hand cowl panel.

Fig 11: Disconnecting Electrical Connectors And Ground Wires On Right Hand Cowl Panel
Courtesy of MAZDA MOTORS CORP.

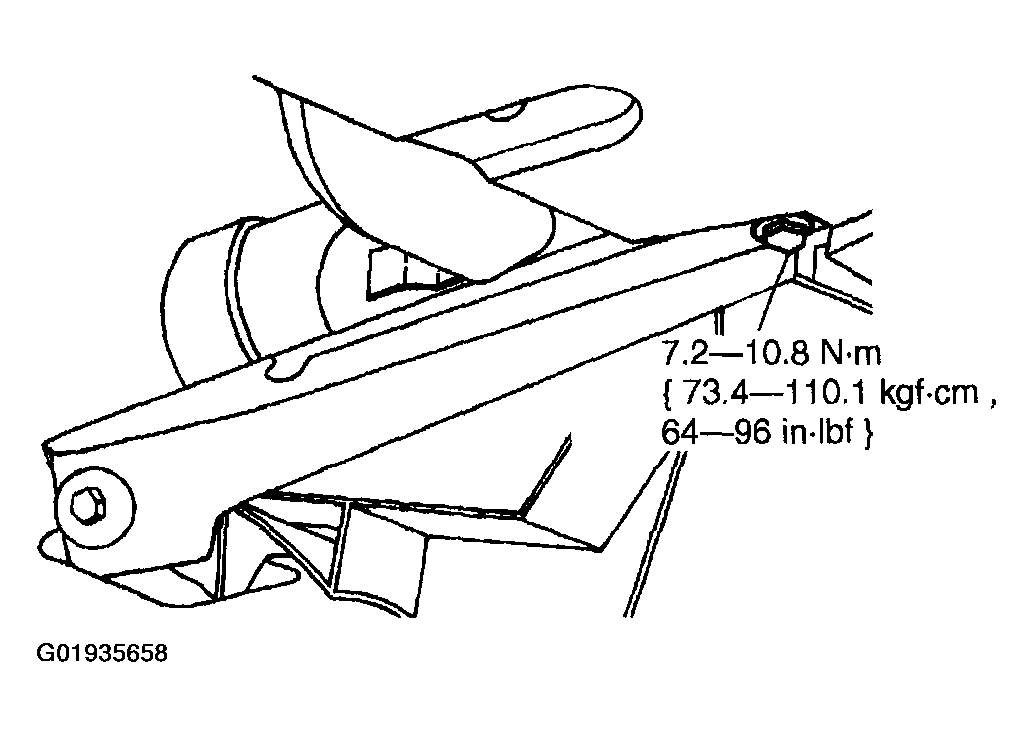

Remove the instrument panel brace bolt under the steering column.

Fig 12: Removing Instrument Panel Brace Bolt Under Steering Column
Courtesy of MAZDA MOTORS CORP.

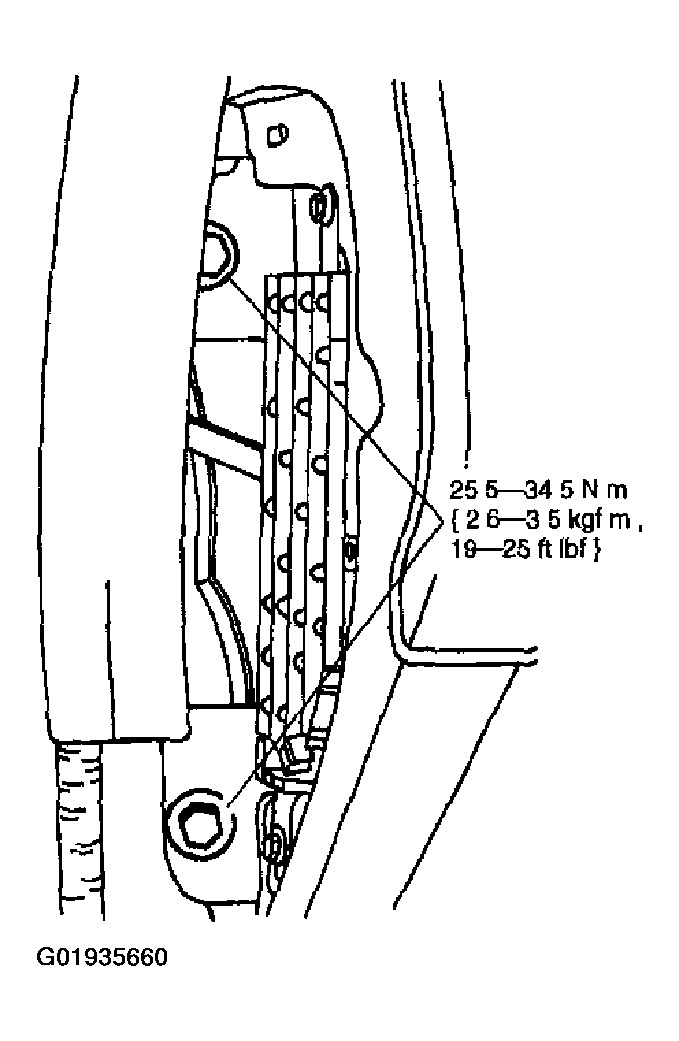

Remove the right hand instrument panel cowl side bolt.

Fig 13: Removing Right Hand Instrument Panel Cowl Side Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the left hand instrument panel cowl side bolts.

Fig 14: Removing Left Hand Instrument Panel Cowl Side Bolts
Courtesy of MAZDA MOTORS CORP.
Position the instrument panel away from the dash panel.
Disconnect the instrument panel to main harness.

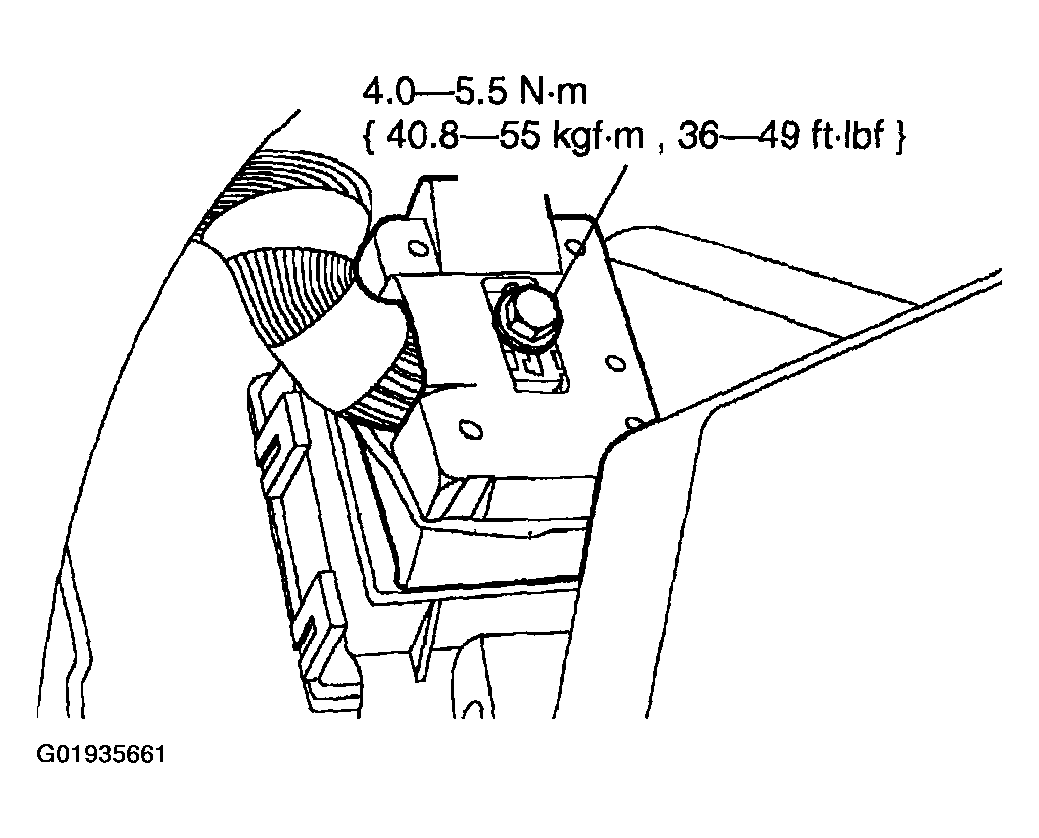

Fig 15: Disconnecting Instrument Panel To Main Harness
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Two technicians are required to perform this step.
Remove the instrument panel.
- If necessary, transfer the components to the new instrument panel.
