Mirror Inoperative (Single)

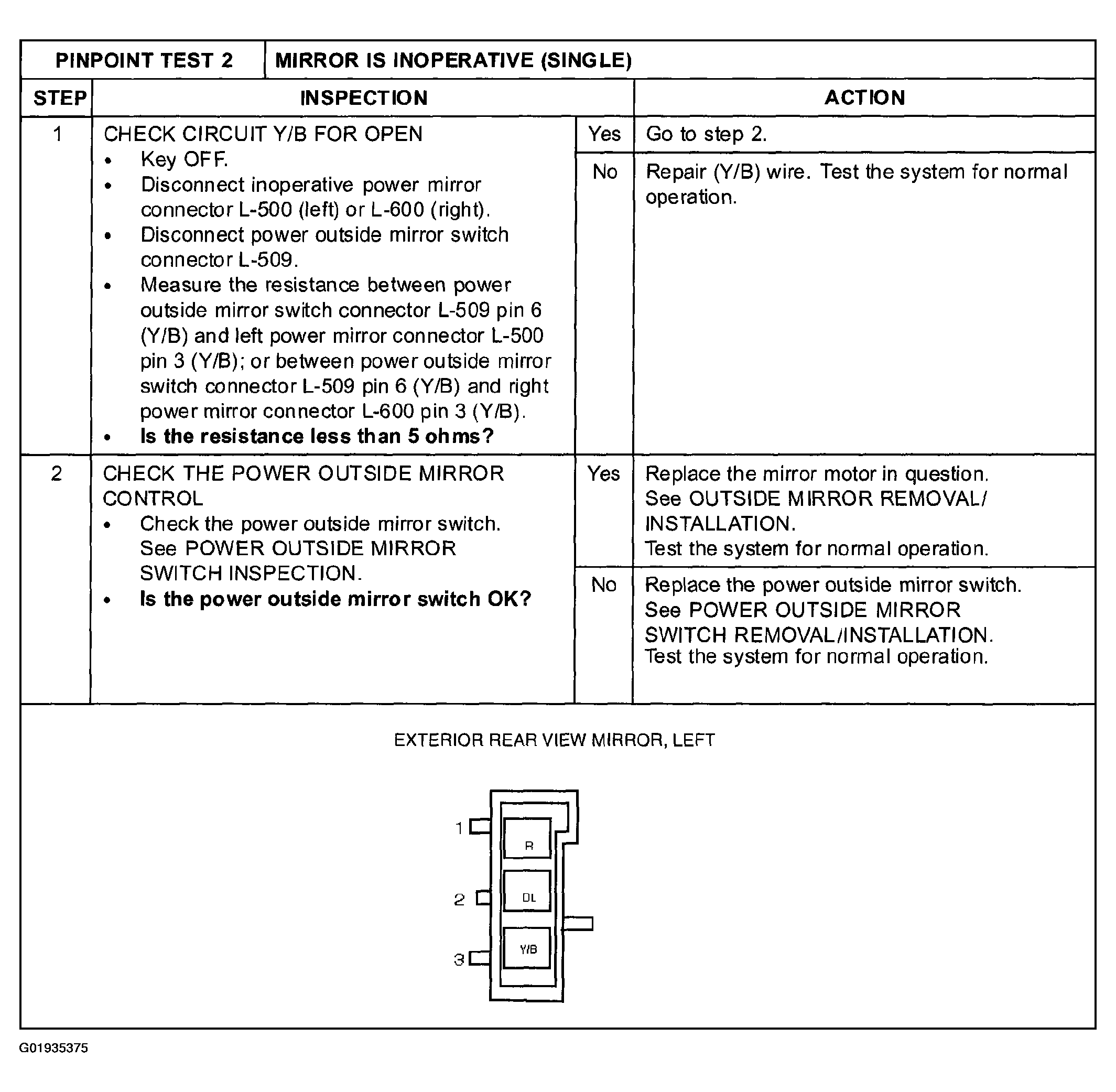

Fig 1: Pinpoint Test 2 - Mirror Inoperative (Single) Inspection Table
G01935375Courtesy of MAZDA MOTORS CORP.

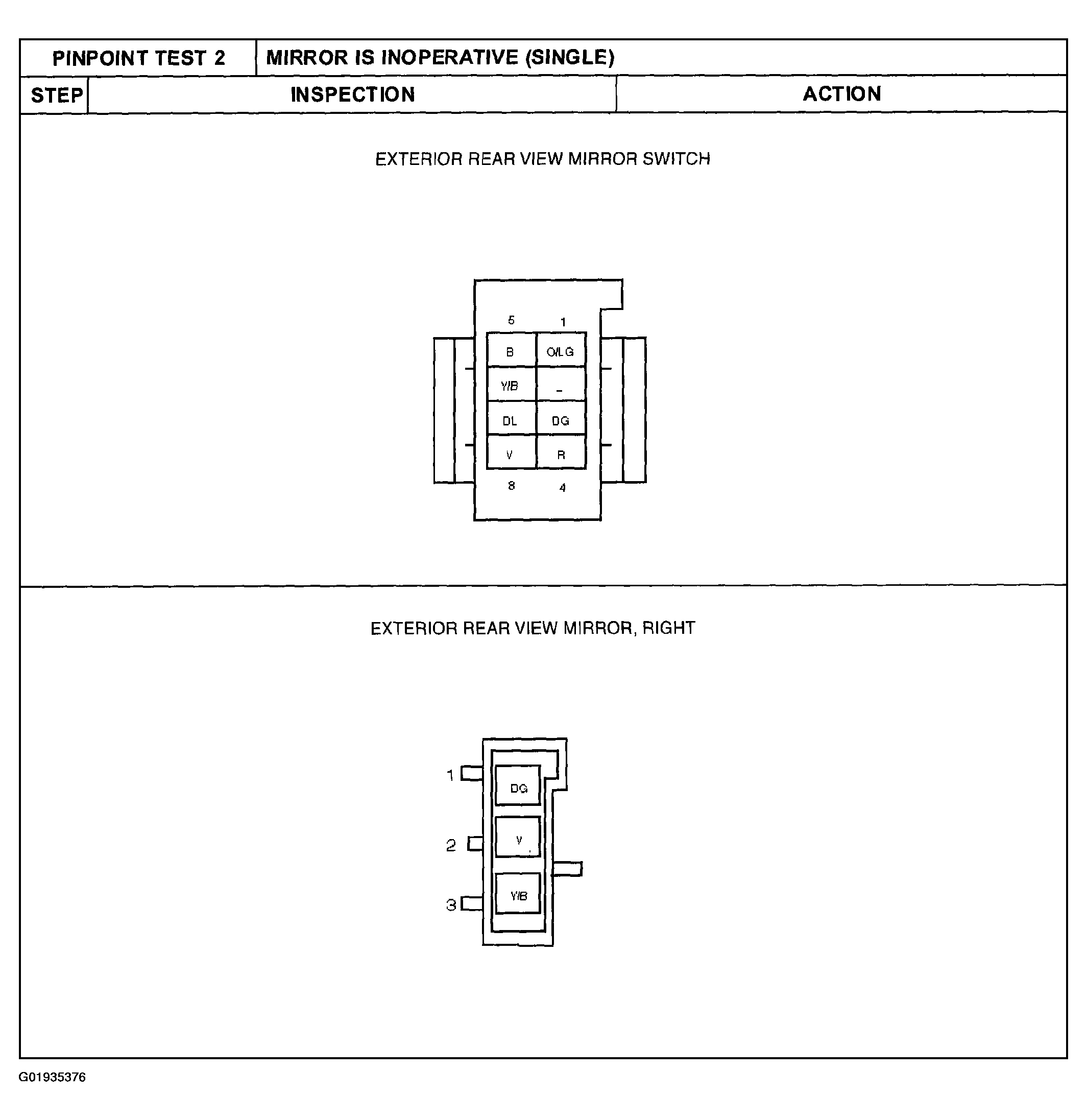

Fig 2: Identifying Exterior View Mirror Right Switch Connector Terminal Wire Color
G01935376Courtesy of MAZDA MOTORS CORP.
