Axle Retainer Bracket Front Removal/Installation

Raise the vehicle on a hoist; see JACKING .
Remove the bushing through-bolt.

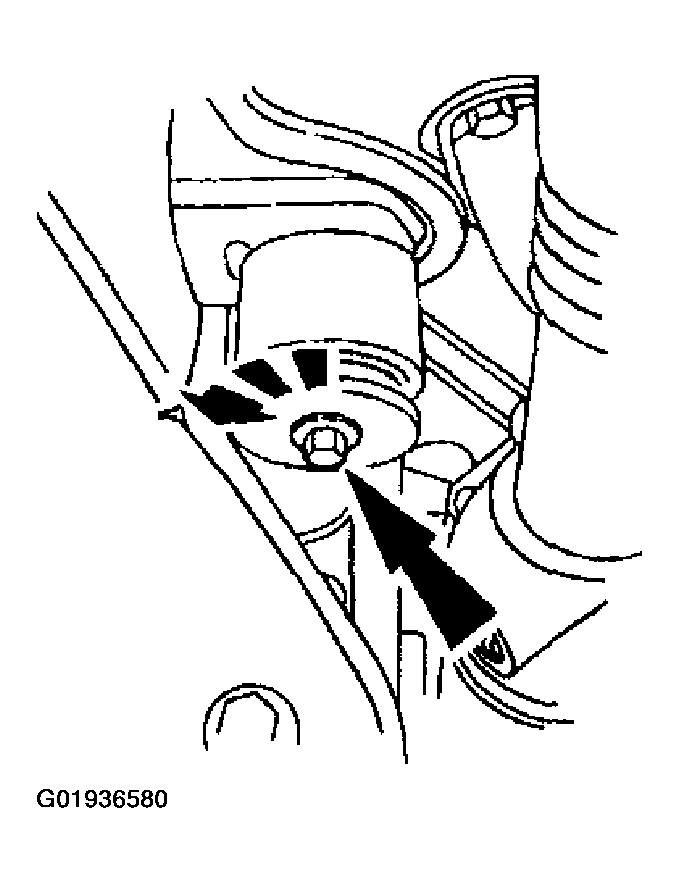

Fig 1: Removing Axle Retainer Bracket Front
Courtesy of MAZDA MOTORS CORP.
Remove the three retainer bracket bolts.

Fig 2: Removing Three Retainer Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
1. Tightening torque: Retainer Bracket Bolts
  1. 64-91 Nm (6.5-9.3 kgfm, 47-67 ft.lb.)
2. Tightening torque: Bushing Through Bolt
  1. 60-80 Nm (6.1-8.2 kgfm, 45-59 ft.lb.)
