Instrument Cluster Lens Removal/Installation

Remove the instrument cluster; see INSTRUMENT CLUSTER REMOVAL/INSTALLATION .
Remove the instrument cluster lens and mask assembly.
1. Remove the screws.
2. Remove the instrument cluster lens and mask assembly.

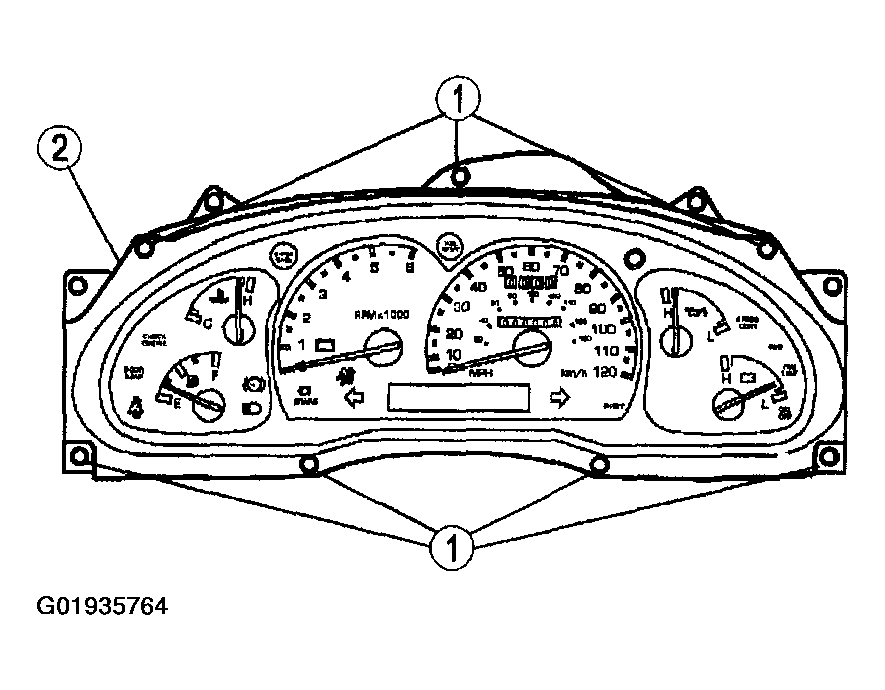

Fig 1: Removing/Installing Instrument Cluster Lens
Courtesy of MAZDA MOTORS CORP.
Install the instrument cluster lens and mask assembly.
1. Position the instrument cluster lens and mask assembly.
2. Install the screws.
  1. Tightening torque
    1. 1.4 - 1.8 N.m (14.3 - 18.4 kgf.cm, 12 - 16 ft.lbf)
Install the instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .
