Cooling System Specifications
Cooling System Specifications

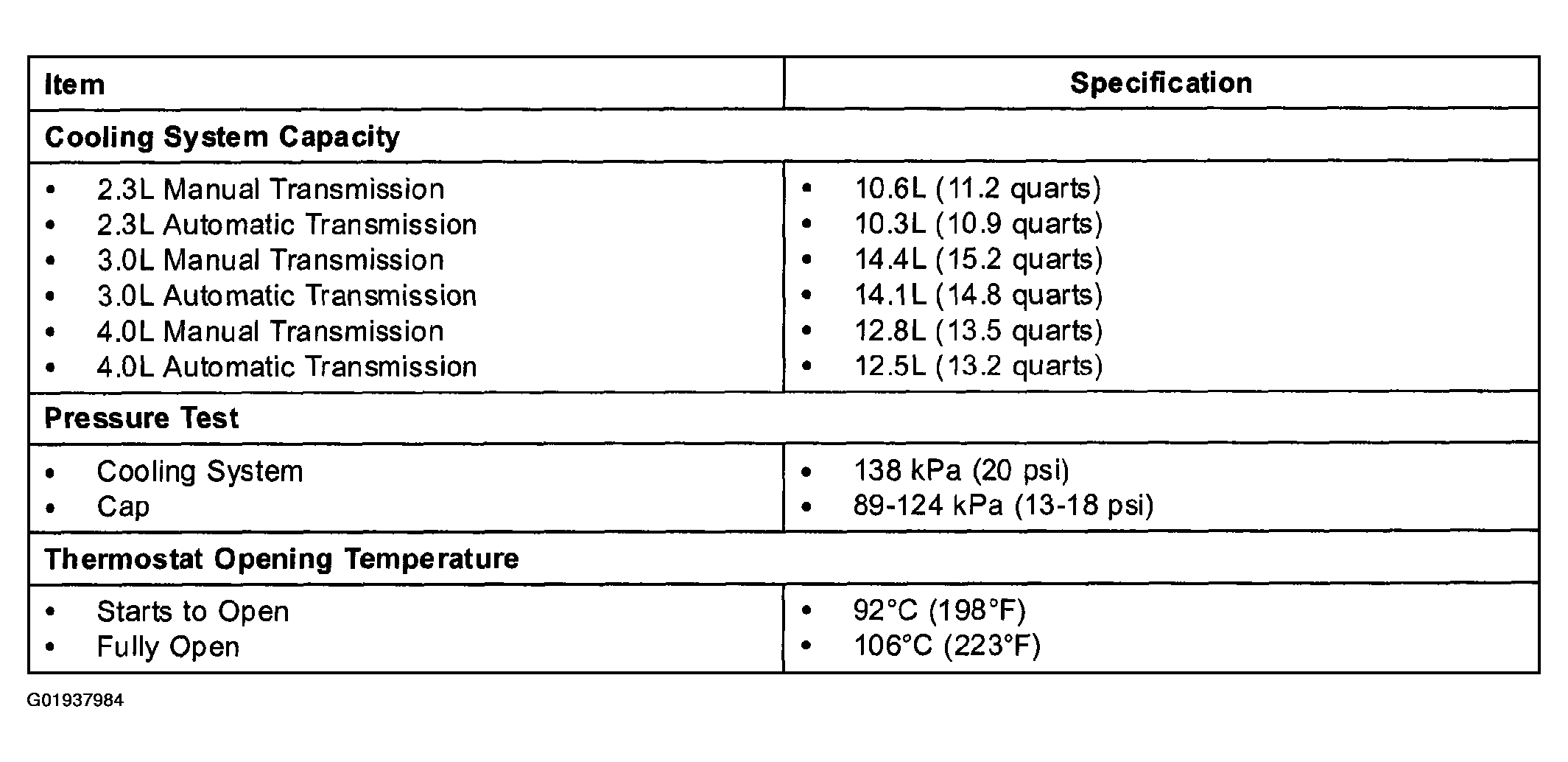

Fig 1: Cooling System Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
