Technical Data (Engine Mechanical)
›
Fuel System Specifications
Fuel System Specifications

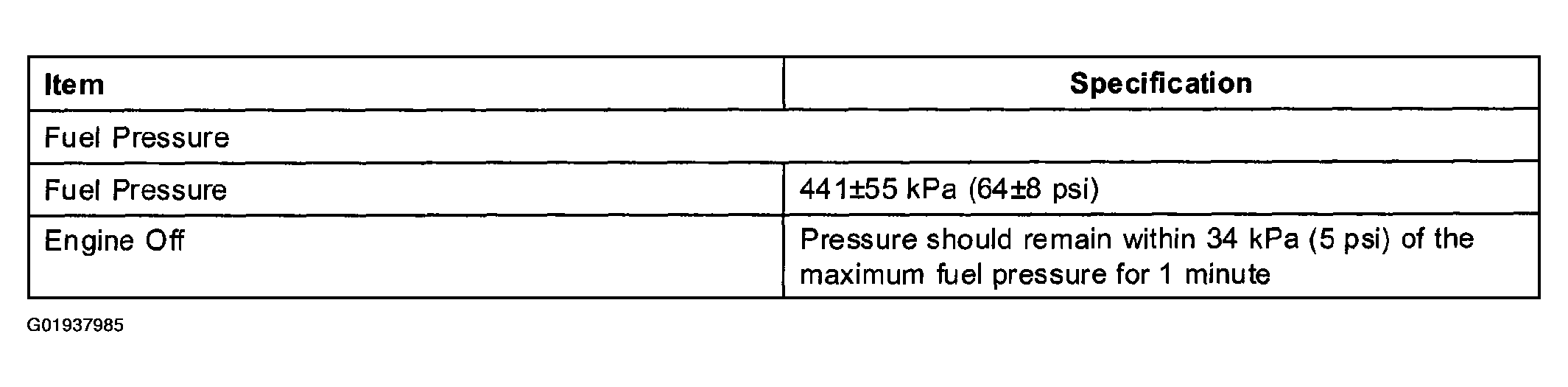

Fig 1: Fuel System Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
