Removal and Installation

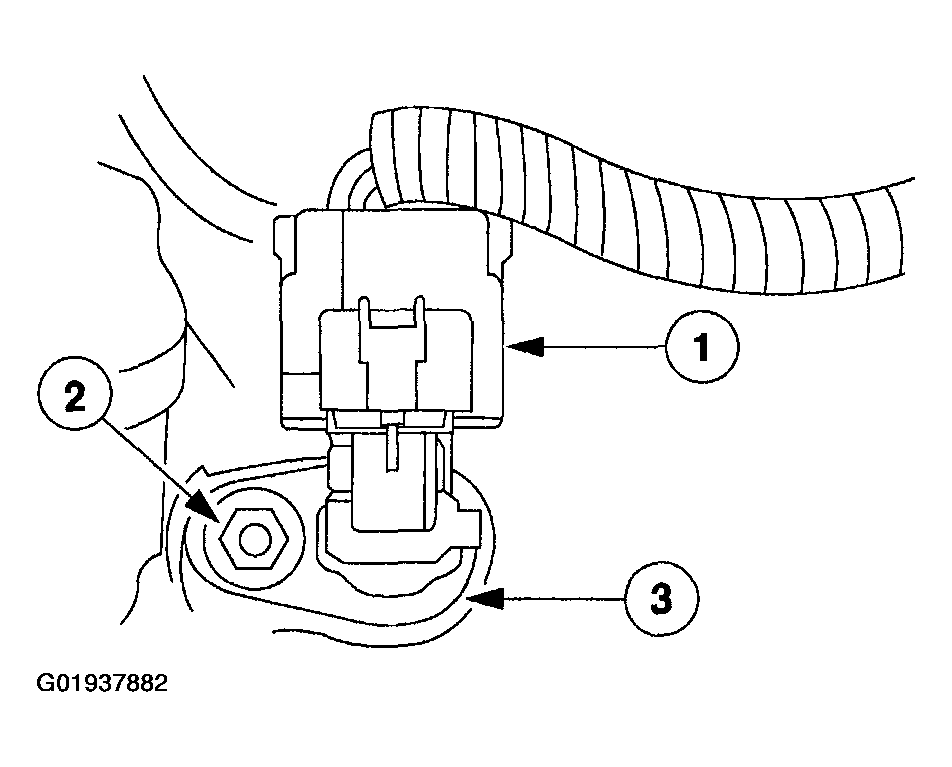

Fig 1: Removing Camshaft Position (CMP) Sensor - 4.0L
G01937882Courtesy of MAZDA MOTORS CORP.
  1. Remove the camshaft position (CMP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the sensor.
    Fig 2: Installing Camshaft Position (CMP) Sensor - 4.0L
    G01937883Courtesy of MAZDA MOTORS CORP.
  2. To install, reverse the removal procedure.
