Removal and Installation

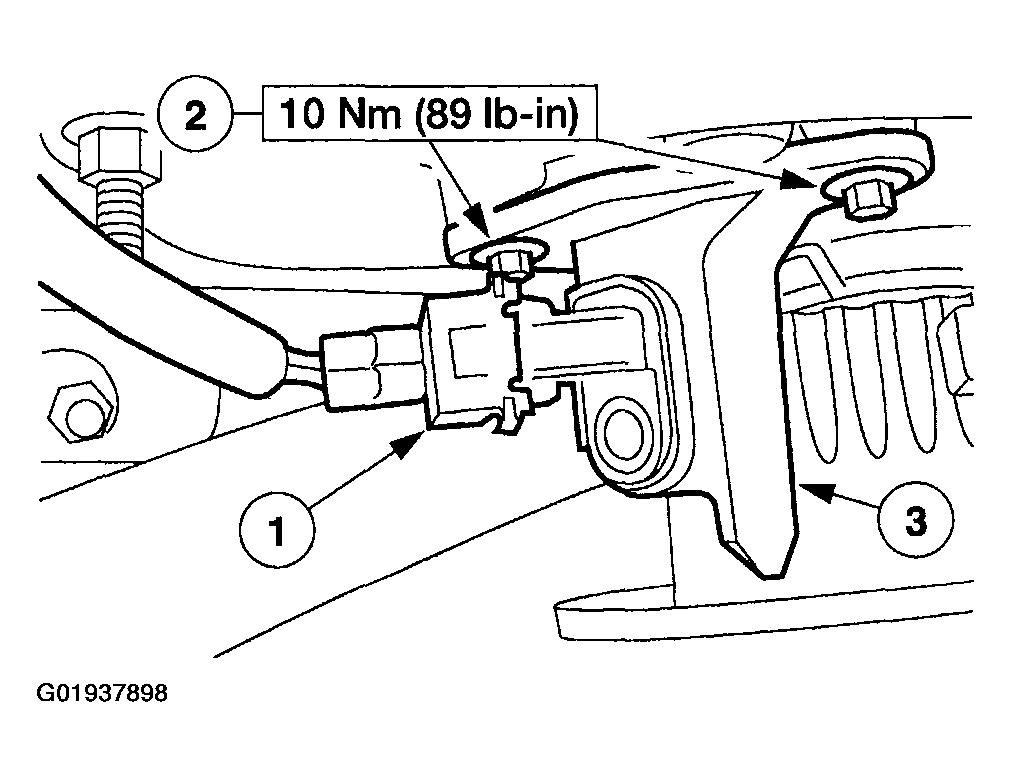

Fig 1: Removing Crankshaft Position (CKP) Sensor - 4.0L

G01937898

Courtesy of MAZDA MOTORS CORP.

Remove the crankshaft position (CKP) sensor.
1. Disconnect the electrical connector.
2. Remove the bolts.
3. Remove the sensor.
  NOTE:
  - The new CKP sensor must be touching the damper. The new sensor has wear tabs that will wear off after several engine revolutions.
To install, reverse the removal procedure.
