Heated Oxygen Sensor (Ho2S) Removal/Installation
›
Right Side Sensor
Right Side Sensor
Remove the right front wheel and tire assembly.

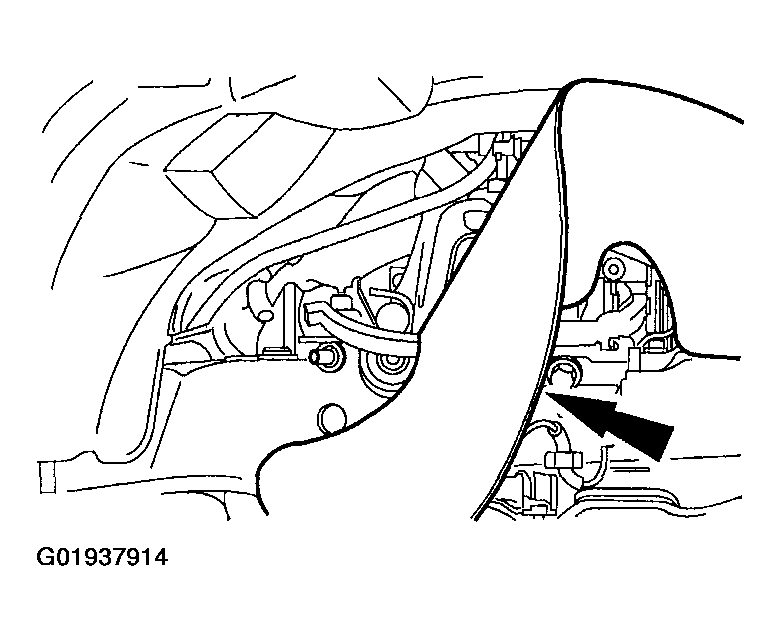

Fig 1: Positioning Aside Right Front Fender Splash Shield
Courtesy of MAZDA MOTORS CORP.
Position aside the right front fender splash shield.
