Removal and Installation

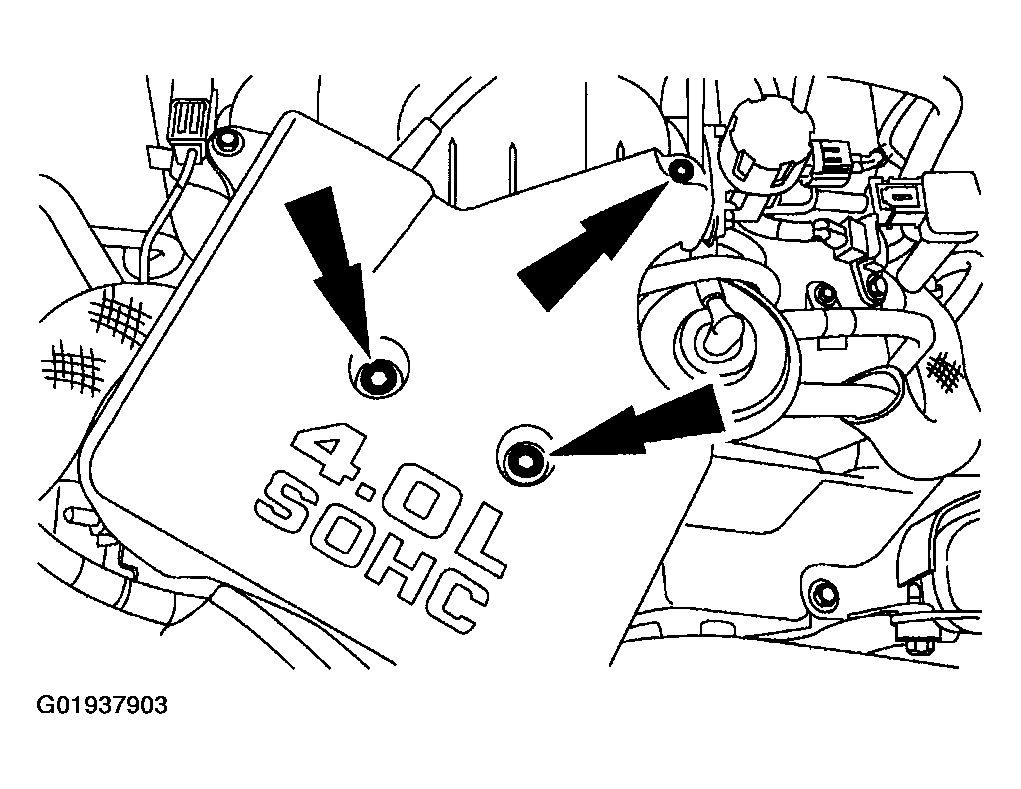

Fig 1: Removing Accelerator Control Snow Shield - 4.0L
G01937903Courtesy of MAZDA MOTORS CORP.
  1. Remove the accelerator control snow shield.

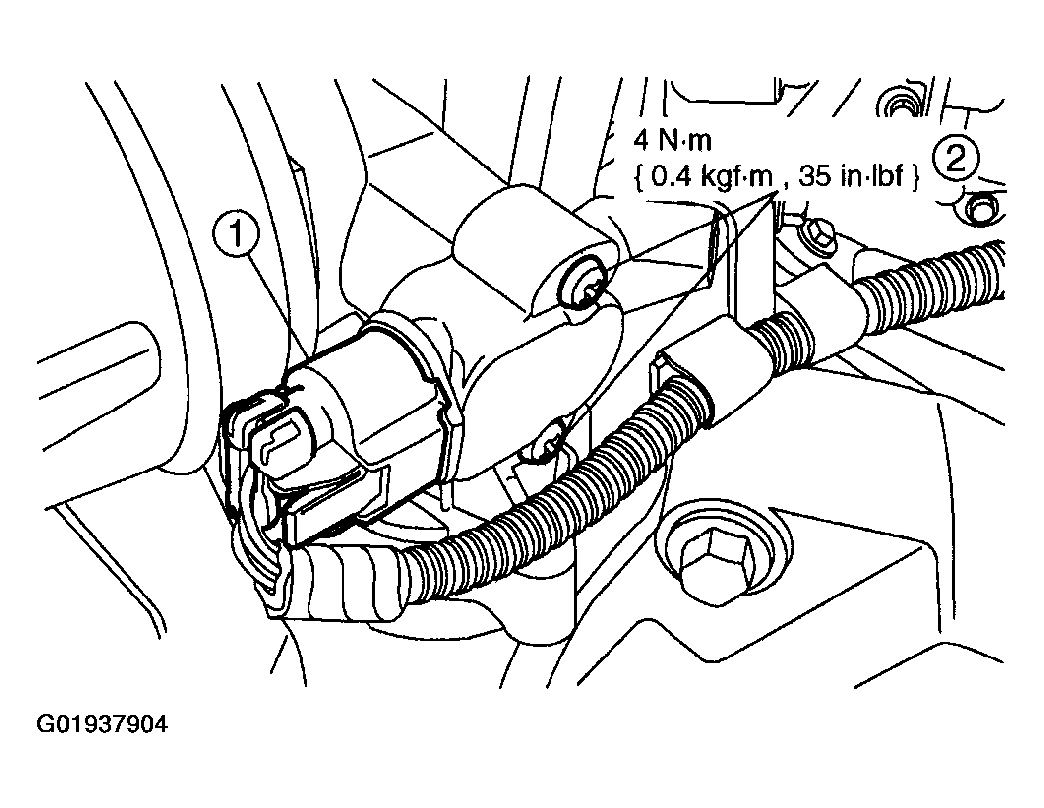

    Fig 2: Removing Throttle Position (TP) Sensor - 4.0L
    G01937904Courtesy of MAZDA MOTORS CORP.
  2. Remove the throttle position (TP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolts and the TP sensor.
  3. To install, reverse the removal procedure.
