Evaporative Emission Symptom Chart: Notes

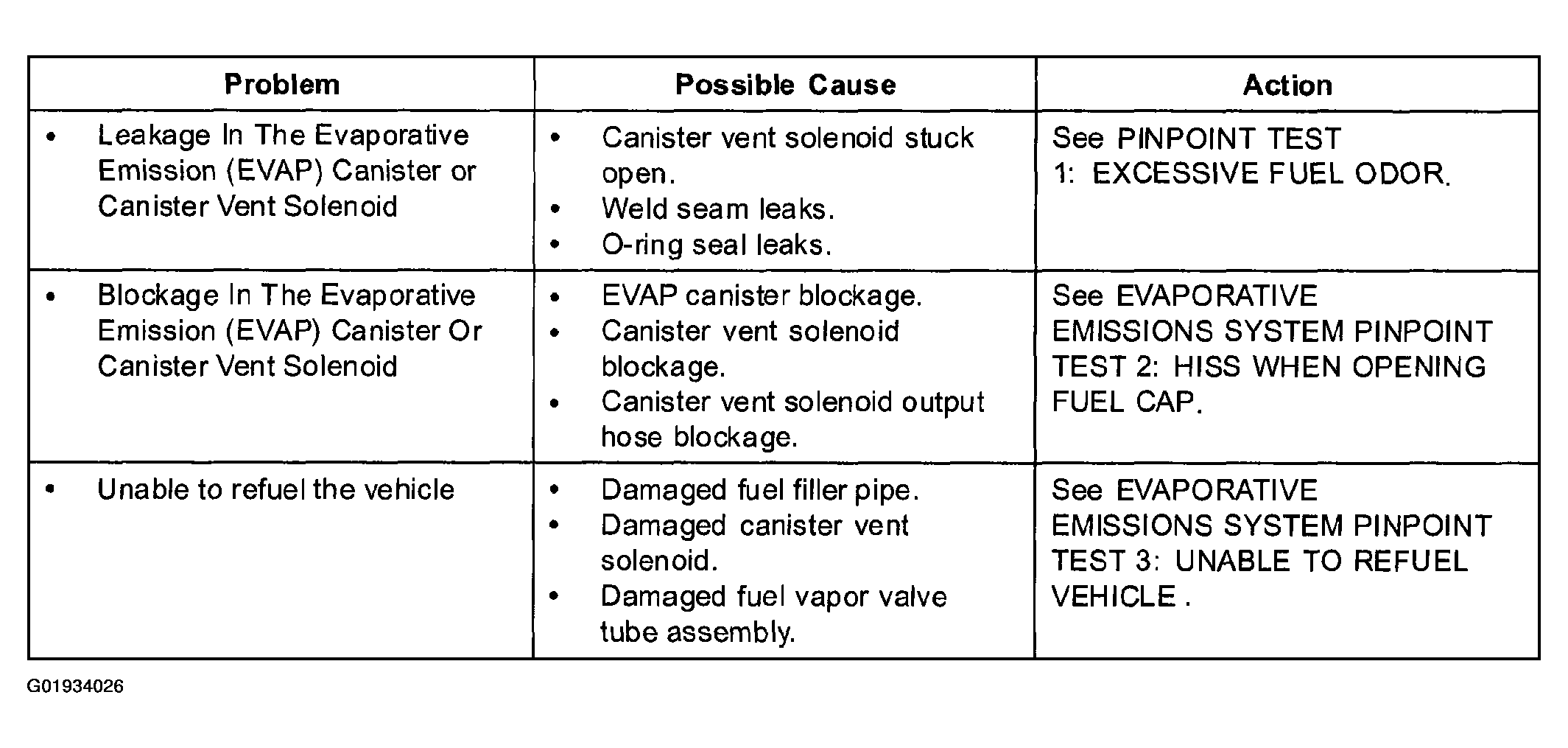

Fig 1: Symptom Troubleshooting Chart- Evaporative Emission Symptom
G01934026Courtesy of MAZDA MOTORS CORP.
