General Pinpoint Test 5: Fuel Delivery System

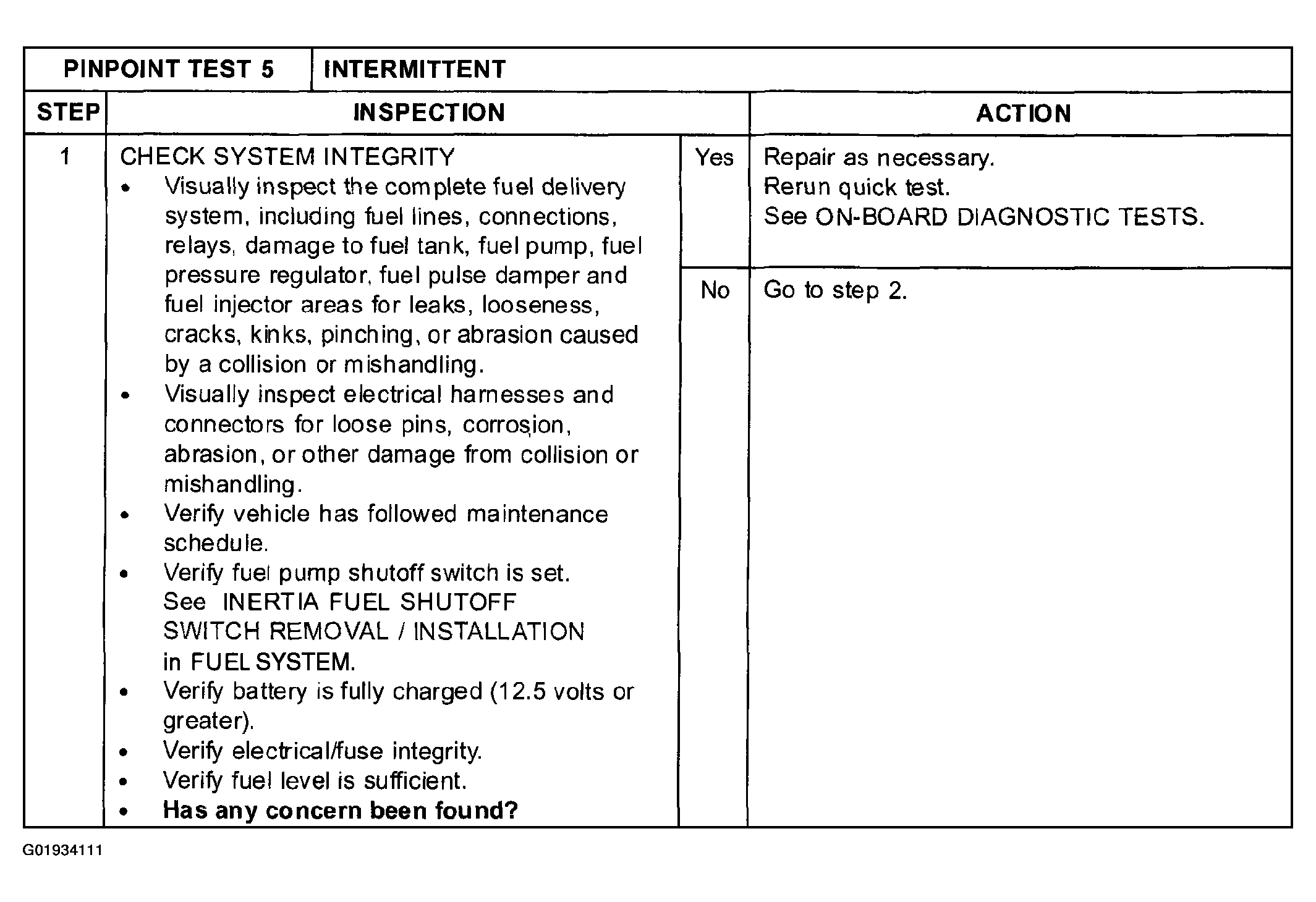

Fig 1: General Pinpoint Test 5: Fuel Delivery System (Step 1)

Courtesy of MAZDA MOTORS CORP.

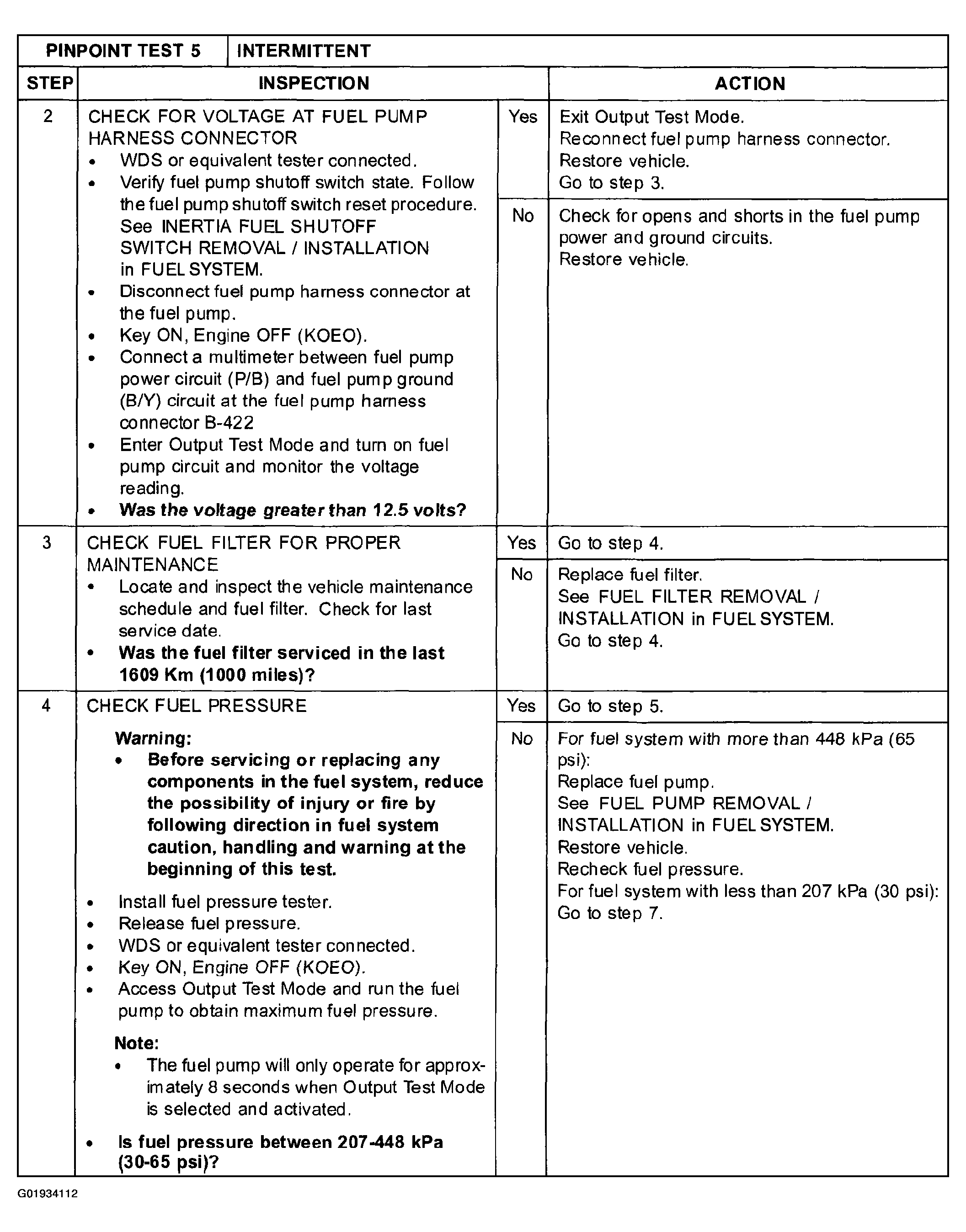

Fig 2: General Pinpoint Test 5: Fuel Delivery System (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.

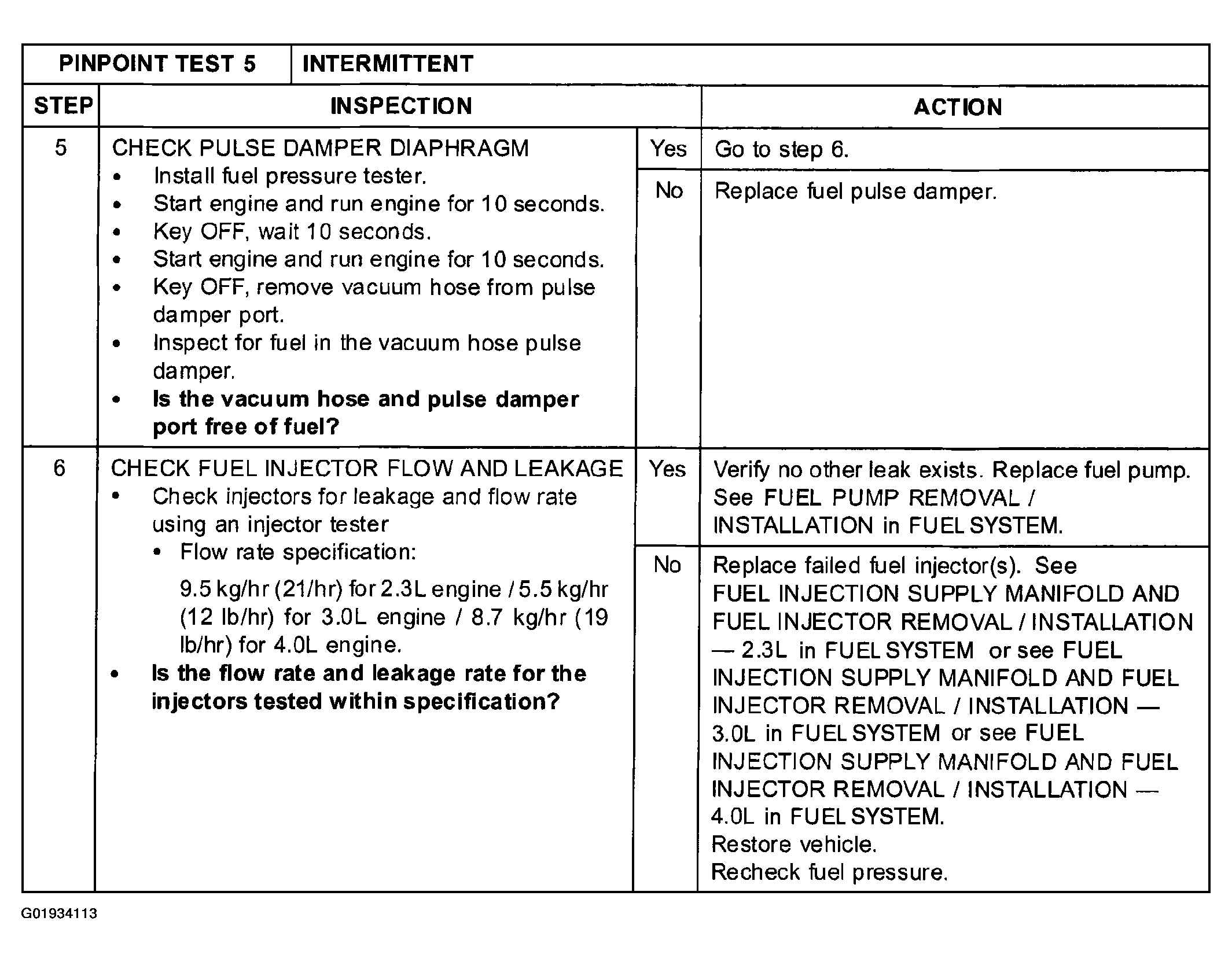

Fig 3: General Pinpoint Test 5: Fuel Delivery System (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

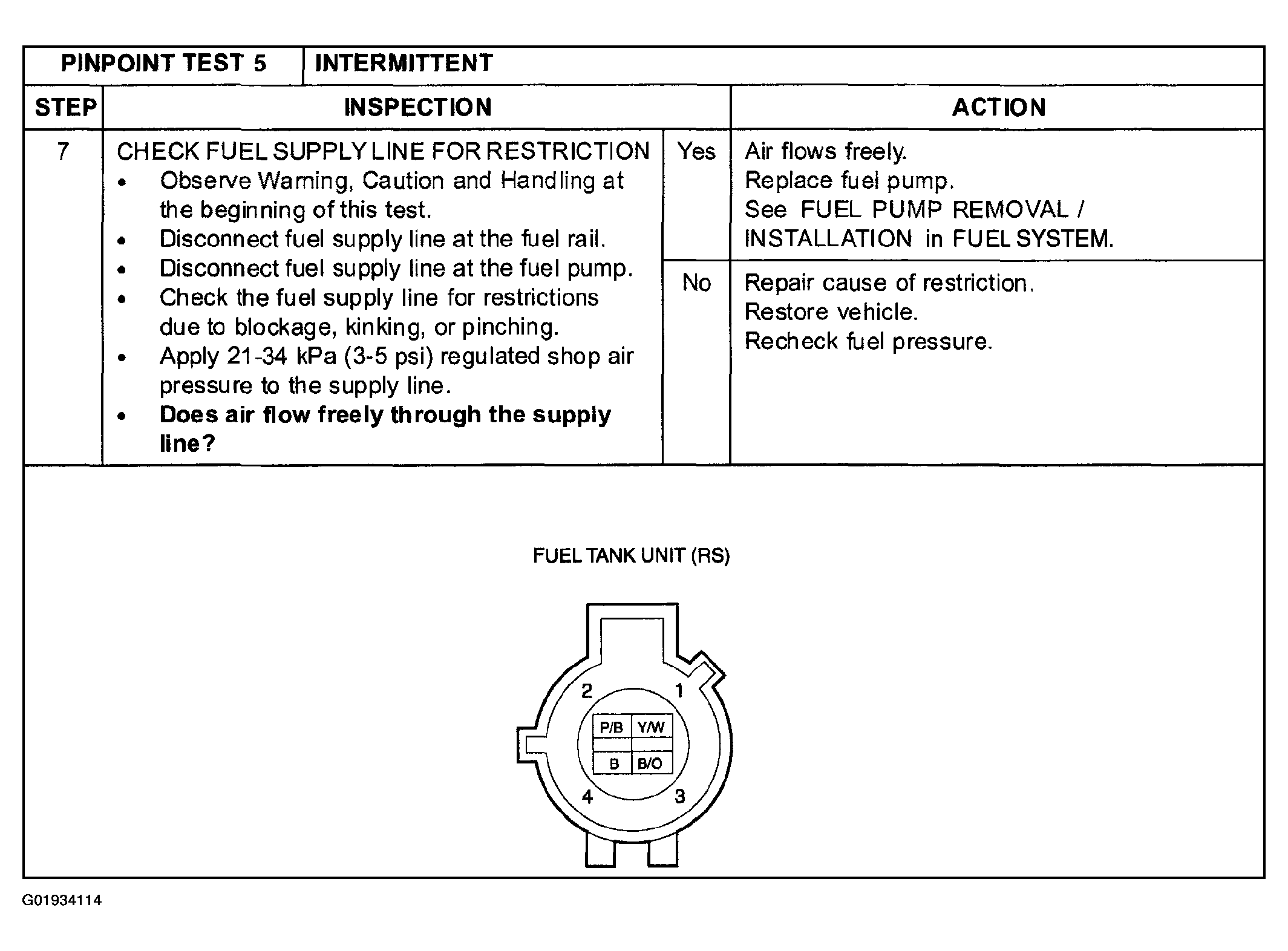

Fig 4: General Pinpoint Test 5: Fuel Delivery System (Step 7)

Courtesy of MAZDA MOTORS CORP.
