DTC P0603 & P1633: Powertrain Control Module (Pcm) Malfunction

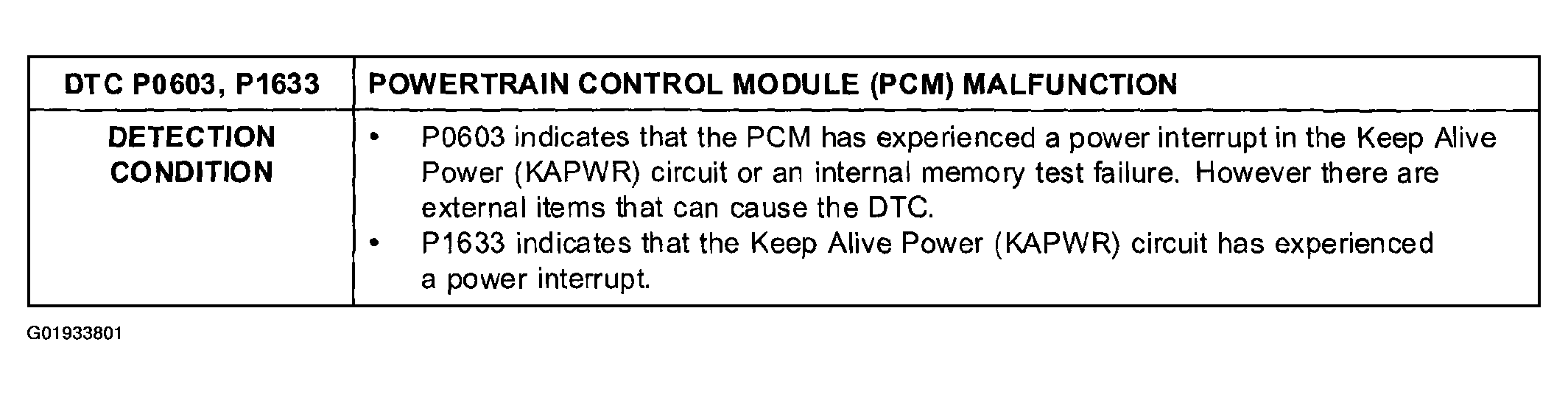

Fig 1: Powertrain Control Module (PCM) Malfunction Detection Condition

Courtesy of MAZDA MOTORS CORP.

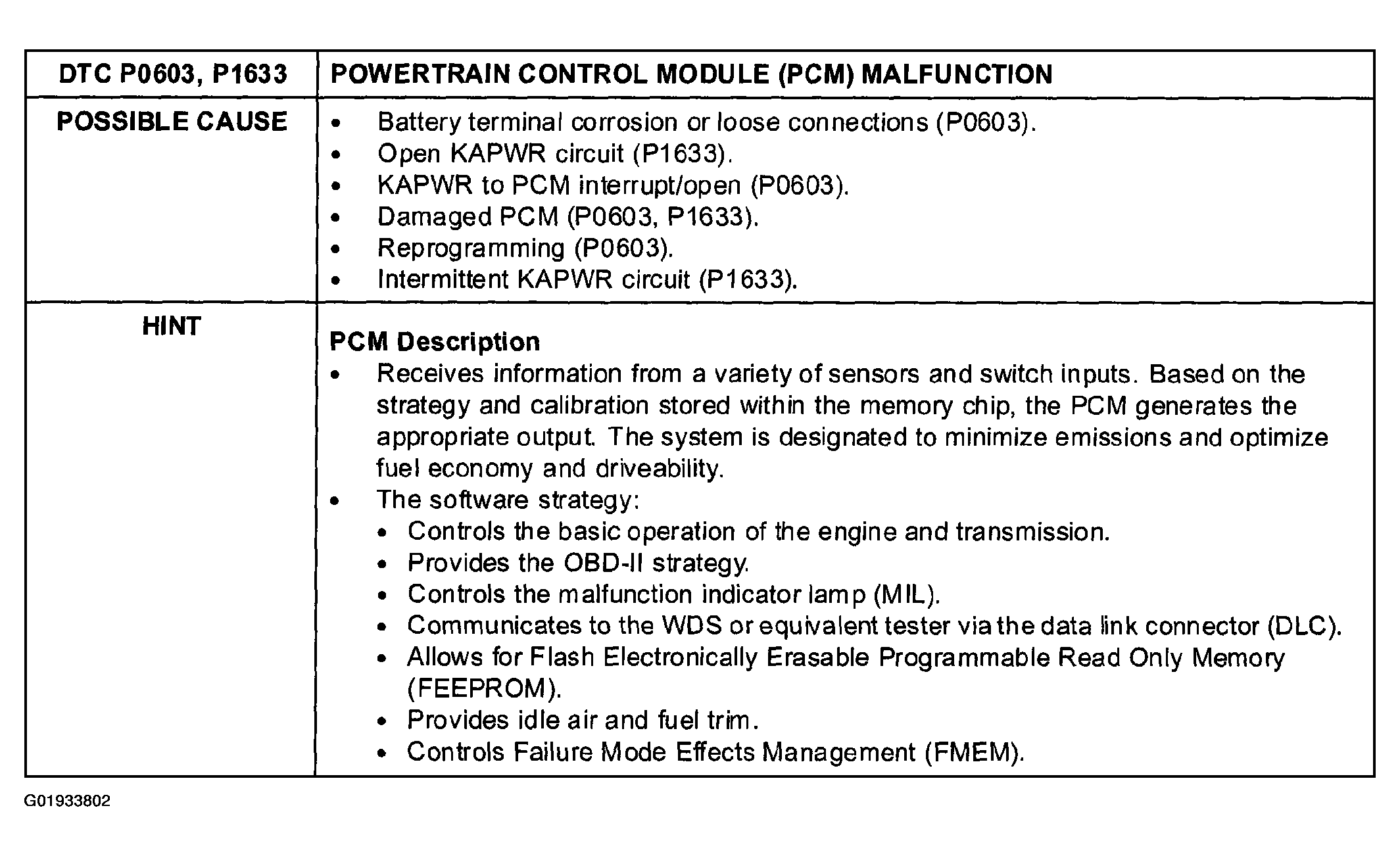

Fig 2: PCM Malfunction possible causes

Courtesy of MAZDA MOTORS CORP.

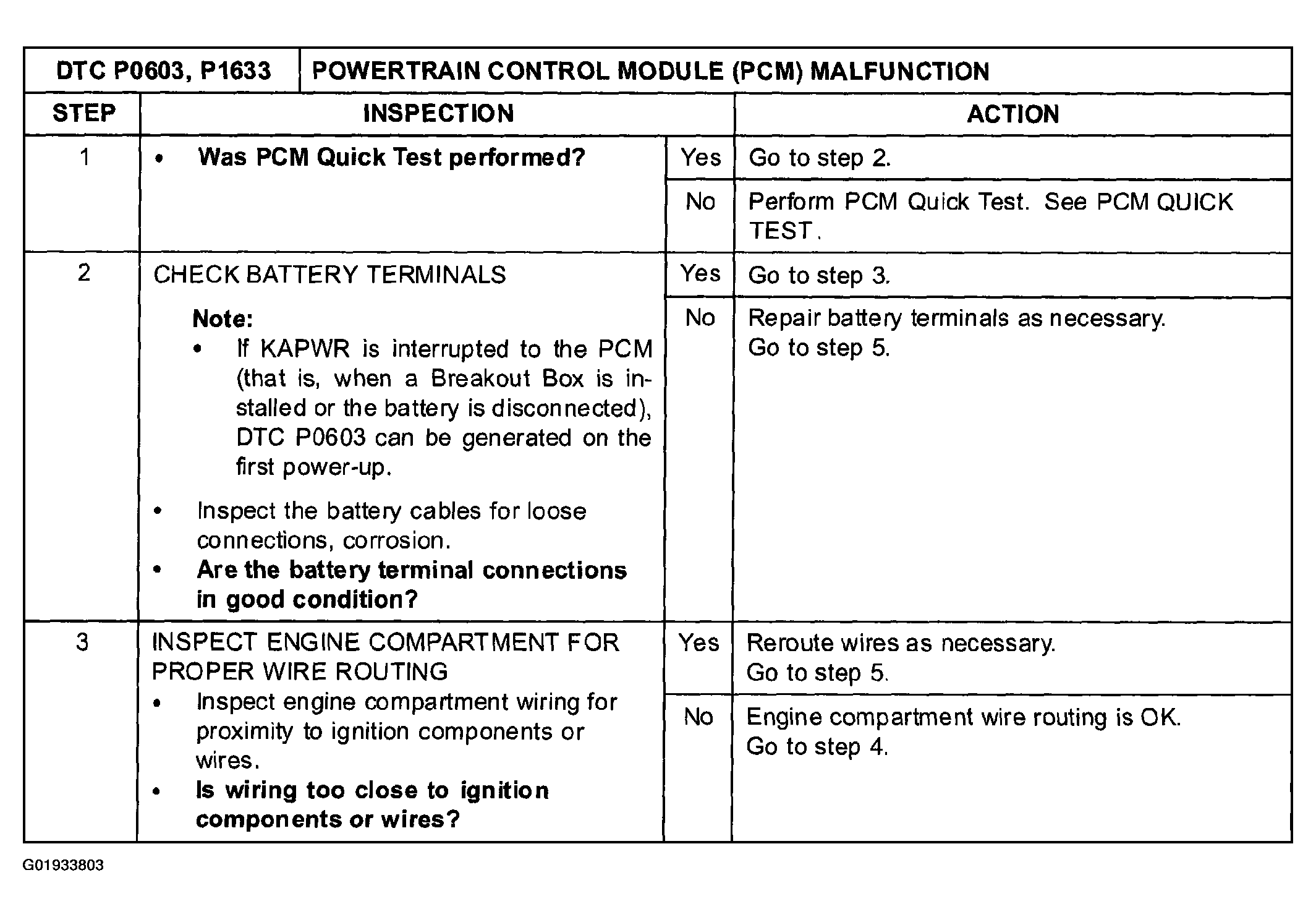

Fig 3: Diagnostic Procedure (DTC P0603 & P1633) (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

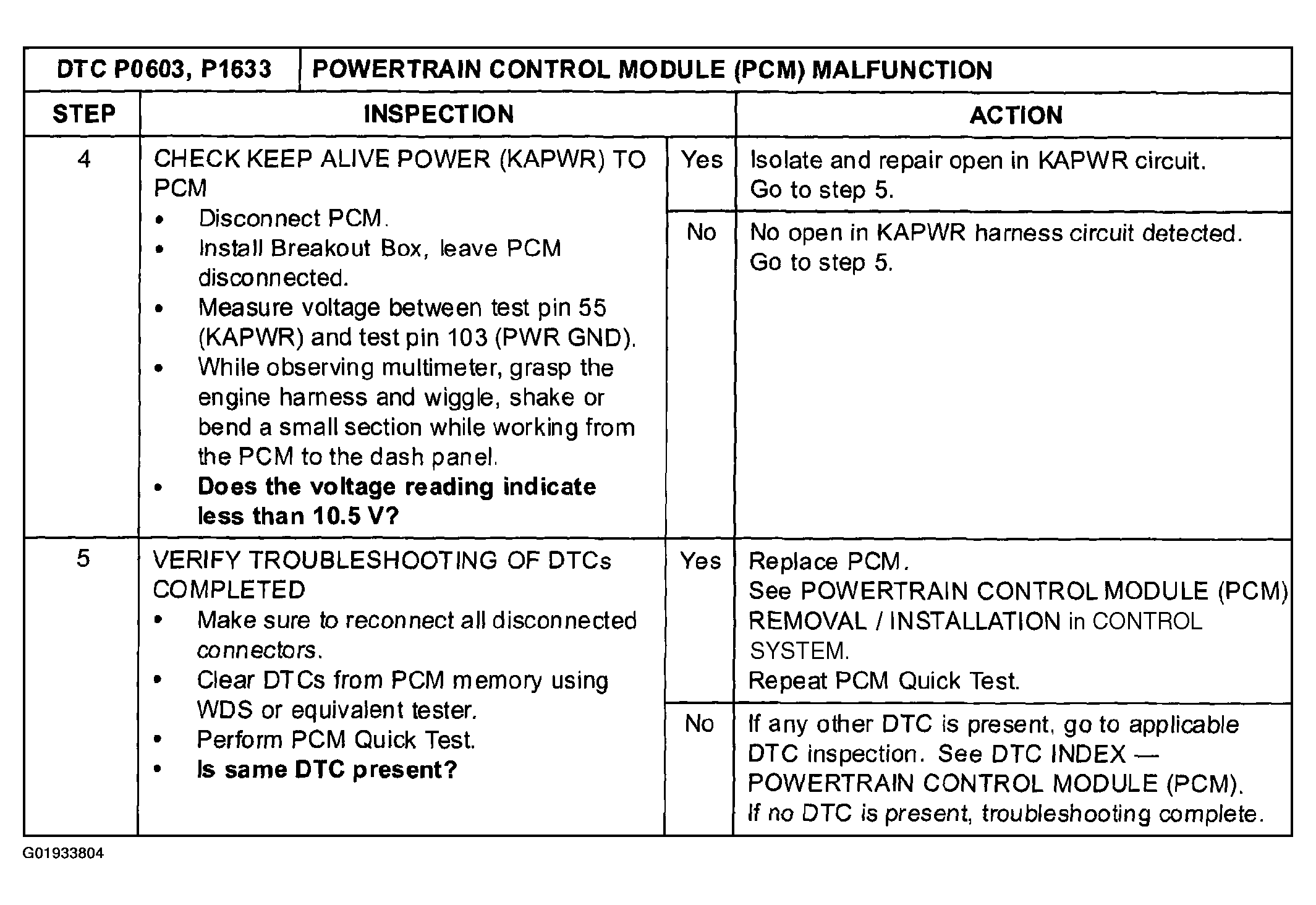

Fig 4: Diagnostic Procedure (DTC P0603 & P1633) (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
