Symptom Troubleshooting Chart: Notes

NOTE:

Self-Test Diagnostics must be performed before proceeding to Symptom Troubleshooting Chart.

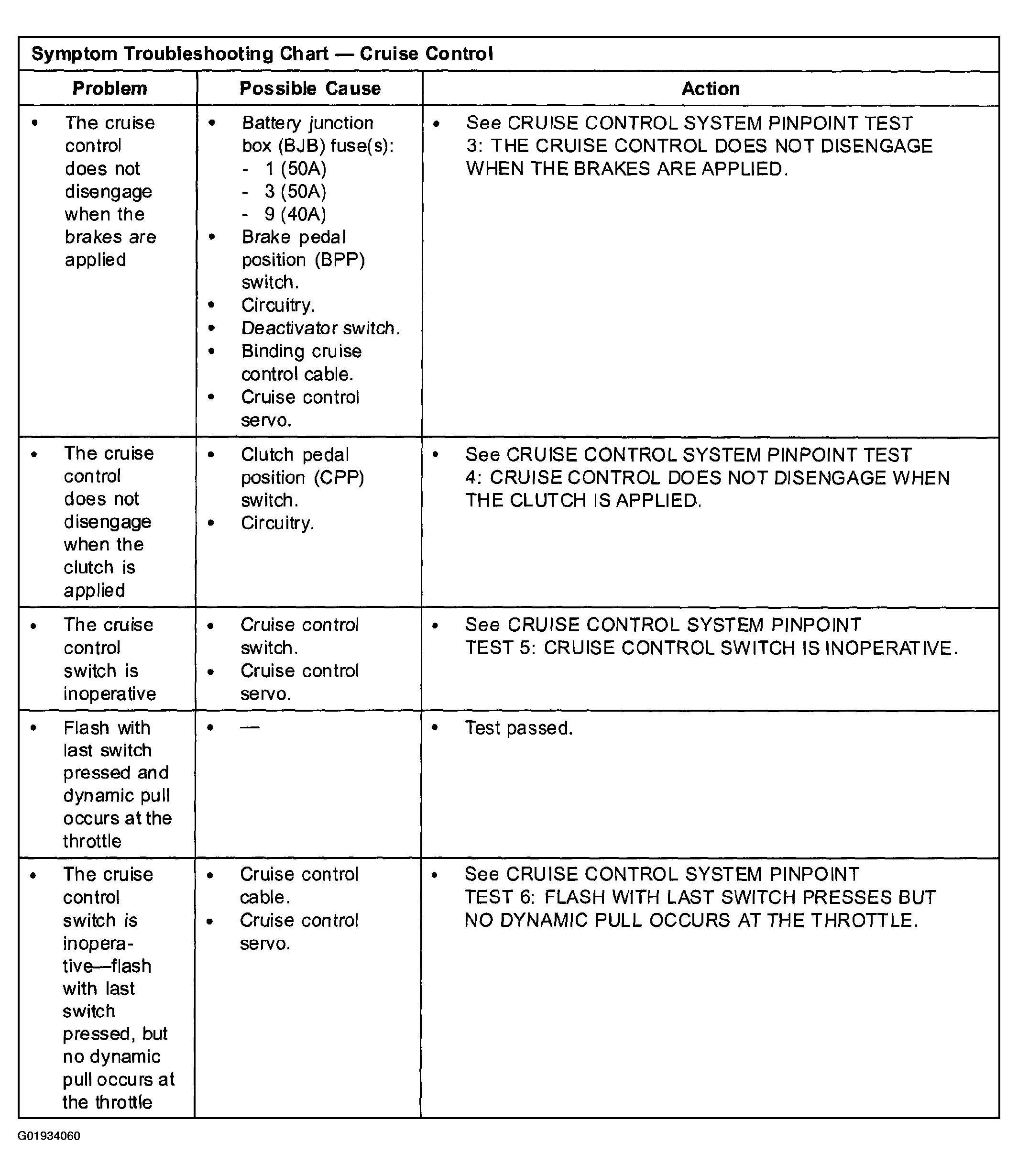

Fig 1: Symptom Troubleshooting Chart - Cruise Control (1 of 3)

Courtesy of MAZDA MOTORS CORP.

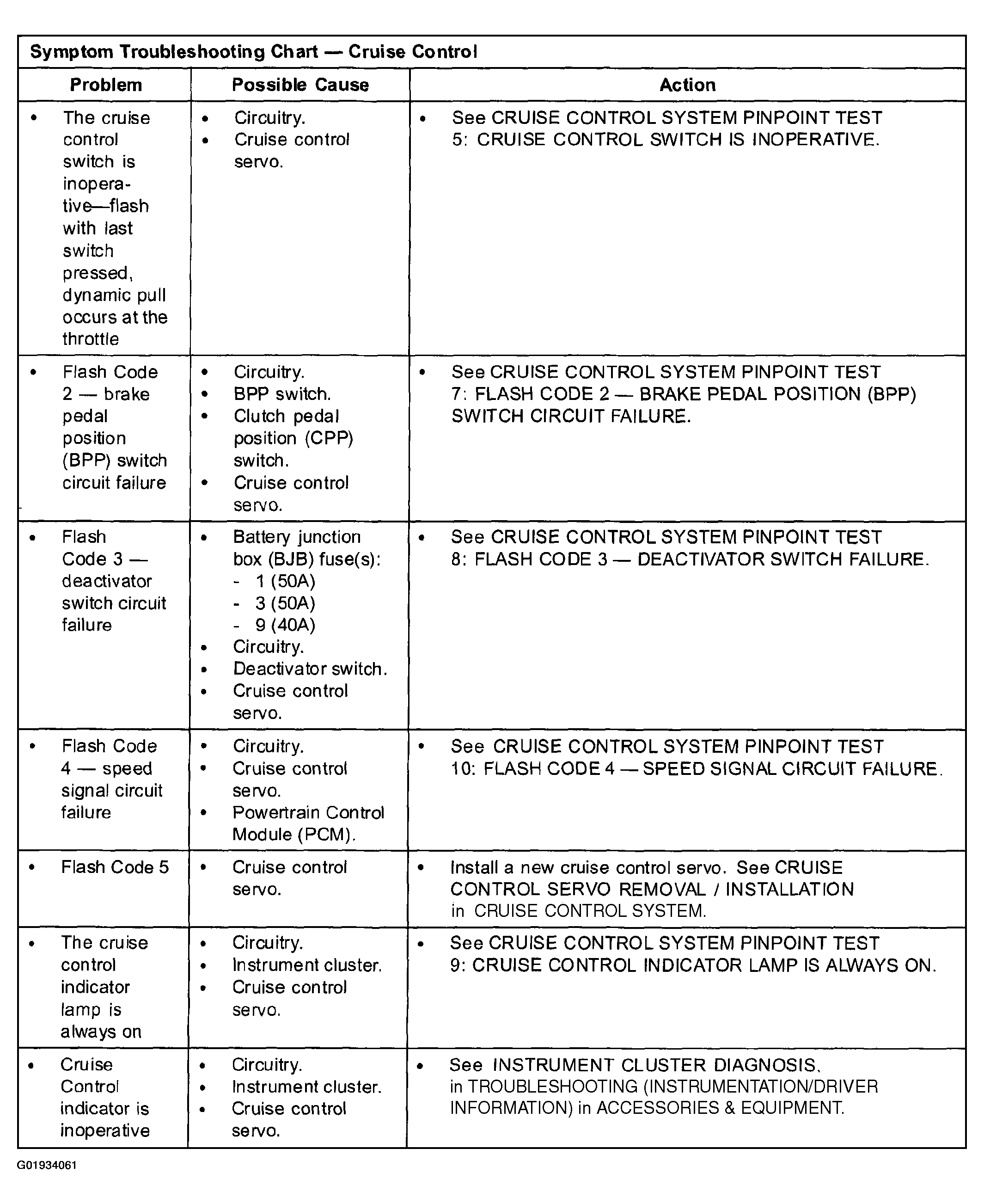

Fig 2: Symptom Troubleshooting Chart - Cruise Control (2 of 3)

Courtesy of MAZDA MOTORS CORP.

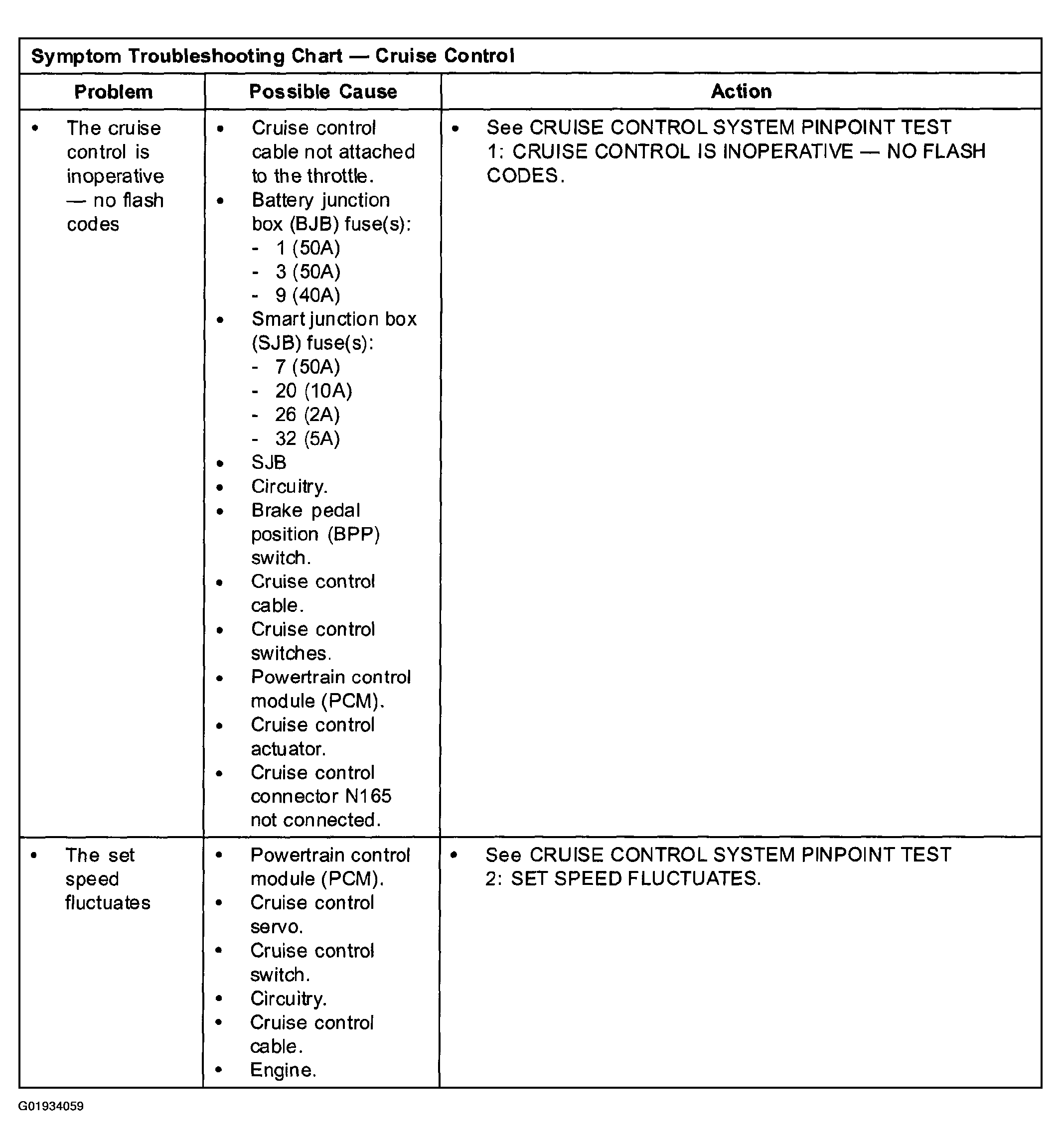

Fig 3: Symptom Troubleshooting Chart - Cruise Control (3 of 3)

Courtesy of MAZDA MOTORS CORP.
