Symptom Troubleshooting Chart - Drive Belt

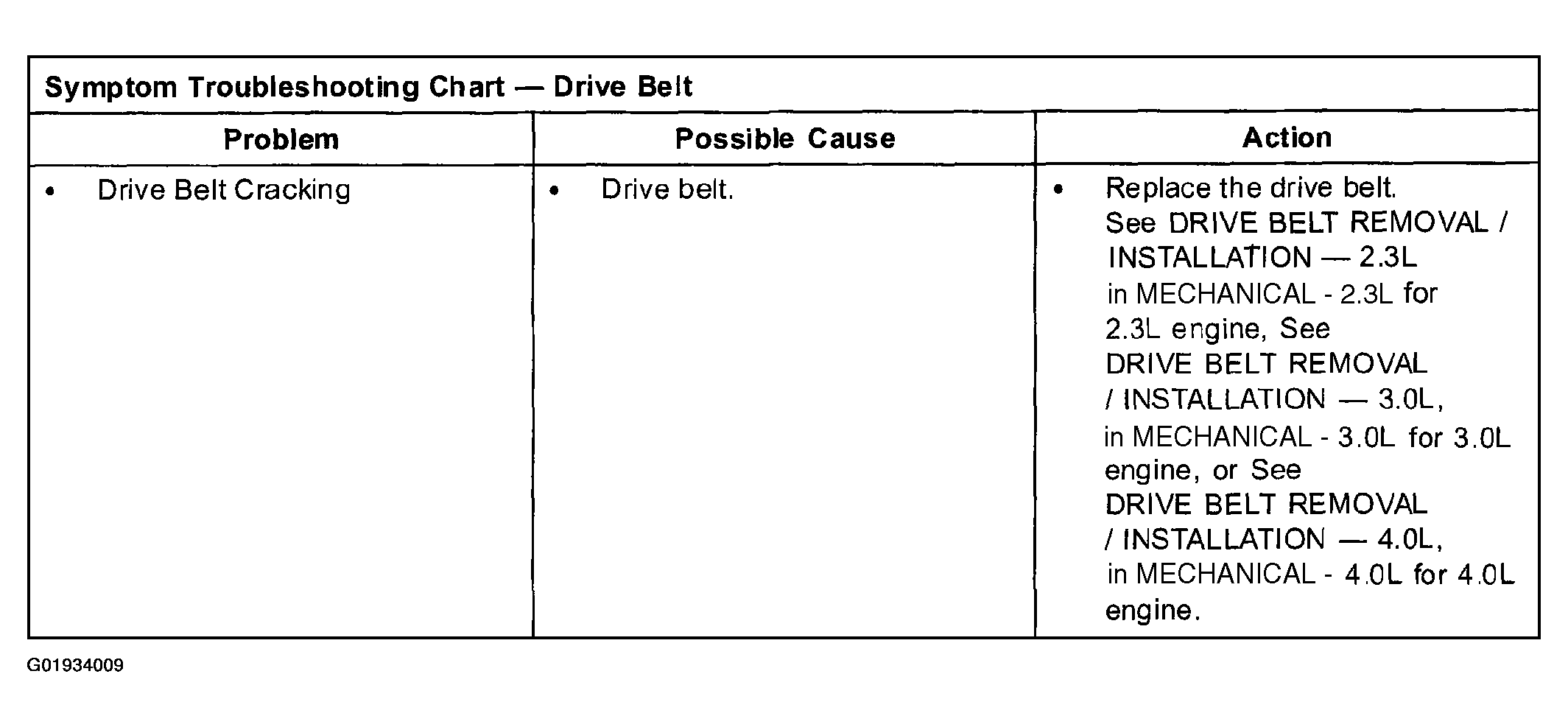

Fig 1: Symptom Troubleshooting Chart - Drive Belt (1 of 3)
G01934009Courtesy of MAZDA MOTORS CORP.

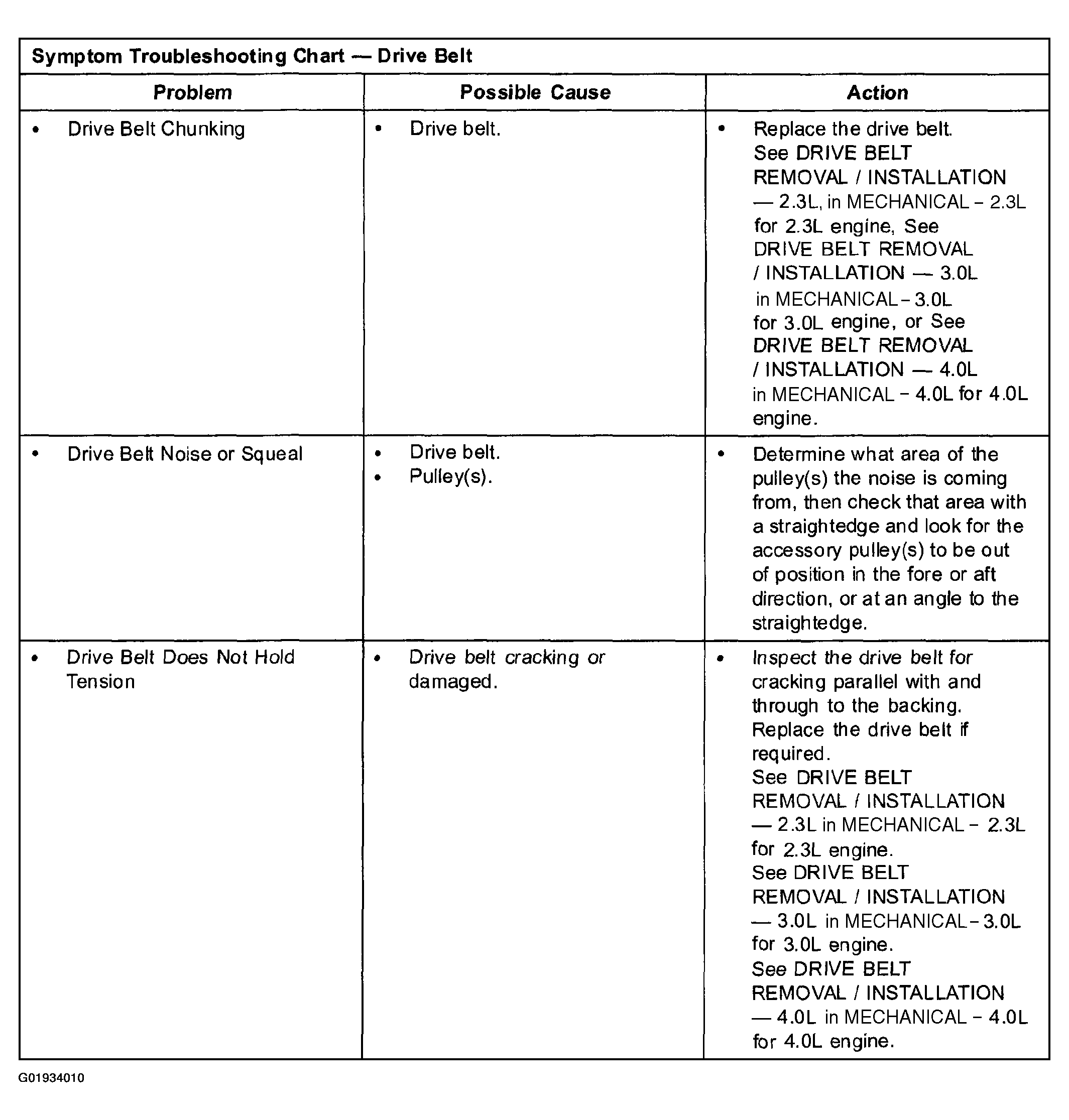

Fig 2: Symptom Troubleshooting Chart - Drive Belt (2 of 3)
G01934010Courtesy of MAZDA MOTORS CORP.

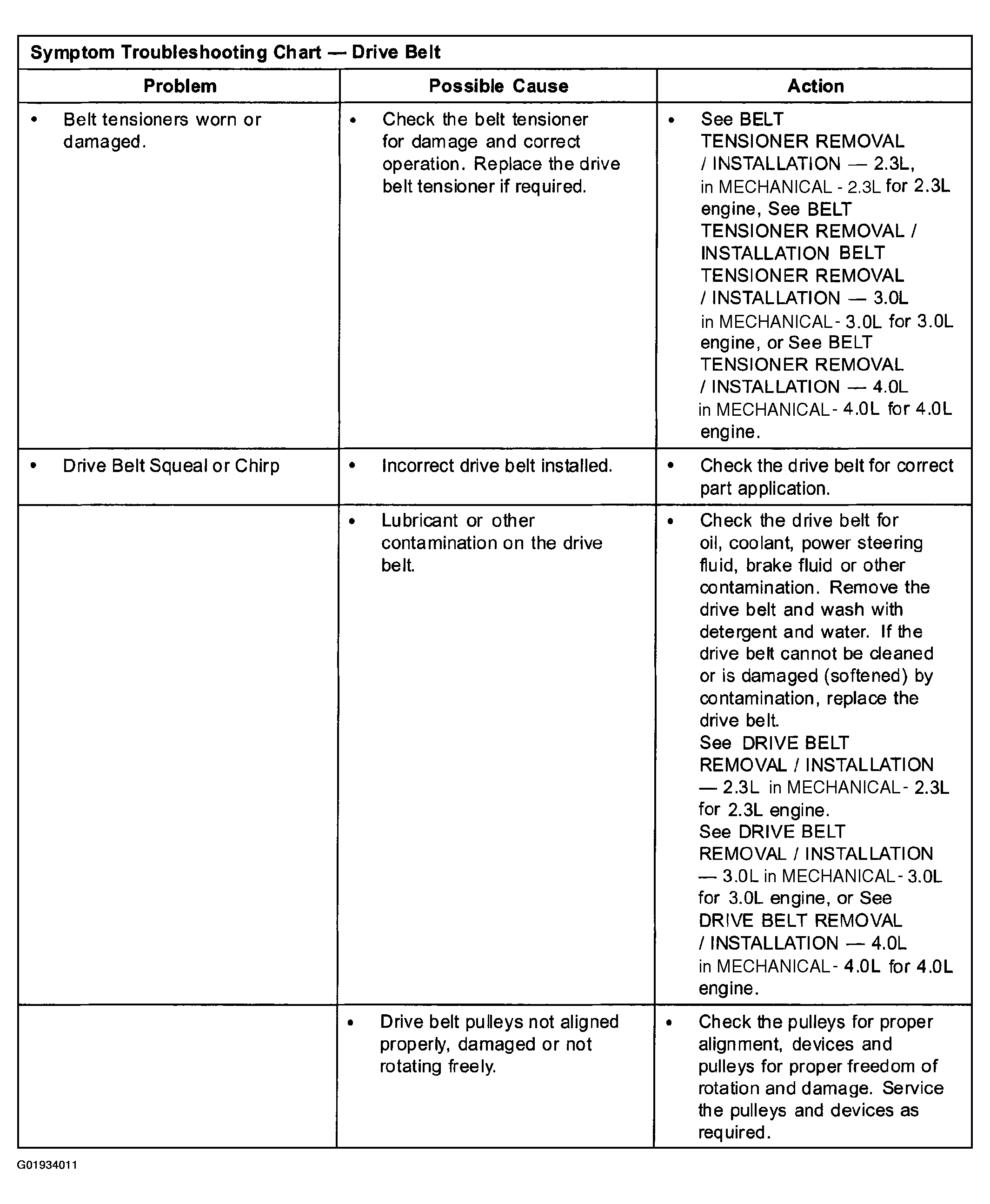

Fig 3: Symptom Troubleshooting Chart - Drive Belt (3 of 3)
G01934011Courtesy of MAZDA MOTORS CORP.
