Cooling System Pinpoint Test 4: Block Heater Does Not Operate Properly
Cooling System Pinpoint Test 4: Block Heater Does Not Operate Properly

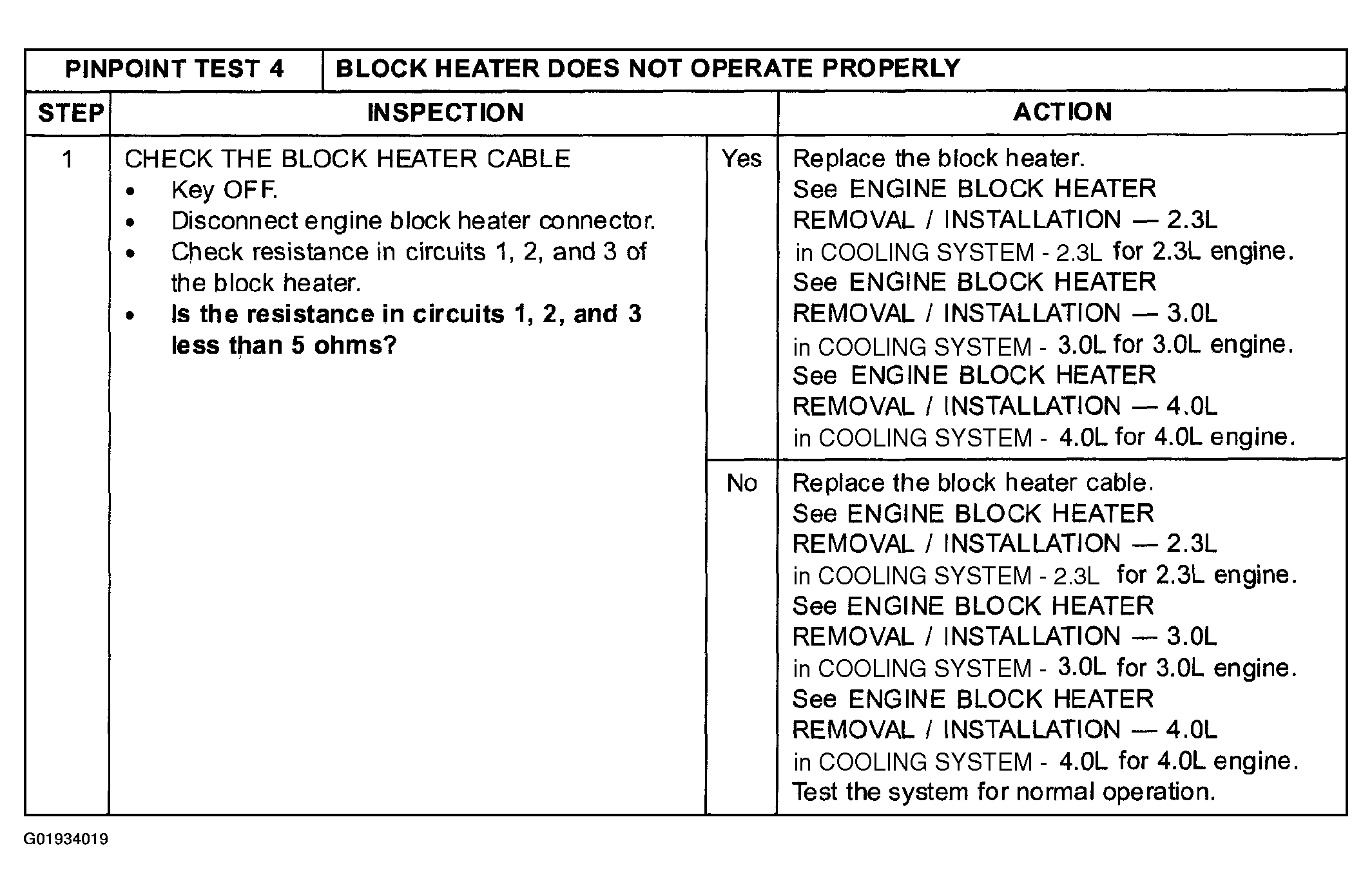

Fig 1: Cooling System Pinpoint Test 4: Block Heater Does Not Operate Properly
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
