A/C Always On And A/C Compressor Runs Continuously

Fig 1: Pinpoint Test 20 -A/C Always On And A/C Compressor Runs Continuously Description

Courtesy of MAZDA MOTORS CORP.

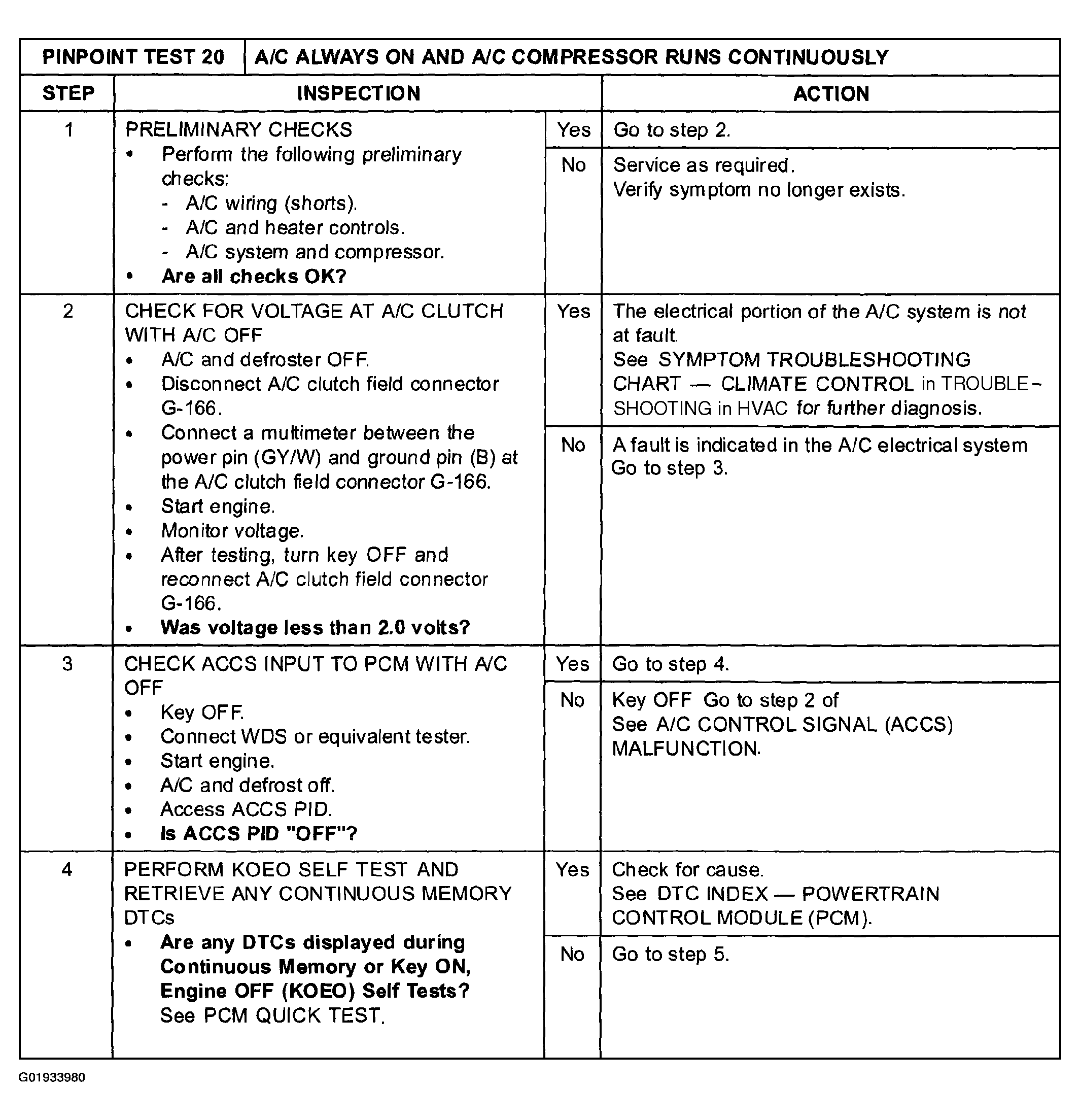

Fig 2: Pinpoint Test 20 -A/C Always On And A/C Compressor Runs Continuously (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

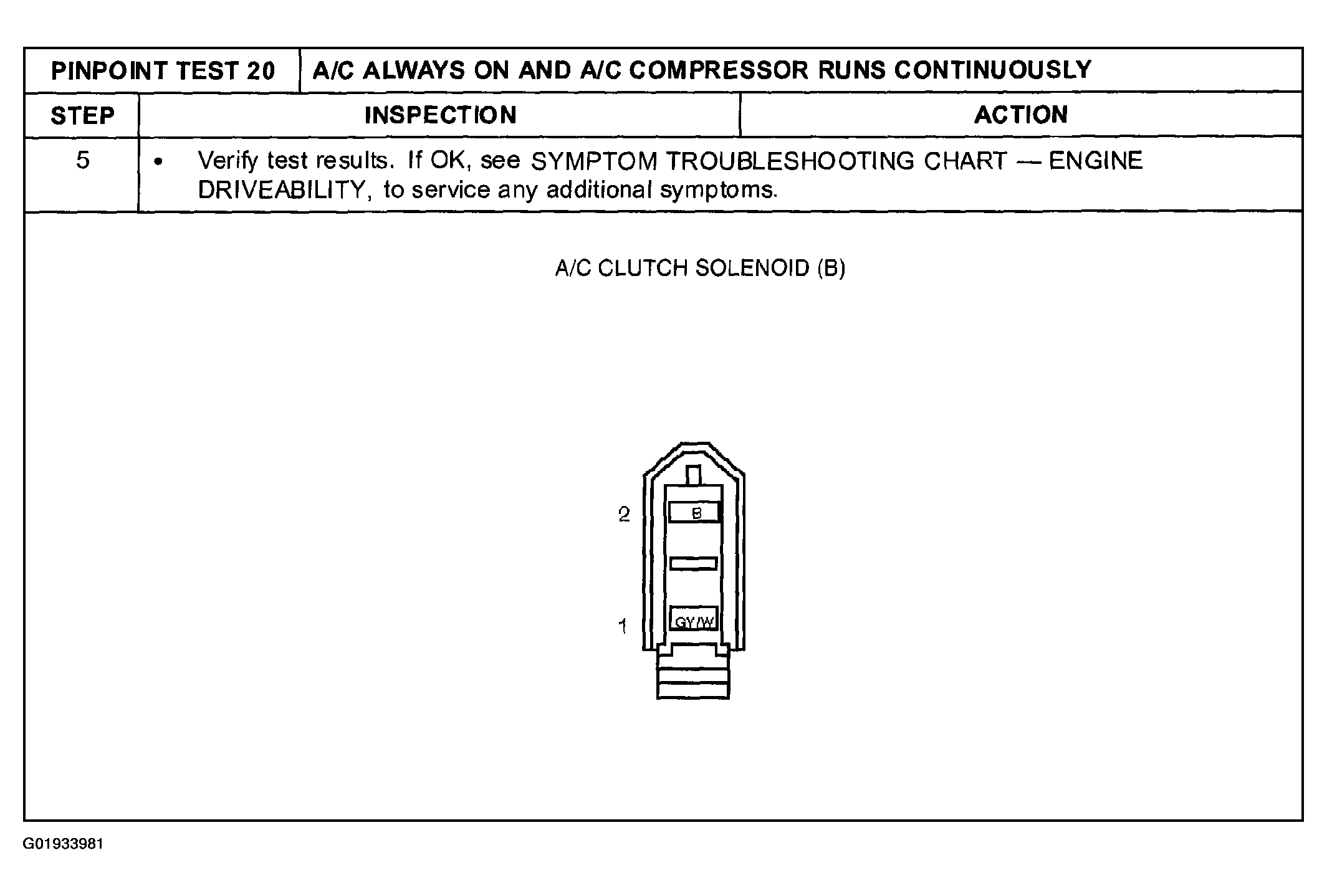

Fig 3: Pinpoint Test 20 -A/C Always On And A/C Compressor Runs Continuously (Step 5)

Courtesy of MAZDA MOTORS CORP.
