All Supported On Board System Readiness Tests Not Completed

Fig 1: Pinpoint Test 24 - All Supported On Board System Readiness Tests Not Completed Description

Courtesy of MAZDA MOTORS CORP.

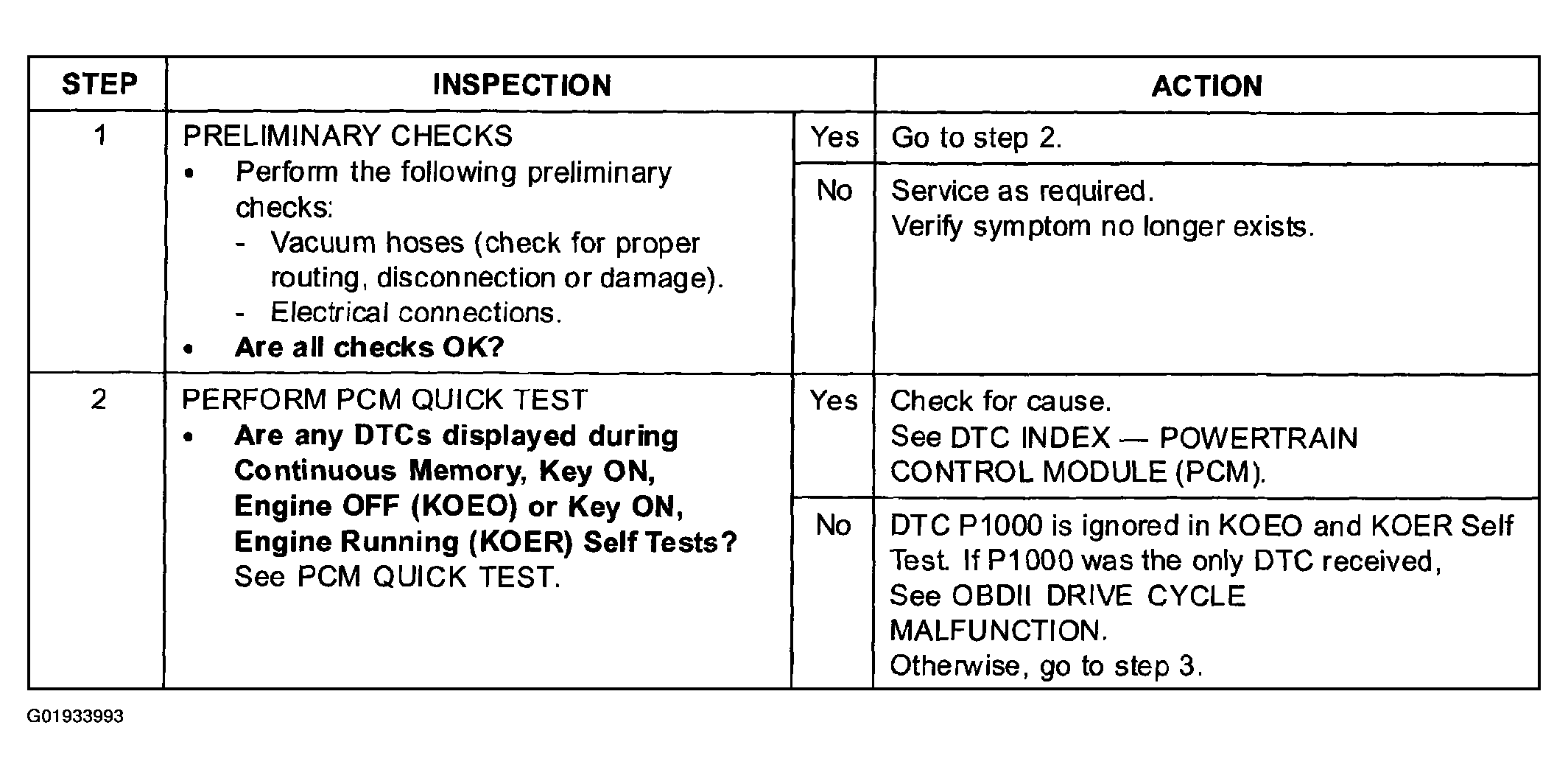

Fig 2: Pinpoint Test 24 - All Supported On Board System Readiness Tests Not Completed (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

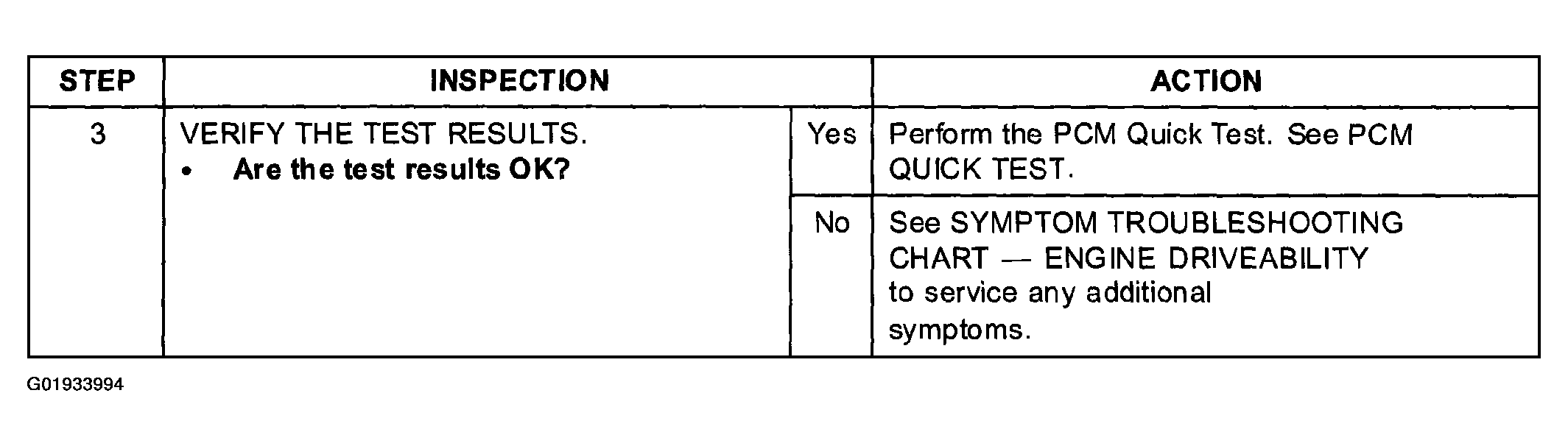

Fig 3: Pinpoint Test 24 - All Supported On Board System Readiness Tests Not Completed (Step 3)

Courtesy of MAZDA MOTORS CORP.
