Engine Noise

Fig 1: Pinpoint Test 18 - Engine Noise Description
G01933974Courtesy of MAZDA MOTORS CORP.

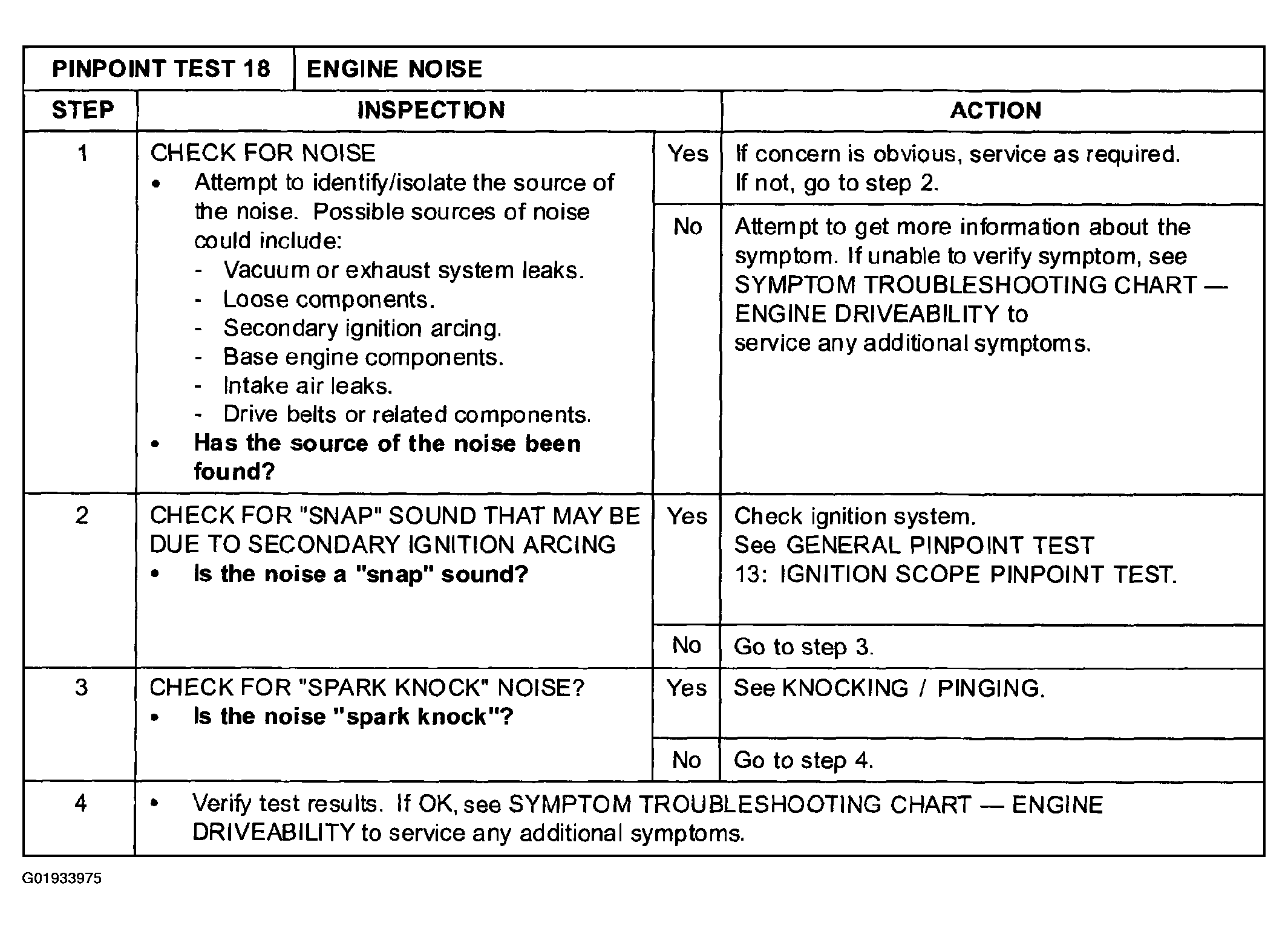

Fig 2: Pinpoint Test 18 - Engine Noise (Steps 1-4)
G01933975Courtesy of MAZDA MOTORS CORP.
