Symptom Troubleshooting Chart Engine DRIVEABILITY
›
Exterior Lighting Systems
Exterior Lighting Systems
Fig 1: Pinpoint Test 22 - Exterior Lighting Systems Description
Courtesy of MAZDA MOTORS CORP.

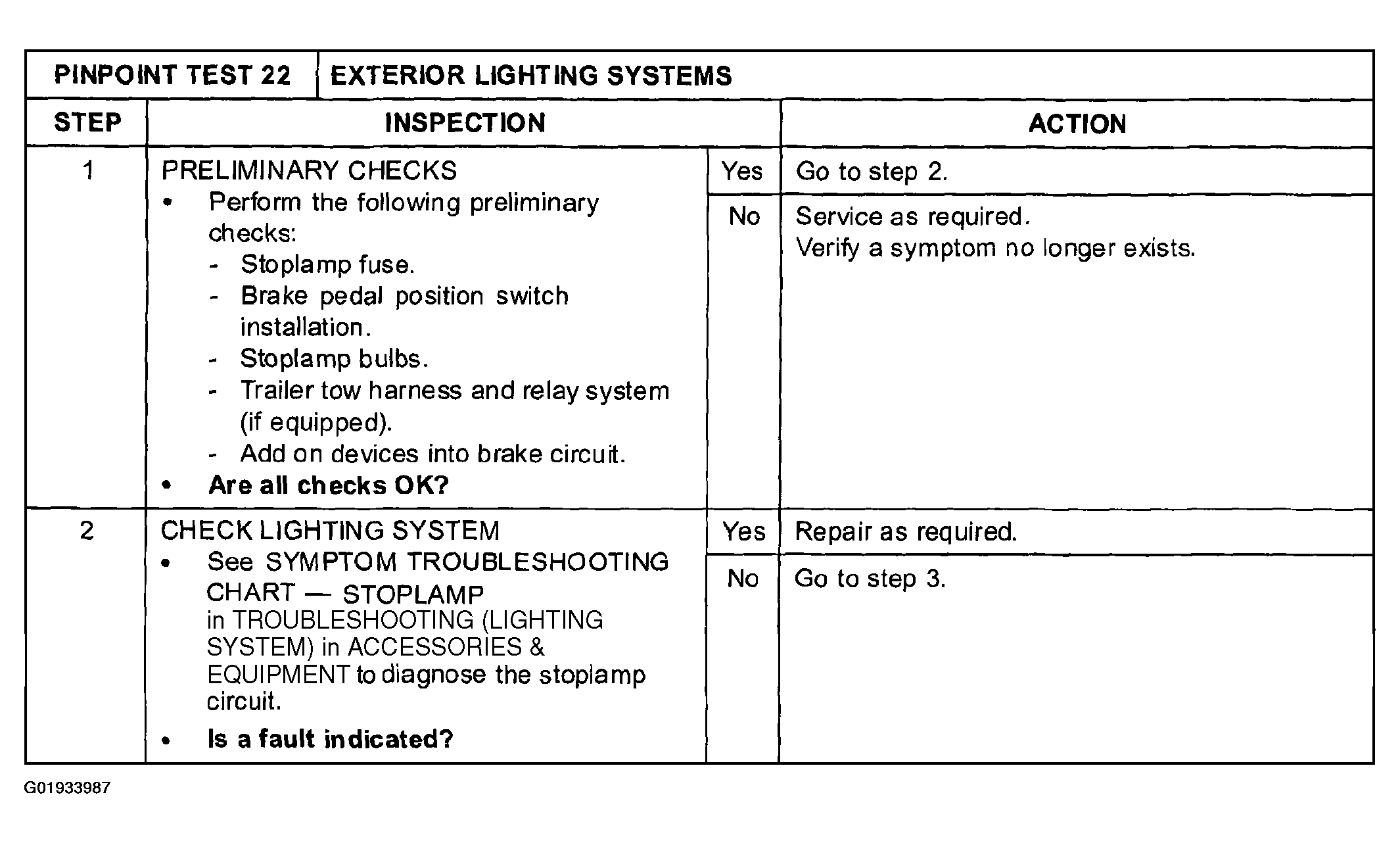

Fig 2: Pinpoint Test 22 - Exterior Lighting Systems (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

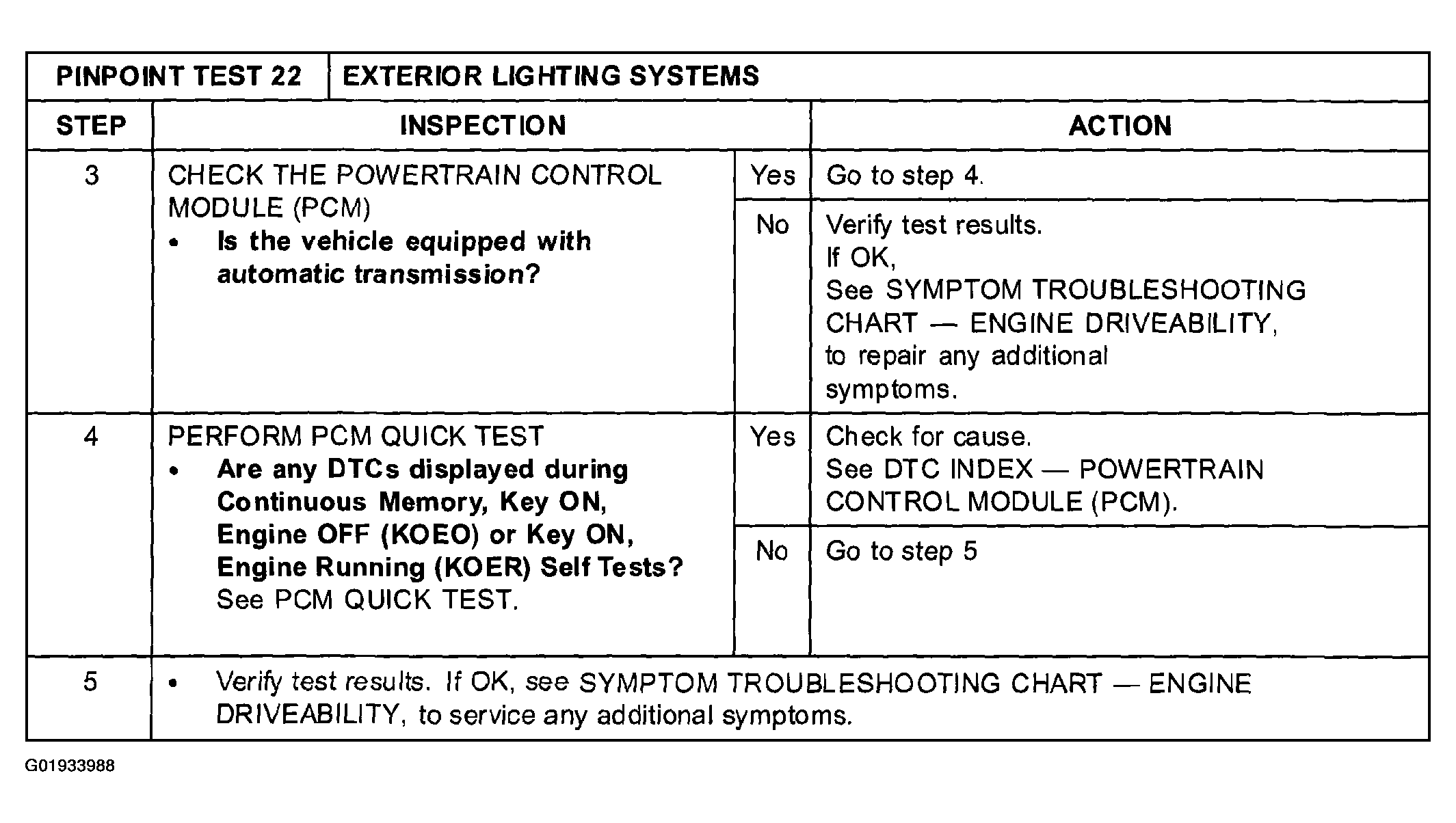

Fig 3: Pinpoint Test 22 - Exterior Lighting Systems (Steps 3-5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
