Symptom Troubleshooting [Engine]
›
Symptom Troubleshooting Chart Engine DRIVEABILITY
›
Fuel Pump Always Runs
Fuel Pump Always Runs
Fig 1: Pinpoint Test 25 - Fuel Pump Always Runs Description
Courtesy of MAZDA MOTORS CORP.

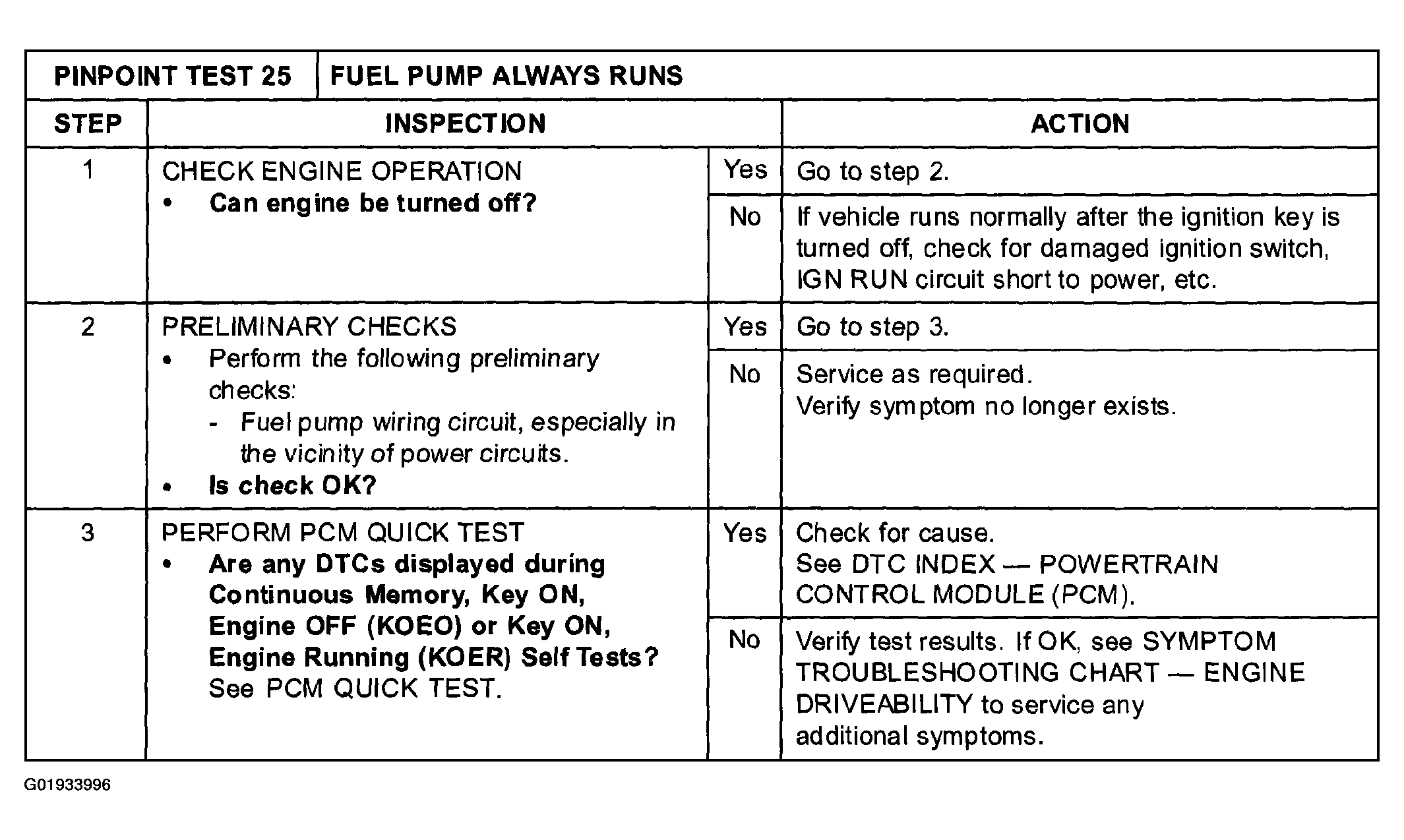

Fig 2: Pinpoint Test 25 - Fuel Pump Always Runs (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
