Symptom Troubleshooting [Engine]
›
Symptom Troubleshooting Chart-Powertrain Control Module (Pcm)
Symptom Troubleshooting Chart-Powertrain Control Module (Pcm)

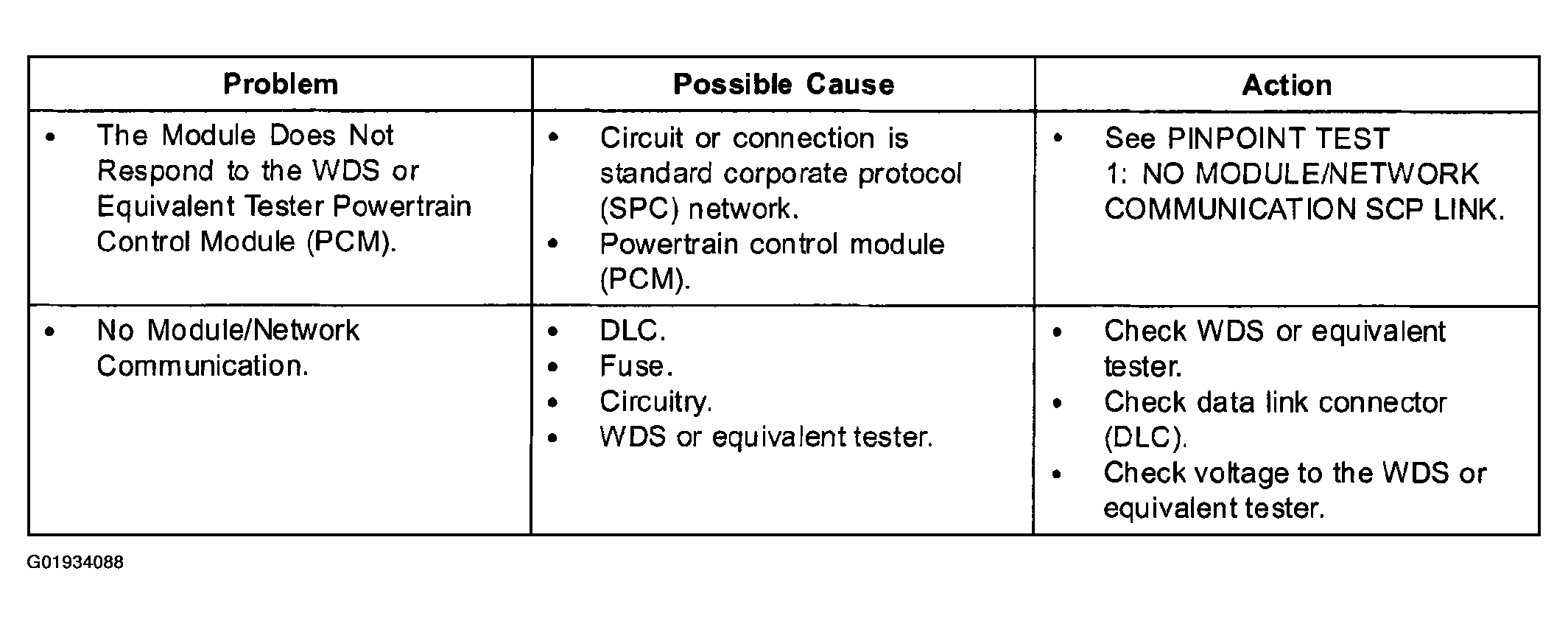

Fig 1: Symptom Troubleshooting Chart - Powertrain Control Module
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
