Outside Rear Door Handle Removal/Installation

NOTE:

Use a drift punch to remove the steel centers and a 6.35mm (1/4 in) diameter drill bit to remove the rivets.

Remove the steel centers (1) from the rivets (2).
Drill out the rivets (2).
Remove the outside door handle (3).

Fig 1: Locating Door Handle & Rivets
Courtesy of MAZDA MOTORS CORP.
Disconnect the locking clips (1).
Disconnect the cable conduit (2) from the outside door handle.

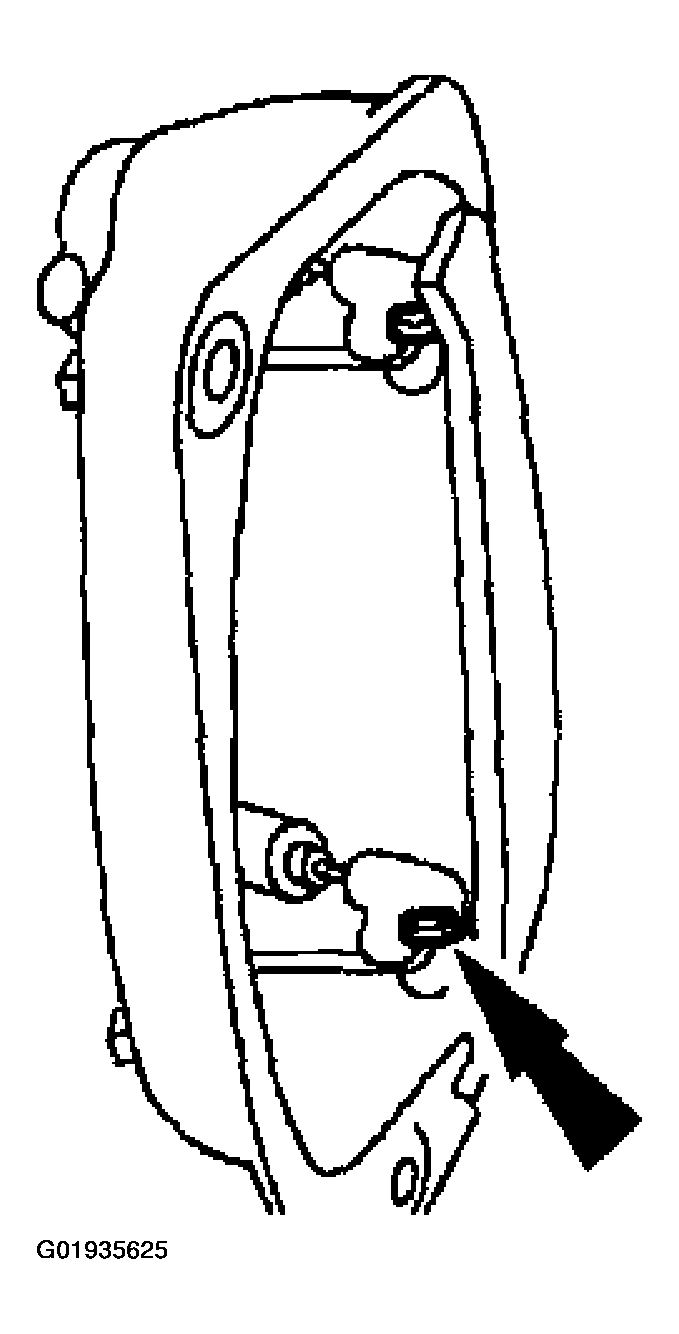

Fig 2: Disconnecting Cable Conduit From Outside Door Handle
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Hold the handle open while removing the barrel ends of the cable.
Disconnect the cables from the outside door handle.

Fig 3: Disconnecting Cables From Outside Door Handle
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
